AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	GE0481	PANEL ASSEMBLY	1
?	VG7043	RELAY (SEE INDEX)	2	64037
?	PB4255	MODULE, SUPPRESSION	2
?	VE7355	MODULE, DUAL DIODE	1
?	GE0151	BOARD, PRINTED WIRE	1
?	GE0483	DIODE, POWER BLOCK	1
?	GE0514	CAPACITOR	1
?	GE0204	INSULATOR W/STUD - 4 1/8"	1
?	VE4519	WASHER, NARROW - 1/2"	-1
?	VE4699	LOCKWASHER - 1/2"	-1
?	VE4698	NUT - 1/2" - 13NC	-1
?	GE0191	BAR, BUS	1
?	VE4999	CAPSCREW - 1/2" - 13NC X 2"	5
?	GE0511	BAR, BUS	1
?	GE0187	BAR, BUS	1
?	GE0192	BAR, BUS	1
?	GE0203	INSULATOR W/STUD - 3 7/8"	-1
?	VJ6586	CAPSCREW - #10 - 32NF X 3/4"	-1
?	VE4655	FLAT WASHER - #10	-1
?	VE4601	LOCKWASHER - #10	-1
?	PB4267	PANEL	2
?	GE0182	PANEL	2
?	GE0189	BAR, BUS	1
?	GE0755	SUPPLY, AC DRIVE POWER	1
?	VE4648	FLAT WASHER - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	VE5013	NUT - 5/16" - 18NC	-1
?	GE0210	SENSOR, AC - DC	1
?	VS8193	BOARD, TERMINAL (SEE FIG 64033)	3	64033
?	SF2755	NUT - #10 - 32NF	-1
?	GE0216	BRACKET, LEM	1
?	GE0196	BAR, BUS	1
?	GE0259	CAPSCREW - 1/2" - 13NC X 2 1/8"	-1
?	GE0593	PLUG	1
?	GE0240	GROMMET, RUBBER	13
?	VE4641	CAPSCREW - 3/8" - 16NC X 1 1/4"	-1
?	VE4516	WASHER, NARROW - 3/8"	-1
?	VE4515	FLAT WASHER - 3/8"	-1
?	GE0195	BAR, BUS	1
?	BF0699	CAPSCREW - 5/16" - 18NC X 3/4"	-1
?	GE0188	BAR, BUS	1
?	GE0175	LAMP, SERVICE	1
?	PB3348	INSULATOR	1
?	GE0258	CAPSCREW - 1/2" - 13NC X 1 3/8"	1
?	GE0193	BOARD, TERMINAL (SEE FIG 64033)	1	64033
?	VE6118	PANEL, VOLTAGE MEASURING (SEE INDEX)	2	64043
?	SP8417	FLAT WASHER - 1/4"	-1
?	DC3584	LOCKWASHER - 1/4"	-1
?	TD1549	NUT - 1/4" - 20NC	-1
?		NOTE: NS = NOT SHOWN	-1
?	VP9550	STRIP, CONNECTION (L-SHAPED) - 1 29/32"	58
?	BF3912	STRIP, CONNECTION - 1 7/8"	4

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

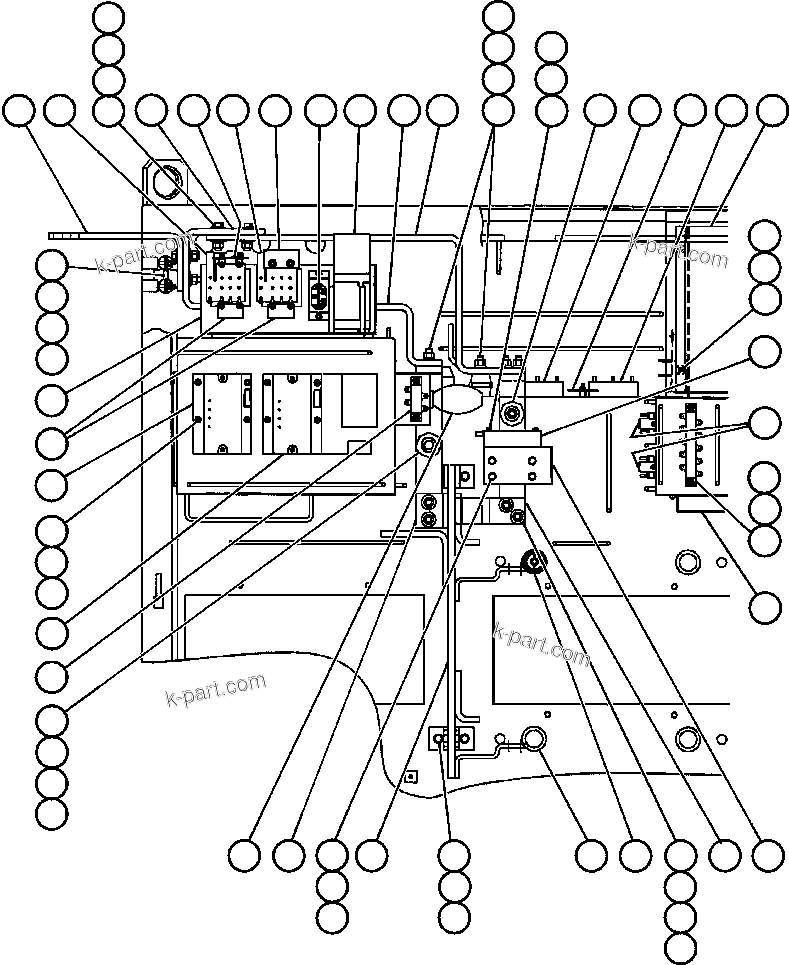

CONTROL CABINET (INSIDE TOP LEFT FRONT) (64181) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
