AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	GE0148	FILTER PANEL ASSEMBLY	1
?	VE4379	RESISTOR ASSEMBLY	3
?	VE0066	RESISTOR - 200 WATT, 25 OHM	6
?	VE3846	CAPACITOR ASSEMBLY	3
?	VE4921	CAPSCREW - #10 - 32NF X 1"	-1
?	VE4655	FLAT WASHER - #10	-1
?	VE4601	LOCKWASHER - #10	-1
?	GE0186	BAR, BUS	2
?	GE0185	BAR, BUS	1
?	GE0183	BAR, BUS	2
?	GE0259	CAPSCREW - 1/2" - 13NC X 2 1/8"	-1
?	VE4519	WASHER, NARROW - 1/2"	-1
?	VE4699	LOCKWASHER - 1/2"	-1
?	VE4698	NUT - 1/2" - 13NC	-1
?	GE0513	INSULATOR W/STUD - 4 1/2"	5
?	GE0184	BAR, BUS	2
?	GE0187	BAR, BUS	1
?	GE0225	BAR, BUS	2
?	GE0203	INSULATOR W/STUD - 3 7/8"	3
?	GE0238	GROMMET, RUBBER	7
?	GE0182	PANEL	2
?	PB4267	PANEL	2
?	GE0256	CAPSCREW - #10 - 32NF X 1 7/8"	-1
?	VE4349	CAPSCREW - 5/16" - 18NC X 7/8"	-1
?	VE5762	WASHER, NARROW - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	GE0175	LAMP, SERVICE	2
?	GE0239	GROMMET, RUBBER	1
?	GE0661	COMPOUND, SEALING	-1
?	SF2755	NUT - #10 - 32NF	-1
?	PB3606	SPACER	12
?	GE0192	BAR, BUS	1
?	GE0189	BAR, BUS	1
?	GE0235	INSULATOR W/STUD - 4 7/8"	1
?	GE0234	WASHER	1
?	VE4648	FLAT WASHER - 5/16"	-1
?	VE5013	NUT - 5/16" - 18NC	-1
?	GE0755	SUPPLY, AC DRIVE POWER	1
?	PB4110	BOARD, TERMINAL (SEE FIG 64033)	1	64033
?	VS8193	BOARD, TERMINAL (SEE FIG 64033)	1	64033
?	GE0210	SENSOR, AC - DC	2
?	VJ6586	CAPSCREW - #10 - 32NF X 3/4"	-1
?	VE4641	CAPSCREW - 3/8" - 16NC X 1 1/4"	-1
?	VE4516	WASHER, NARROW - 3/8"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	GE0196	BAR, BUS	1
?	GE0195	BAR, BUS	1
?	GE0193	BOARD, TERMINAL (SEE FIG 64033)	1	64033
?	GE0514	CAPACITOR	1
?	GE0483	DIODE, POWER BLOCK	1
?	VE6118	PANEL, VOLTAGE MEASURING (SEE INDEX)	2	64043
?	GE0760	FUSE PANEL ASSEMBLY	1
?	GE0822	BASE, FUSE PANEL	1
?	GE0227	FUSE, HIGH VOLTAGE - 15 AMP	2
?	GE0229	INSULATOR - 2 3/4"	4
?	GE0258	CAPSCREW - 1/2" - 13NC X 1 3/8"	1
?	PB3348	INSULATOR - 1/2" - 13NC BOTH ENDS	1
?	GE0557	PANEL, RECTIFIER (SEE INDEX)	1	64036
?	GE0207	RESISTOR PANEL ASSEMBLY	1
?	VJ3291	RESISTOR - 2500 OHM	4
?	GE0208	RESISTOR - 500 OHM	1
?	VE1959	BUSHING, INSULATOR	10
?	VE4684	STRIP, CONNECTION - 3 1/4"	4
?	GE0223	BAR, CLAMP	5
?	GE0257	CAPSCREW - 3/8" - 16NC X 1 7/8"	-1
?	VE4516	WASHER, NARROW - 3/8"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	GE0511	BAR, BUS	1
?	GE0204	INSULATOR W/STUD - 4 1/8"	1
?	GE0191	BAR, BUS	1
?	GE0226	GROMMET, RUBBER	3
?	GE0237	GROMMET, RUBBER	1

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

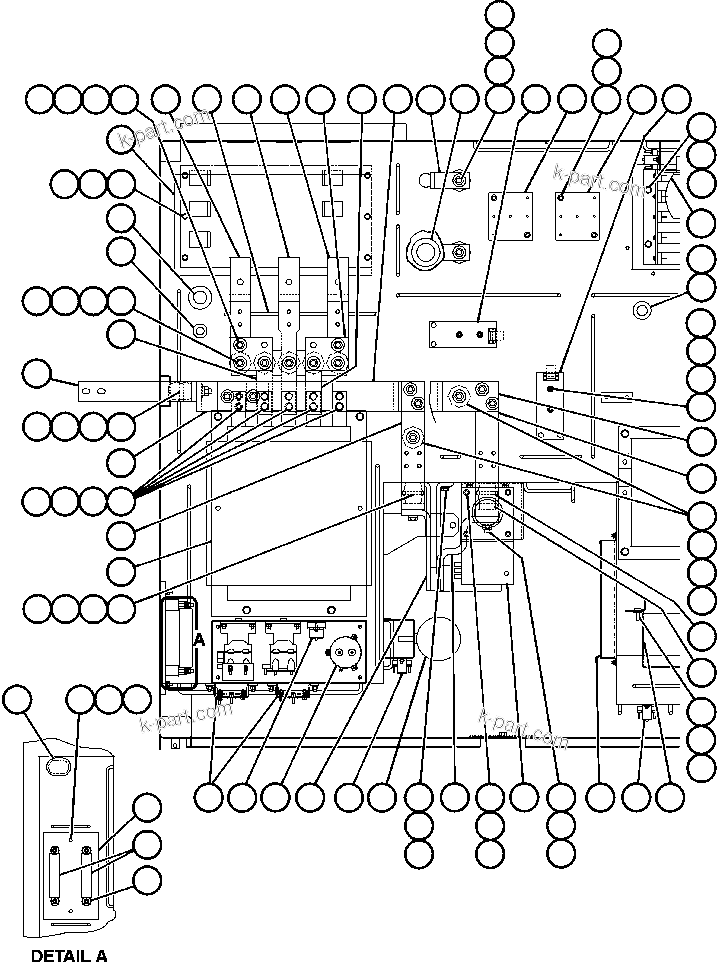

CONTROL CABINET (TOP LEFT VIEW) (64186) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
