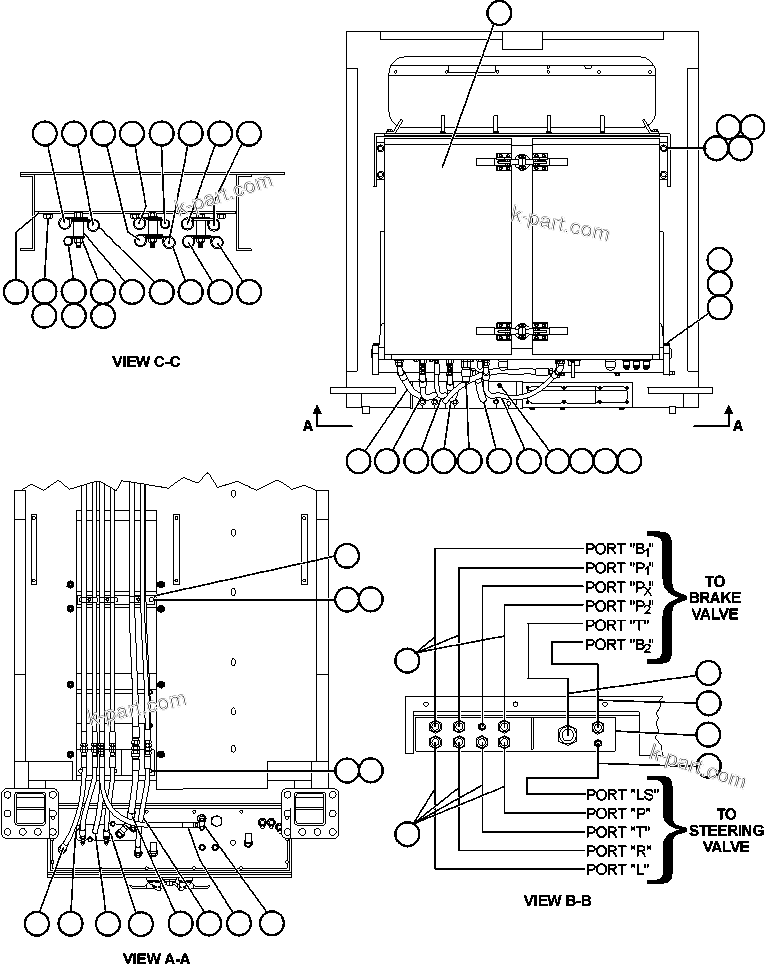

AFE50-BE 830E S/N A30706-A30708 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EK8017	BRAKE CABINET ASSEMBLY (SEE INDEX)(1)	1	41752
?	MM0620	CAPSCREW - M12 X 1.75 X 40	4
?	MM0472	LOCKWASHER - M12	12
?	MM0179	NUT - M12 X 1.75	4
?	SM2014	CAP	2
?	MM0623	CAPSCREW - M12 X 1.75 X 60	4
?	MM0472	LOCKWASHER - M12	4
?	HA7646	HOSE	2
?	HA7669	HOSE	2
?	HA7644	HOSE	1
?	WB0386	FITTING, TEE	1
?	HA7386	HOSE	1
?	EF9801	FLAP, RUBBER	1
?	MM0470	LOCKWASHER - M8	4
?	MM0460	FLAT WASHER - M8	4
?	MM0177	NUT - M8 X 1.25	4
?	HA7642	HOSE - TO PORT "LS" (STEERING)	1
?		(NOT USED THIS APPLICATION)	-1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	9
?	MM0471	LOCKWASHER - M10	15
?	EF8174	CLAMP	2
?	WB0430	FITTING, BULKHEAD	8
?	EF8177	BRACKET	1
?	WB0432	FITTING, BULKHEAD	1
?	WB0427	FITTING, BULKHEAD	2
?	HA7668	HOSE - TO PORT "B2" (BRAKE)	1
?	HA7389	HOSE - TO PORT "T" (BRAKE)	1
?	HA7641	HOSE - TO PORT "P" (STEERING)	1
?	HA7668	HOSE - TO PORT "P2" (BRAKE)	1
?	HA7643	HOSE - TO PORT "T" (STEERING)	1
?	HA7667	HOSE - TO PORT "PX" (BRAKE)	1
?	HA7668	HOSE - TO PORT "P1" (BRAKE)	1
?	HA7668	HOSE - TO PORT "B1" (BRAKE)	1
?	HA7643	HOSE - TO PORT "L" (STEERING)	1
?	HA7641	HOSE - TO PORT "R" (STEERING)	1
?	TG2568	CLAMP	8
?	VN9913	CLAMP	2
?	TY8375	SPACER	6
?	MM0461	FLAT WASHER - M10	6
?	MM0178	NUT - M10 X 1.50	6
?	TG2960	CLAMP	2
?	MM0714	FLAT WASHER - M12 (HARDENED)	4
?		(NOT USED THIS APPLICATION)	-1
?		NOTE: (1) NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1
