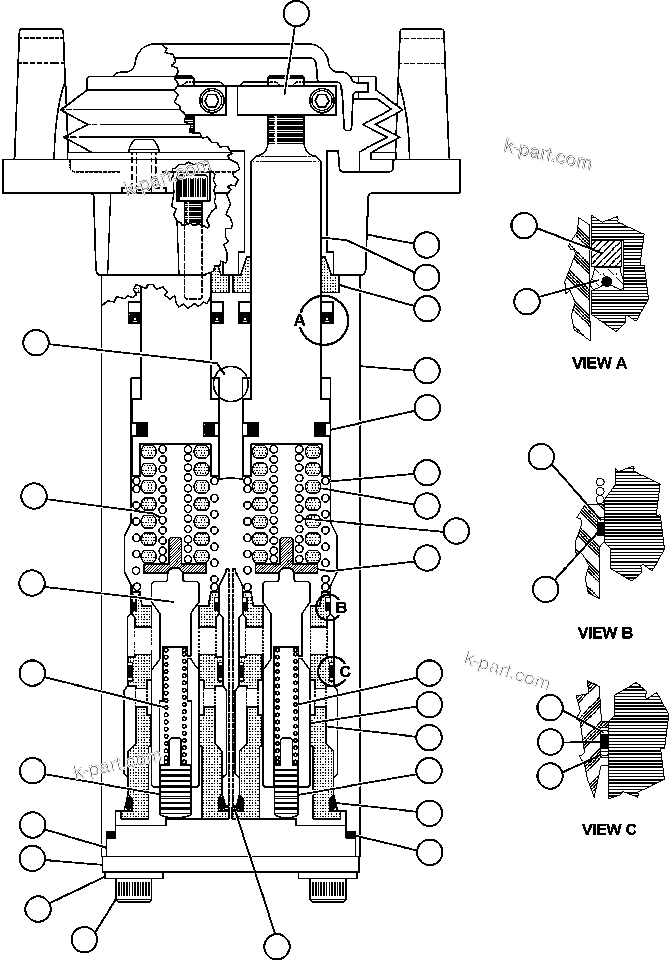

BRAKE VALVE SUB-ASSEMBLY - 3 (BF4474) | AFE50-BE 830E S/N A30706-A30708 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-BE 830E S/N A30706-A30708 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE8070	COLLAR	2
?	VE9419	BASE, ACTUATOR	1
?	VE8071	PLUNGER	2
?		SEAL, WIPER (1)	2
?	BF2589	HOUSING, DUAL VALVE	1
?		RING, GLYD (1)	2
?		SPRING, RETURN (2)	2
?		SPRING, REGULATOR (2)	1
?		SPRING, REGULATOR (2)	1
?	VE8532	SEAT, SPRING	2
?		SPRING, SPOOL (2)	2
?		SPOOL, REGULATOR (3)	1
?		SLEEVE (3)	2
?		PLUNGER, REACTION (3)	1
?		SEAL (1)	2
?		PACKING (1)	1
?	VE9058	CAPSCREW - 1/4"	4
?	C1546	FLAT WASHER - 1/4"	4
?	VE9421	RETAINER, SLEEVE	1
?	VE9418	PLUG	1
?		PLUNGER, REACTION (3)	1
?		SPRING, REGULATOR (2)	1
?	VE8533	SCREW	1
?		SEAL (1)	2
?		RING, BACKUP (1)	2
?		O-RING (1)	2
?		RING, BACKUP (1)	2
?		RING, BACKUP (1)	4
?		O-RING (1)	2
?	EF3449	PLUG, ORIFICE	1
?		SPOOL (3)	1
?	VE8529	NOTE: (1) INCLUDED IN VE8529 SEAL KIT.	-1
?	BF1860	(2) INCLUDED IN BF1860 SPRING KIT.	-1
?	BF1859	(3) INCLUDED IN BF1859 SPOOL/SLEEVE KIT.	-1
