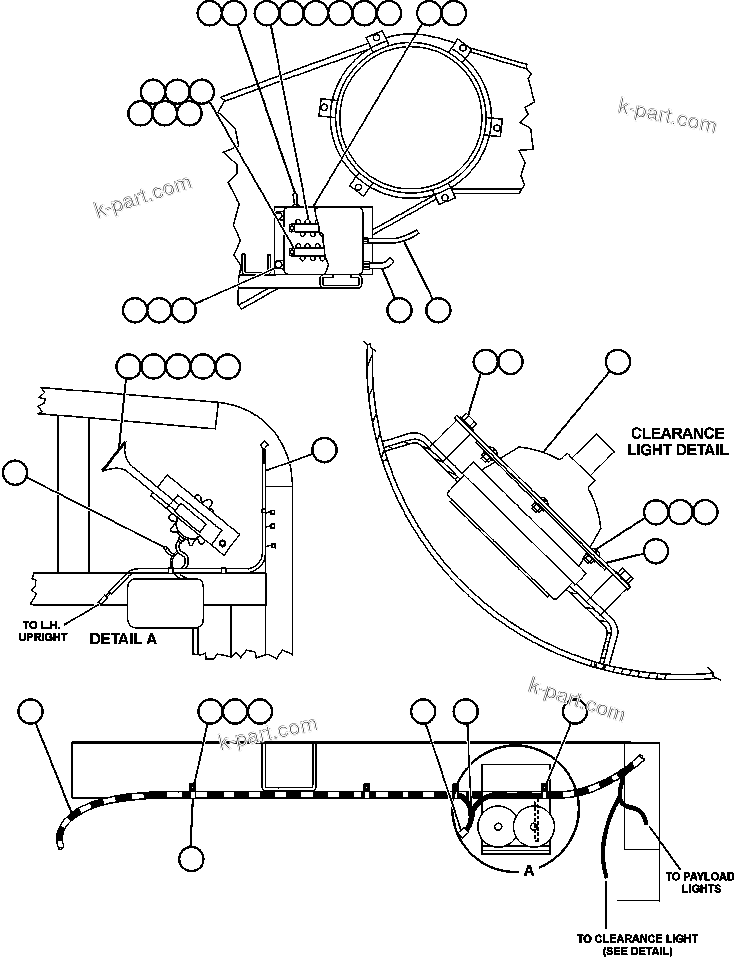

LEFT UPRIGHT ELECTRICAL GROUP | AFE50-BE 830E S/N A30706-A30708 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-BE 830E S/N A30706-A30708 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EJ8348	HARNESS, L.H. UPRIGHT	1
?	TG2568	CLAMP - 7/8" I.D.	5
?	TR4436	FLAT WASHER - 3/8"	5
?	TC1231	LOCKWASHER - 3/8"	5
?	TC1233	NUT - 3/8" - 16NC	5
?	VZ3250	DIODE	1
?	HC9043	KNIFE, DISCONNECT	2
?	TC6058	CLAMP - 1 1/2" I.D.	4
?	PB9255	HORN, FRONT	1
?	MM0617	CAPSCREW - M12 X 1.75 X 25	2
?	MM0462	FLAT WASHER - M12	2
?	MM0472	LOCKWASHER - M12	2
?	MM0179	NUT - M12 X 1.75	2
?	EJ5652	HARNESS, L.H. DECK JUMPER	1
?	AK8456	LIGHT, FRONT TURN & CLEARANCE (SEE FIG 41107)	1	41107
?	TY7470	PLATE, MOUNTING	1
?	DC5004	SCREW, MACHINE - #12 - 24NC X 1/2"	3
?	VD2047	LOCKWASHER - #12	3
?	TR8580	NUT - #12 - 24NC	3
?	VN6402	CAPSCREW - 3/8" - 16NC X 3/8"	4
?	C0312	LOCKWASHER - 3/8"	4
?	EJ5656	HARNESS, L.H. FRAME RAIL	1
?	TZ0876	JUNCTION BOX ASSEMBLY - L.H.	1
?	TZ0549	BOX	1
?	WA3367	NUT ASSEMBLY	24
?	VS8479	BOARD, TERMINAL	2
?	VF2231	SCREW, MACHINE - #10 - 24NC X 3/8"	4
?	DC3101	LOCKWASHER - #10	4
?	SR8325	SWITCH, TOGGLE	1
?	PB3324	BOOT, SWITCH	1
?	WA6683	STRIP, CIRCUIT I.D.	1
?	VM2951	SCREW, SELF TAPPING - #6 - 32NC X 5/16"	4
?	EB5973	STRIP, CIRCUIT I.D.	1
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	4
?	SP8417	FLAT WASHER - 1/4"	4
?	DC3584	LOCKWASHER - 1/4"	4
?		NOTE: NS = NOT SHOWN	-1
?	AK7504	LIGHT, SERVICE (SEE FIG 40869)	2	40869
?	VN5153	WIRE, GROUND	3
