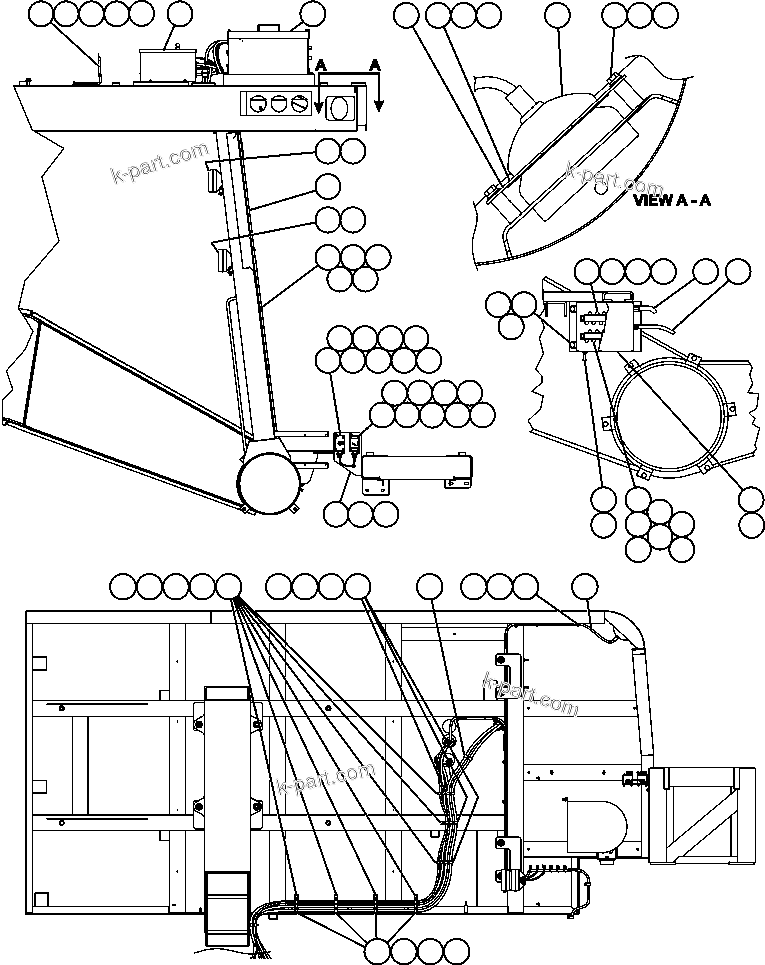

RIGHT DECK ELECTRICAL GROUP | AFE50-BE 830E S/N A30706-A30708 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-BE 830E S/N A30706-A30708 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		BOX, BATTERY (SEE FIG 41708)	1	41708
?		BOX, BATTERY DISCONNECT SWITCH (SEE FIG 41650)	1	41650
?	VN5153	WIRE, GROUND (GRID ASSEMBLY TO DECK)	2
?	VH9969	STUD, WELD - 3/8" - 16NC X 3/4"	1
?	SP6153	LOCKWASHER - 3/8" (INT-EXT TOOTH)	4
?	C0312	LOCKWASHER - 3/8"	15
?	TC1233	NUT - 3/8" - 16NC	11
?	AK7504	LIGHT, SERVICE (SEE FIG 40869)	2	40869
?	EJ5651	HARNESS, R.H. UPRIGHT	1
?	TG2568	CLAMP - 7/8" I.D.	18
?	MM0471	LOCKWASHER - M10	8
?	MM0178	NUT - M10 X 1.50	8
?	EJ3891	CLAMP ASSEMBLY	25
?	EJ3892	ROD, THREADED	25
?	MM0459	FLAT WASHER - M6	25
?	PB8735	SWITCH, MOMENTARY ON/ON (ENGINE SHUTDOWN)	1
?	TZ6931	PLATE, TITLE	1
?	TZ0880	COVER, SWITCH	1
?	VZ1243	GRIP, CORD	2
?	PB4043	GASKET, RUBBER	2
?	PB9075	CONDULET, SINGLE GANG	2
?	HE2467	SCREW, MACHINE - #6 - 32NC X 1/2"	8
?	TR4065	CAPSCREW - 1/4" - 20NC X 1/2"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	TD1549	NUT - 1/4" - 20NC	4
?	VA2828	SWITCH, FLUSH HEAD	1
?	VA2826	COVER, SINGLE GANG	1
?	MM0176	NUT - M6 X 1.00	25
?	EJ8393	BRACKET, MOUNTING	1
?	TR1376	CAPSCREW - 1/2" - 13NC X 1 1/4"	2
?	DF3500	NUT - 1/2" - 13NC	2
?	EJ5576	CLAMP ASSEMBLY	21
?	EJ5654	HARNESS, R.H. DECK JUMPER	1
?	AK8456	LIGHT, FRONT TURN & CLEARANCE (SEE FIG 41107)	1	41107
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	4
?	DF3042	FLAT WASHER - 3/8"	4
?	TY7470	PLATE, MOUNTING	1
?	DC5004	SCREW, MACHINE - #12 - 24NC X 1/2"	3
?	VD2047	LOCKWASHER - #12	3
?	TR8580	NUT - #12 - 24NC	3
?	EJ5657	HARNESS, R.H. FRAME RAIL	1
?	EB5963	JUNCTION BOX ASSEMBLY - R.H.	1
?	EB5966	BOX	1
?	WA3367	NUT ASSEMBLY	24
?	VS8479	BOARD, TERMINAL	2
?	VF2231	SCREW, MACHINE - #10 - 24NC X 3/8"	4
?	DC3101	LOCKWASHER - #10 - 24NC X 3/8"	4
?	SR8325	SWITCH, TOGGLE	1
?	PB3324	BOOT, SWITCH	1
?	WB2112	STRIP, CIRCUIT I.D.	1
?	WB2886	STRIP, CIRCUIT I.D.	1
?	VM2951	SCREW, SELF TAPPING - #6 - 32NC X 5/16"	2
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	4
?	SP8417	FLAT WASHER - 1/4"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	EK7154	CLAMP ASSEMBLY	13
