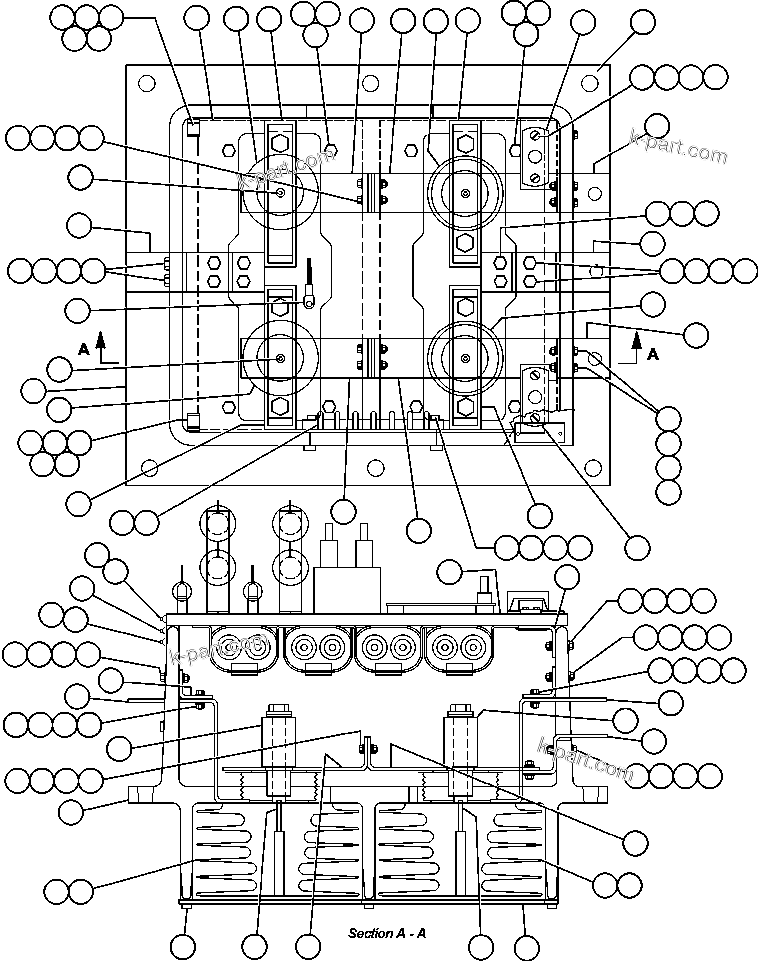

PANEL - M.F.S.E. (PB8837) | AFE50-BE 830E S/N A30706-A30708 DIAVIK

AFE50-BE 830E S/N A30706-A30708 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PB8837	PANEL	1
?	VE4900	PANEL BOX	1
?	VE4901	HEAT SINK	2
?	TR1306	CAPSCREW - 1/4" - 20NC X 1"	12
?	VE7202	FLAT WASHER - 1/4"	-1
?	DC3584	LOCKWASHER - 1/4"	-1
?	VE4902	NUT	-1
?	VE4903	BUS BAR	2
?	VE0300	BUS BAR	2
?	SH7597	CAPSCREW - 1/4" - 20NC X 1/2"	4
?	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	12
?	VE0301	BAR, BUS	2
?	VE0302	BAR, BUS	2
?	VE0297	BAR, BUS/SCREWS	2
?	VS7514	BOARD, TERMINAL	1
?	VE4904	PLATE, INDICATOR	1
?	VE4905	MACHINE SCREW - #10 - 32NF X 1 1/4"	6
?	VS6662	FLAT WASHER - #10	-1
?	DC3101	LOCKWASHER - #10	-1
?	SF2755	NUT	8
?	VE5098	SUPPORT	2
?	VE4382	RECEPTACLE, LATCHING	2
?	VE4383	MACHINE SCREW - #4 - 40NF X 1/2"	4
?	VE4907	FLAT WASHER	4
?	VE4908	LOCKWASHER	4
?	VE4909	NUT	4
?	VE0039	DIODE	2
?	VE4910	PANEL ASSEMBLY (SEE INDEX)	1	64074
?	VE4911	HINGE	1
?	VE4912	MACHINE SCREW - #8 - 5/8"	5
?	VE4913	MACHINE SCREW - #8 - 3/4"	5
?	VE0040	RECTIFIER	2
?	VE4914	CLAMP	4
?	VE4389	SHIELD, INSULATION	1
?	VE4915	MACHINE SCREW - #8 - 18NC X 1/2"	9
?	VP9525	PIN, SPRING DOWEL	4
?	VE4916	MACHINE SCREW - #10 - 32NF X 1/2"	6
?	VE4917	CLAMP, CABLE	1
?	VE4918	CLAMP, CABLE	1
?	VE4921	MACHINE SCREW - #10 - 32NF X 1"	2
?	VE4604	FLAT WASHER	-1
?	VE6320	CAPSCREW - 1/4" - 20NC X 1 1/8"	4
?	BF0932	SENSOR, THERMISTOR - 100,000 OHM	1
?		NOTE: NS = NOT SHOWN	-1
?	VE6321	CLAMP, CABLE	1
?	VE6322	CLAMP, CABLE	1
?	VE6323	CLAMP, CABLE	2
