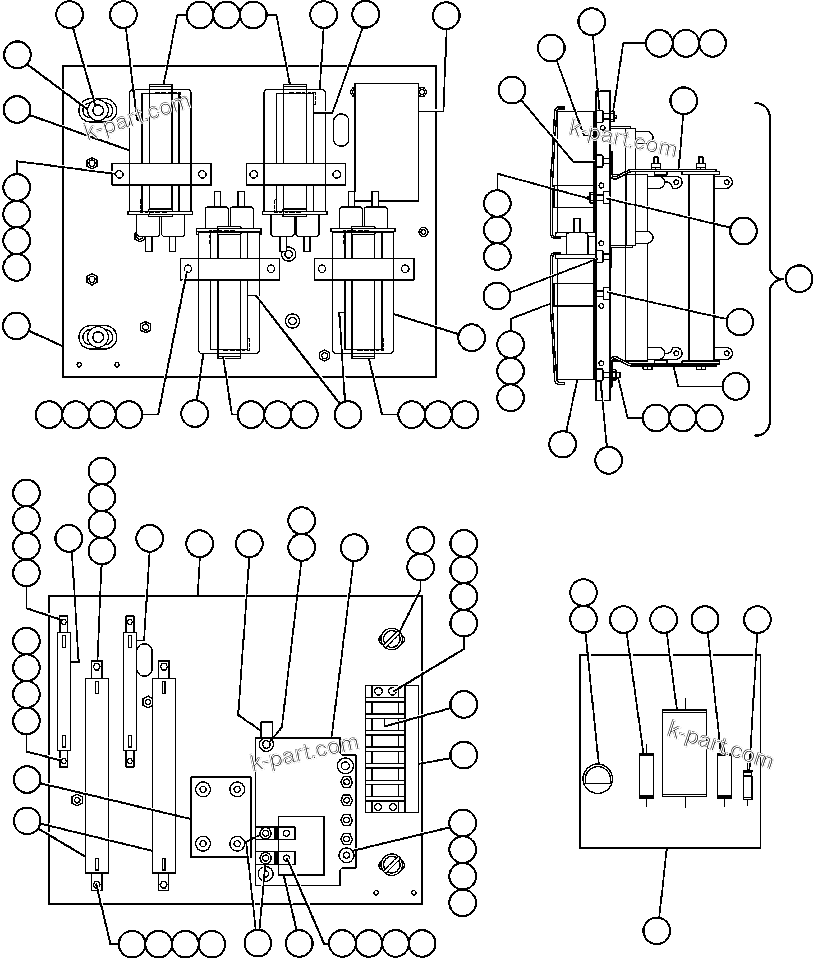

PANEL - COVER, M.F.S.E. (VE4910) | AFE50-BE 830E S/N A30706-A30708 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-BE 830E S/N A30706-A30708 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VE4910	PANEL ASSEMBLY	1
?	VE5966	BASE	1
?	VE3847	CAPACITOR	4
?	VE5967	CLAMP	4
?	VE5968	GASKET	4
?	VE3035	CEMENT	-1
?	VS6823	RESISTOR - 50W, 100HM	2
?	VE6108	RESISTOR ASSEMBLY (SEE FIG 64075)	2	64075
?	VS7592	CHOKE	1
?	VS7514	BOARD, TERMINAL	1
?	VE4904	PLATE, INDICATOR	1
?	VE5969	ADAPTOR	2
?	VS6820	MODULE	1
?	VS6990	RESISTOR - 1/2 WATT, 82 OHM	1
?	VS6996	RESISTOR - 1/2 WATT, 470 OHM	1
?	VE2616	DIODE	1
?	VS7210	CAPACITOR - 2 MFD, 50 VOLT	1
?	VS7214	DIODE	1
?	VS6610	TRANSIPAD	1
?	VS7214	DIODE	1
?	VS6610	TRANSIPAD	1
?	VE5970	FLAT WASHER	4
?	VE5156	MACHINE SCREW - #10 - 32NF X 7/8"	1
?	VE5972	SCREW, CAPTIVE	2
?	VS7484	WASHER, RETAINING	2
?	VE4386	GASKET	4
?	VP9597	MACHINE SCREW - #6 - 40NF X 5/8"	2
?	VE5756	FLAT WASHER - #6	4
?	TR5445	LOCKWASHER - 1/2"	4
?	VE5959	NUT	4
?	VJ6586	MACHINE SCREW - #10 - 32NF X 3/4"	5
?	VE4921	MACHINE SCREW - #10 - 32NF X 1"	4
?	VS6662	FLAT WASHER - #10	-1
?	DC3101	LOCKWASHER - #10	-1
?	SF2755	NUT	21
?	VE4916	MACHINE SCREW - #10 - 32NF X 1/2"	6
?	VS7373	MODULE	1
?	VJ6586	MACHINE SCREW - #10 - 32NF X 3/4"	8
?	VE5976	MACHINE SCREW - #6 - 40NF X 7/8"	2
