1 |
EK4991
|
BOARD, RELAY - RB8 (SEE FIG 55613) |
1 |
|
55613 |
|
|
2 |
MM0459
|
FLAT WASHER - M6 |
28 |
|
|
|
|
3 |
MM0379
|
LOCKWASHER - M5 (EXTERNAL TOOTH) |
26 |
|
|
|
|
4 |
MM0373
|
NUT - M5 |
28 |
|
|
|
|
5 |
TZ0961
|
RESISTOR |
1 |
|
|
|
|
6 |
EG2363
|
HOUSING |
1 |
|
|
|
|
7 |
WB2918
|
NAME PLATE - SFDT |
1 |
|
|
|
|
8 |
PB9972
|
TIMER |
1 |
|
|
|
|
9 |
MM0469
|
LOCKWASHER - M6 |
2 |
|
|
|
|
10 |
WB2940
|
NAME PLATE - 5 MIN TIMER |
1 |
|
|
|
|
11 |
PB6963
|
TIMER |
1 |
|
|
|
|
12 |
WB2733
|
NAME PLATE - RB8 |
1 |
|
|
|
|
13 |
EF3013
|
NAME PLATE - TB36 |
1 |
|
|
|
|
14 |
PC1810
|
A.I.D. MODULE ASSEMBLY |
1 |
|
|
|
|
14 |
VE3422
|
BOX (W/O CARDS) |
1 |
|
|
|
|
14 |
BF1539
|
CHASSIS ASSEMBLY |
1 |
|
|
|
|
14 |
BF1540
|
CARD CAGE ASSEMBLY |
1 |
|
|
|
|
14 |
BF1541
|
MOTHERBOARD ASSEMBLY |
1 |
|
|
|
|
14 |
BF1542
|
FRONT PANEL ASSEMBLY |
1 |
|
|
|
|
14 |
VE1407
|
KNOB |
1 |
|
|
|
|
14 |
BF1552
|
RING, RETAINING |
1 |
|
|
|
|
14 |
VJ8805
|
CARD, FLASHER/COOLANT LEVEL |
1 |
|
|
|
|
14 |
VJ9023
|
CARD, DIODE (W/SOUND) |
1 |
|
|
|
|
14 |
VJ9024
|
CARD, DIODE (W/O SOUND) |
1 |
|
|
|
|
14 |
PB5672
|
CARD, SINGLE TEMPERATURE LATCH |
1 |
|
|
|
|
15 |
PC0040
|
CARD, OIL LEVEL/TEMPERATURE |
1 |
|
|
|
|
16 |
VJ9025
|
CARD, DUAL HOT SWITCH INVERTER |
1 |
|
|
|
|
17 |
PB5732
|
BOARD, TERMINAL |
4 |
|
|
|
|
18 |
EF3017
|
NAME PLATE - TB35 |
1 |
|
|
|
|
19 |
PB7276
|
RELAY - 50 AMP |
2 |
|
|
|
|
20 |
WB2835
|
NAME PLATE - KEY SWITCH POWER RELAY |
1 |
|
|
|
|
21 |
WB2836
|
NAME PLATE - 12V POWER RELAY |
1 |
|
|
|
|
22 |
TZ7319
|
NAME PLATE - RD1 |
1 |
|
|
|
|
23 |
TZ7320
|
NAME PLATE - RD2 |
1 |
|
|
|
|
24 |
AK7557
|
RESISTOR/DIODE |
2 |
|
|
|
|
25 |
EL5649
|
FUSE BLOCK (SEE FIG 60907) |
1 |
|
60907 |
|
|
26 |
WB2879
|
NAME PLATE - ORBCOMM MODEM |
1 |
|
|
|
|
27 |
MM0030
|
CAPSCREW - M8 X 1.25 X 30 |
4 |
|
|
|
|
28 |
MM0470
|
LOCKWASHER - M8 |
4 |
|
|
|
|
29 |
MM0703
|
FLAT WASHER - M8 (HARDENED) |
12 |
|
|
|
|
30 |
7826122202
|
CONTROLLER, ORBCOMM |
1 |
|
|
|
|
31 |
WB2960
|
NAME PLATE - +18V |
1 |
|
|
|
|
32 |
WB2959
|
NAME PLATE - +5V |
1 |
|
|
|
|
33 |
WB2961
|
NAME PLATE - AGND |
1 |
|
|
|
|
34 |
ED0913
|
ROD, THREADED |
3 |
|
|
|
|
35 |
TA7409
|
INSULATOR, STAND-OFF |
3 |
|
|
|
|
36 |
DC3584
|
LOCKWASHER - 1/4" |
6 |
|
|
|
|
37 |
TD1549
|
NUT - 1/4" |
3 |
|
|
|
|
38 |
EL0112
|
PLATE |
1 |
|
|
|
|
39 |
7826116000
|
CONTROLLER, VHMS |
1 |
|
|
|
|
40 |
EJ9089
|
INTERFACE MODULE (IM) ASSEMBLY (1) |
1 |
|
|
|
|
41 |
MM0602
|
CAPSCREW - M8 X 1.25 X 80 |
8 |
|
|
|
|
42 |
VM2951
|
SCREW, SELF-TAPPING - #6 - 32NC X 5/16" |
8 |
|
|
|
|
43 |
WB1320
|
STRIP, CIRCUIT - ID |
1 |
|
|
|
|
44 |
WB1319
|
STRIP, CIRCUIT - ID |
1 |
|
|
|
|
45 |
WA3367
|
NUT ASSEMBLY |
80 |
|
|
|
|
46 |
WB3046
|
NAME PLATE - TB40 |
1 |
|
|
|
|
47 |
WB3045
|
NAME PLATE - TB39 |
1 |
|
|
|
|
48 |
WB1321
|
STRIP, CIRCUIT - ID |
1 |
|
|
|
|
49 |
WB3034
|
STRIP, CIRCUIT - ID |
1 |
|
|
|
|
50 |
WB2973
|
NAME PLATE - TB38 |
1 |
|
|
|
|
51 |
WB2654
|
NAME PLATE - TB37 |
1 |
|
|
|
|
52 |
PC1691
|
HARNESS, ORBCOMM |
1 |
|
|
|
|
53 |
PC0618
|
PLUG, TERMINATING |
2 |
|
|
|
|
54 |
PC1701
|
FITTING, BULKHEAD (COAX) |
1 |
|
|
|
|
55 |
EK8926
|
HARNESS, VHMS RESISTORS |
1 |
|
|
|
|
56 |
PC0616
|
RECEPTACLE, TEE |
4 |
|
|
|
|
NS|68 |
|
NOTE: (1) IM IS NOT PROGRAMMED. |
-1 |
|
|
|
|
NS|69 |
|
REQUIRES EJ9098 VHMS SOFTWARE. |
-1 |
|
|
|
|
NS|70 |
|

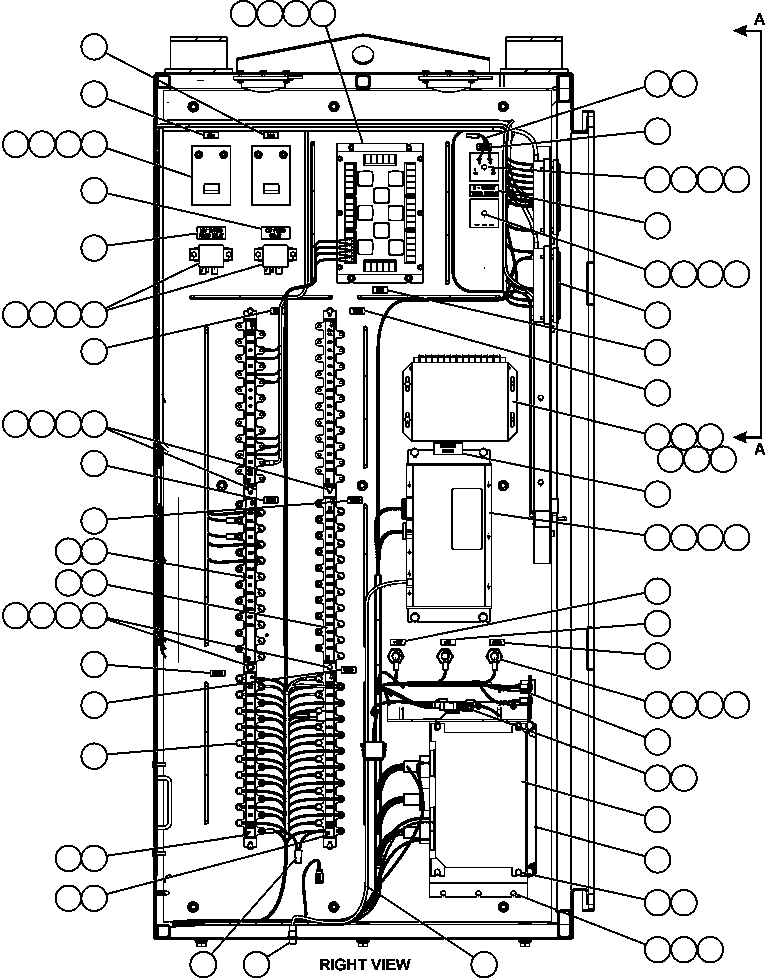

(FOR VIEW A-A, SEE FOLLOWING PAGE.) |
-1 |
|
|
