AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		HANDRAIL (SEE FIG 41762)	1	41762
?	C1598	CAPSCREW - 5/16" - 18NC X 1"	8
?	WA0723	FLAT WASHER - 5/16"	8
?	VN9951	LOCKNUT - 5/16" - 18NC	8
?	PB7490	ARM BOW ASSEMBLY, R.H.	1
?	VE5449	BOW, ARM	1
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4" (G5) (1)	4
?	VE5451	WASHER, FIBER - 25/64" X 7/8" (1)	4
?	H5304	LOCKWASHER - 3/8" (1)	2
?	SD4572	NUT, JAM - 3/8" - 16NC (1)	2
?	VE5453	CLAMP (1)	2
?	VE5454	MOUNTING ANGLE (1)	4
?	VE5452	WASHER - 13/32" (1)	2
?	C1521	NUT - 3/8" - 16NC (1)	2
?	PB7491	MIRROR, CONVEX - R.H.	1
?	VE5448	BACK ASSEMBLY	1
?	VE5445	MIRROR, CONVEX GLASS	1
?	VE5447	TRIM, PINCHWELT	1
?	VE5446	SPRING, CLIP	1
?	VE5450	NOTE: (1) INCLUDED IN VE5450 REPAIR KIT.	-1

Komatsu AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT parts catalog PDF

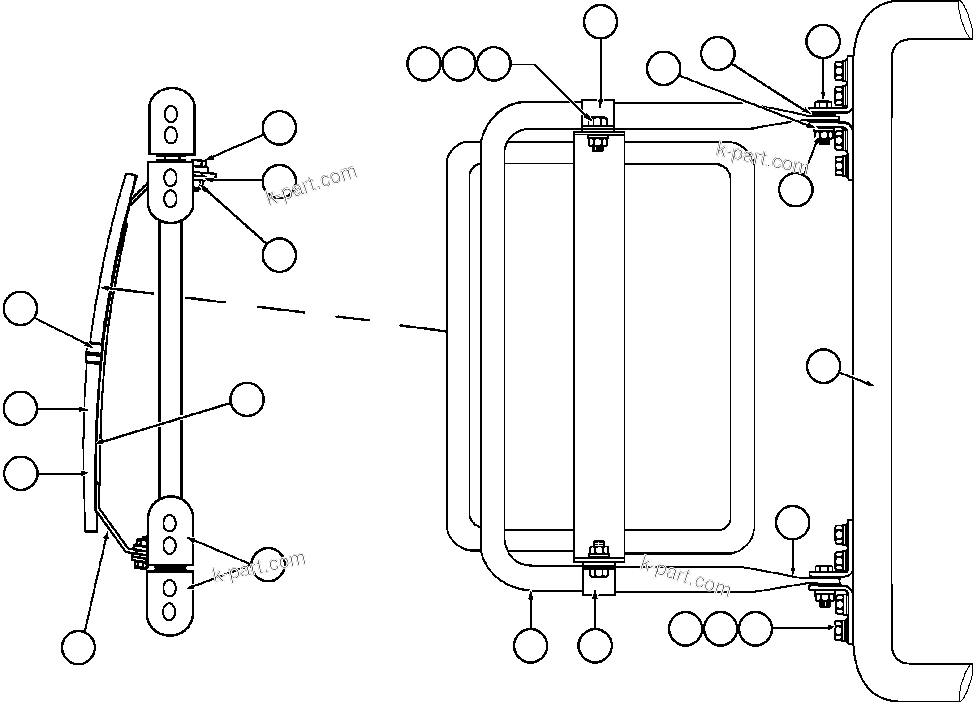

R.H. CONVEX MIRROR INSTALLATION (60560) in AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT. Diagram image and parts list.
