AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EJ7466	FRAME, GRILLE	1
?	EJ4576	GRILLE, TOP	2
?	EJ4577	GRILLE, BOTTOM	2
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	45
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	45
?	C1540	LOCKWASHER - 1/2"	45
?	TY7538	CLIP	22
?	WA3364	SCREW, LOCK	22
?	TF6925	CLAMP, VINYL - 3/4" I.D.	5
?	C1547	FLAT WASHER - 3/8" (PLAIN)	24
?	C0312	LOCKWASHER - 3/8"	5
?	C1521	NUT - 3/8" - 16NC	5
?	TY9672	DAM, AIR	2
?	VN6450	CAPSCREW - 3/8" - 16NC X 7/8"	19
?	YA1053	COVER, SURGE TANK	1
?	TY7528	PLATE, COVER	1
?	VC7836	FLAT WASHER - 1/2" (ZINC)	2
?	VG7811	LOCKNUT, NYLON - 1/2" - 13NC	1
?	PB6877	NUT, LEVER	1
?	PB6842	HOOK, HOOD (RUBBER)	2
?	C1639	CAPSCREW - 5/16" - 18NC X 2"	2
?	VN9951	LOCKNUT - 5/16" - 18NC	2
?	EC2617	PLATE, COVER	2
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4" (G5) (ZINC)	8
?	TC1231	LOCKWASHER - 3/8"	8
?	EJ7911	HARNESS, LADDER/ENGINE SHUTDOWN	1
?	SG2103	GROMMET, RUBBER	1
?	AK7503	BACKUP LIGHT ASSEMBLY (SEE FIG 55733)	1	55733
?	TD0794	CAPSCREW - 5/16" - 18NC X 3/4"	1
?	SC4174	LOCKWASHER - 5/16"	1
?	TY7535	DAM, AIR	1

Komatsu AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT parts catalog PDF

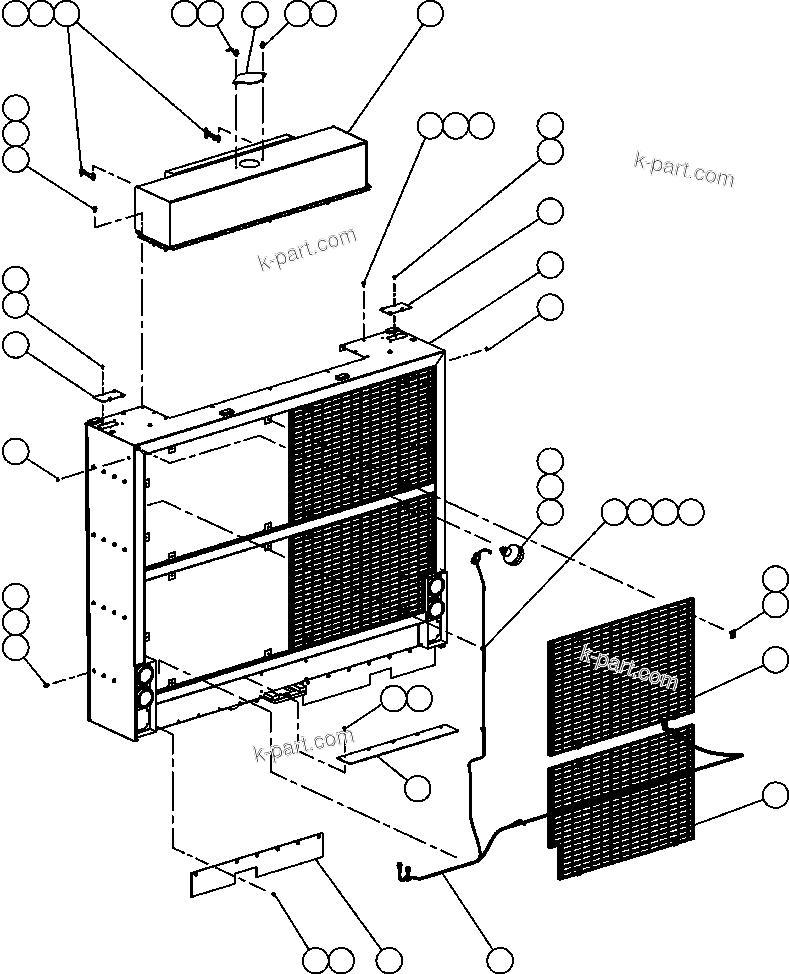

HOOD & GRILLE (41761) in AFE50-GC 830E S/N GAE2170 & GAE2173 & GAE2175 & GAE2177 GLIDER KIT. Diagram image and parts list.
