AFE50-CP 830E S/N A30842-A30844 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF4962	LOCKNUT - 5/8" - 18NF (1)/(2)	1
?	BF4963	FLAT WASHER - 5/8" (1)/(2)	1
?		PULLEY (SUPPLIED WITH ENGINE)	1
?	BF4957	BUSHING, PULLEY	1
?	BF4864	RING, SPIRAL	2
?	XA2112	SCREW, PAN - #8 - 32NC X 3/8" (1)	15
?	BF1970	PLATE, COVER	1
?	BF1989	RING, RETAINER (2)	1
?	BF4865	BEARING, FRONT	1
?	BF1988	RING, RETAINER (2)	1
?	XA2122	JAM NUT - 1/4" - 28NF (1)	18
?	XA2121	FLAT WASHER - 1/4" (1)	12
?	XA3294	INSULATOR	6
?	BF2002	LOCKNUT - #8 - 32NC (1)/(2)	18
?	BF4973	FLAT WASHER - 1/4" (1)/(2)	6
?	BF4969	CAPSCREW - M10 X 1.50 X 20 (1)/(2)	2
?	XA3310	LOCKWASHER - M10 (1)	2
?	BF4980	LOCKWASHER - 3/8" (1)	1
?	BF4979	CAPSCREW - M10 X 1.40 X 20 (1)/(2)	1
?	XA2098	HOUSING, DRIVE END	1
?	XA3295	COVER, CONTROL UNIT	1
?	XA3302	SWITCH, THERMAL	1
?	XA2113	CAPSCREW - 1/2" - 13NC X 1" (1)	1
?	XA3312	LOCKWASHER - 1/2" (1)	1
?	XA3313	FLAT WASHER - 1/2" (1)	1
?	XA0188	COVER, STUD ASSEMBLY	1
?	BF4967	CAPSCREW - M12 X 1.75 X 25 (1)/(2)	1
?	BF4966	LOCKWASHER - M12 (1)/(2)	1
?	BF1996	FLAT WASHER - 1/2" (1)/(2)	1
?	XA3296	SHELL CONNECTOR	1
?	XA3297	PIN CONNECTOR, FEMALE	2
?	XA3298	PLUG, WEDGE LOCK	1
?	XA3299	SHELL CONNECTOR	1
?	XA3300	RECEPTACLE, WEDGE LOCK	1
?	XA3301	PIN CONNECTOR, MALE	2
?	XA2130	HARNESS	1
?	XA2109	REGULATOR	1
?	BF4970	SCREW, HEX - M5 X 0.8 X 12 (1)/(2)	4
?	XA2114	WASHER, BELLVILLE (1)/(2)	4
?	XA2118	WASHER, BELLVILLE (1)	1
?	XA2117	LOCKNUT - M6 X 1.00 (1)	1
?	XA2115	NUT - M5 X 0.8 (1)/(2)	1
?	XA2116	WASHER, BELLVILLE (1)/(2)	1
?	BF4860	BUSHING, PULLEY	1
?	XA2099	SHAFT & CORE, ROTOR ASSEMBLY	1
?	BF3719	CAPSCREW - #10 - 32NF X 1/2" (1)/(2)	12
?	XA2100	ROTOR ASSEMBLY	2
?	XA2101	SHAFT & CORE ASSEMBLY	1
?	BF1999	KEY, WOODRUFF - 5/32" X 3/4" (1)/(2)	1
?	XA2103	RING, SPIRAL	2
?	XA2102	RING, CARRIER	1
?	XA2104	STATOR & FIELD COIL ASSEMBLY	1
?	BF3722	PAN SCREW - #8 - 32NC X 3/8" (1)/(2)	16
?	BF3723	NUT, HEX HEAD - #8 - 32NC (1)/(2)	9
?	BF4978	WEDGE, STATOR	6
?	XA2105	STATOR, DRIVE END	1
?	BF1981	BUSHING, TENSION	1
?		SHELL (2)	1
?	XA2106	STATOR, ANTI DRIVE END	1
?	XA3304	COIL, FIELD	1
?	BF1980	STUD - #8 - 32NC X 8 5/8"	9
?	XA2108	BEARING, ANTI DRIVE END	1
?	XA2110	O-RING	2
?	XA2107	HOUSING, ANTI DRIVE END	1
?	XA2096	FAN	1
?	BF4975	WASHER, BELLVILLE (1)/(2)	1
?	BF4976	NUT - M16 X 1.50 (1)/(2)	1
?	XA2097	GUARD, FAN	1
?	BF4977	SCREW, PAN - M5 X 0.8 X 25 (1)/(2)	6
?	XA2119	GROMMET	6
?		NOTE: (1) INCLUDED IN XA3306 SMALL PARTS PACKAGE.	-1
?		XA3306 INCLUDES 2 EACH ITEMS 40 AND 41.	-1
?		ONLY 1 EACH NEEDED.	-1
?		(2) NOT SERVICED SEPARATELY.	-1

Komatsu AFE50-CP 830E S/N A30842-A30844 ANTELOPE COAL parts catalog PDF

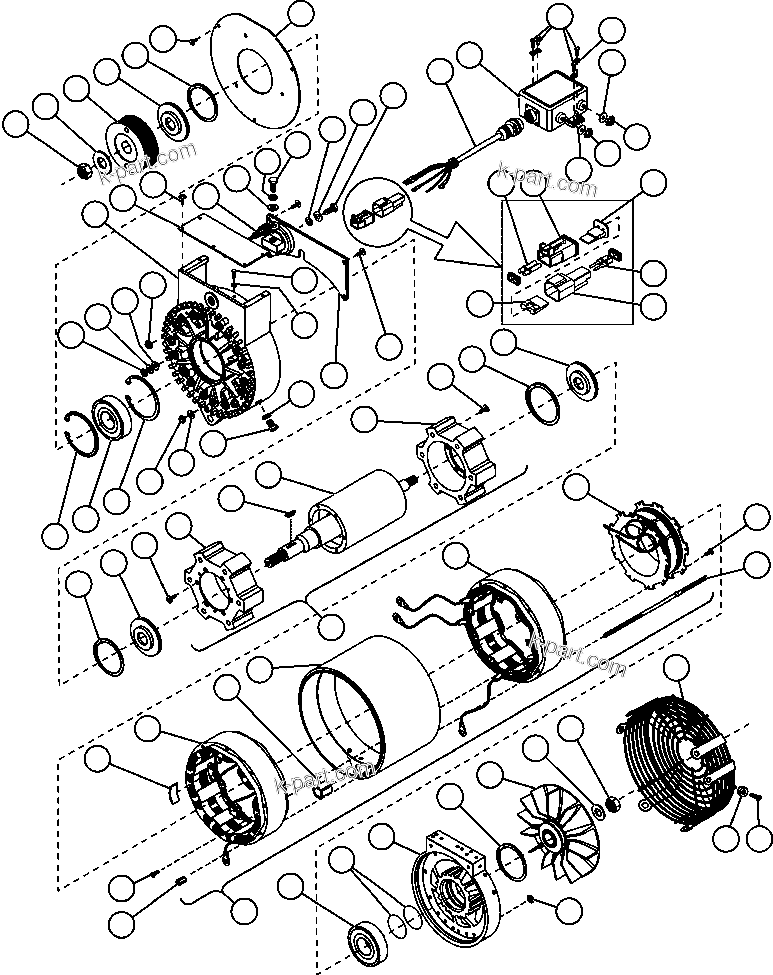

BATTERY CHARGING ALTERNATOR (XA3319) (55767) in AFE50-CP 830E S/N A30842-A30844 ANTELOPE COAL. Diagram image and parts list.
