AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL

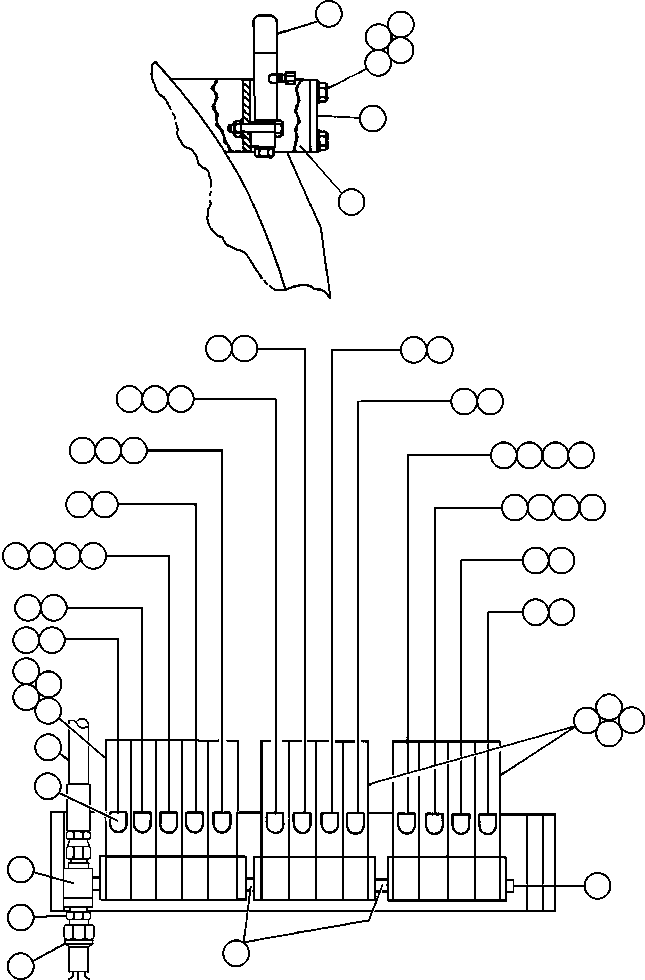

3 12 11 10 9 8 7 33 32 30 31 36 35 34 30 31 36 35 34 26 27 28 29 33 32 22 23 24 25 25 24 23 22 20 21 21 20 18 19 19 18 6 4 5 4 2 6 1 5 17 16 38 13 37 14 15

#	Part Number	Partname	Quantity
1	VW7989	INJECTOR (4 PIECE) (1)	2
1	XA2520	NIPPLE AND CAP ASSEMBLY	8
2	TA4411	INJECTOR (5 PIECE) (1)	1
2	XA2520	NIPPLE AND CAP ASSEMBLY	5
3	VW7990	CAP, PROTECTIVE	13
4	H0595	CAPSCREW - 3/8" - 16NC X 2 1/4"	6
5	MM0471	LOCKWASHER - M10	6
6	MM0178	NUT, HEX - M10 X 1.50	6
7	TY9709	MOUNT, INJECTORS	1
8	TA4407	PLATE, COVER	1
9	TA1232	SPACER	2
10	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
11	C1624	CAPSCREW - 1/2" - 13NC X 4"	2
12	C1540	LOCKWASHER - 1/2"	6
13	C5770	PLUG, PIPE - 3/8"	1
14	TB8803	NIPPLE	2
15	PC1295	SWITCH, PRESSURE	1
16	WB0252	FITTING, ELBOW - 90 DEG	13
17	HA0478	HOSE, GREASE SUPPLY (SEE REF. NO. 1 ON PRECEDING PAGE)	1
18	VW8099	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
19	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF REAR SUSPENSIONS)	2
20	HA1517	HOSE (TO TOP OF HOIST CYLINDERS)	2
21	WB0454	FITTING, STRAIGHT ADAPTER (AT TOP OF HOIST CYLINDERS)	2
22	HA0994	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
23	CD3705	NIPPLE (AT BOTTOM OF HOIST CYLINDERS)	2
24	C1231	COUPLING (AT BOTTOM OF HOIST CYLINDERS)	2
25	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
26	HA2995	HOSE (TO DRIVE AXLE PIVOT PIN)	1
27	CD3705	NIPPLE (AT DRIVE AXLE PIVOT PIN)	1
28	C1231	COUPLING (AT DRIVE AXLE PIVOT PIN)	1
29	WB0252	FITTING, ELBOW - 90 DEG (AT DRIVE AXLE PIVOT PIN)	1
30	HA1413	HOSE (TO ANTI-SWAY BARS)	2
31	WB0252	FITTING, ELBOW - 90 DEG (AT ANTI-SWAY BARS)	2
32	HA1416	HOSE (TO TOP OF REAR SUSPENSIONS)	2
33	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF REAR SUSPENSIONS)	2
34	VD4661	HOSE (TO BODY PIVOT PINS)	2
35	HC1580	BUSHING (AT BODY PIVOT PINS)	2
36	WB0252	FITTING, ELBOW - 90 DEG (AT BODY PIVOT PINS)	2
37	R0086	BUSHING, PIPE	1
38	PB8791	TEE	1
NS\|41		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1

Komatsu AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL parts catalog PDF

AUTOMATIC LUBRICATION SYSTEM - 2 (41683) in AFE50-CH 830E S/N A30818-A30819 & A30821 & A30826-A30830 ANTELOPE COAL. Diagram image and parts list.
