FAN CLUTCH ASSEMBLY (XA2335) | AFE50-CE 830E S/N A30811-A30814 EPSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CE 830E S/N A30811-A30814 EPSA

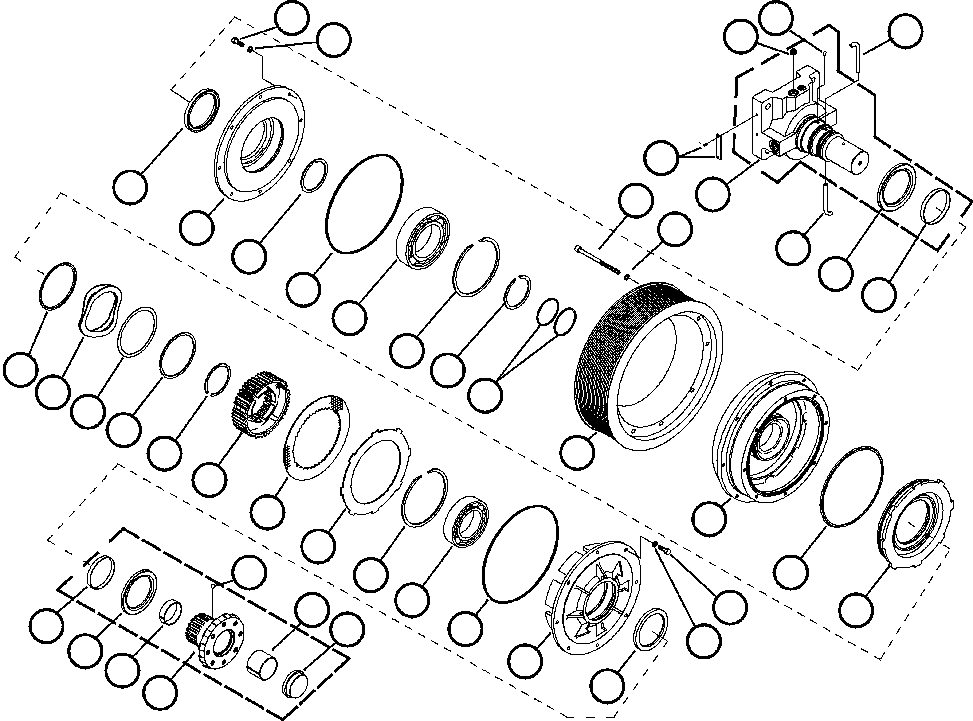

8 2 1 3 9 4 10 5 18 11 19 1 12 6 13 7 14 15 24 16 25 17 26 27 20 28 29 30 21 31 40 22 32 33 8 41 23 36 13 42 9 37 34 38 35 39

#	Part Number	Partname	Quantity
1		TUBE, PITOT (1)/(2)	2
2	XA2279	PIN, DOWEL - REAR (3)	1
3	VE1297	FITTING, ORIFICE	1
4		PLATE, NAME (1)/(2)	1
5	XA2272	SHAFT AND BRACKET	1
6	VE8126	RETAINER/SEAL ASSEMBLY (2)	1
7		SLEEVE, WEAR (1)/(2)	1
8	BF0884	CAPSCREW	16
9	BF0848	LOCKWASHER	16
10	BF0883	SEAL, OIL (2)	1
11	BF0842	RETAINER, BEARING	1
12	XA2277	SPACER, BEARING	1
13		SEAL, O-RING (1)/(2)	2
14	XA2273	BEARING, MAIN REAR (3)	1
15	BF0849	SNAP RING (3)	1
16	VE8122	SNAP RING, EXTERNAL	1
17		RING, SEAL (1)/(2)	2
18	XA2336	CAPSCREW	8
19	BF5366	LOCKWASHER	8
20	XA2334	PULLEY, FAN	1
21	BF5359	ADAPTER, PULLEY	1
22		RING, SEAL (1)/(2)	1
23	BF4032	PISTON	1
24		RING, SEAL (1)/(2)	1
25		WASHER, SPRING (1)	1
26		SHIM (1)/(2)	1
27	VE8128	SNAP RING, EXTERNAL (3)	1
28	VE8125	SNAP RING, EXTERNAL (3)	1
29	BF0885	HUB, SPLINED	1
30	VE1304	PLATE, CLUTCH (FACING) (3)	8
31		PLATE, CLUTCH (3)	8
32	VE8127	SNAP RING, INTERNAL (3)	1
33	XA2275	BEARING, MAIN FRONT (3)	1
34	VE8525	RETAINER, BEARING	1
35	BF0883	SEAL, OIL (2)	1
36		SLEEVE, WEAR (1)/(2)	1
37	VE8126	RETAINER/SEAL ASSEMBLY (2)	1
38	VE8123	BEARING, SLEEVE (3)	1
39	XA2274	HUB, FAN MOUNTING	1
40	XA2278	PIN, DOWEL - FRONT (3)	1
41	VE8524	BEARING, SLEEVE (3)	1
42	BF4043	CAP, END	1
42	XA2271	KIT, SEAL (3)	1
NS\|44		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|45	XA2271	(2) INCLUDED IN XA2271 SEAL KIT.	-1
NS\|46	EK2970	(3) INCLUDED IN EK2970 OVERHAUL KIT.	-1
NS\|47		(TO ORDER FAN CLUTCH ASSEMBLY LESS PULLEY,	-1
NS\|48		ORDER BF5364.)	-1
