ENGINE OIL RESERVE SYSTEM | AFE50-CE 830E S/N A30811-A30814 EPSA

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

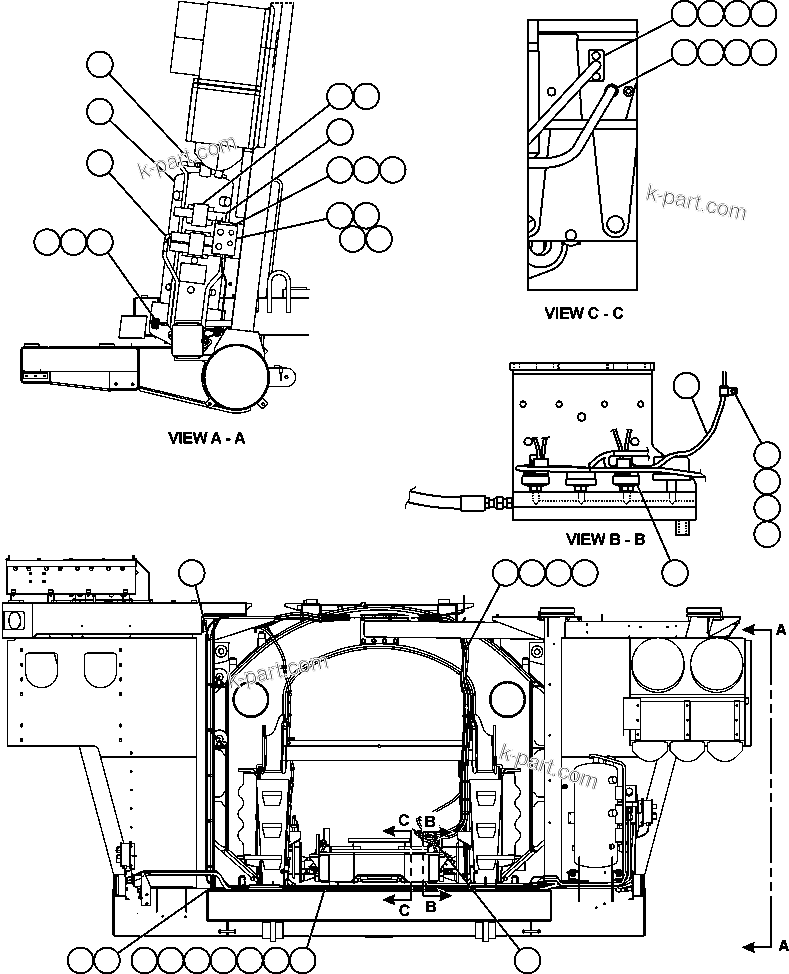

AFE50-CE 830E S/N A30811-A30814 EPSA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	WB0267	FITTING, ELBOW - 90 DEG	2
?	XA1894	TANK, OIL RESERVE (45 GALLON) (1)	1
?	WB0266	FITTING, ELBOW - 90 DEG	1
?	VN9068	CAPSCREW - 1" - 8NC X 2"	4
?	WA0364	FLAT WASHER - 1" (HARDENED)	8
?	VM2357	NUT - 1" - 8NC	4
?	BF3361	BOX, AUTOMATIC TANK FILL CONTROL (1)	1
?	EK0195	PLATE, MOUNTING	1
?	MM0036	CAPSCREW - M10 X 1.50 X 20	2
?	MM0713	FLAT WASHER - M10 (HARDENED)	4
?	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	4
?	C1546	FLAT WASHER - 1/4"	8
?	C5780	NUT - 1/4" - 20NC	4
?	SF9896	KNIFE, DISCONNECT - 14-16 AWG	14
?	DL4172	SLEEVE, INSULATING	7
?	WB0467	FITTING, STRAIGHT	1
?	HA7813	HOSE, SUPPLY	1
?	PC1918	ADAPTER, SUMP	1
?	HA7814	HOSE, RETURN	1
?	PC1262	ADAPTER, STRAIGHT	1
?	WA4896	FITTING	1
?	WB1301	CLAMP, CUSHIONED - 1/4"	19
?	MM0178	NUT, HEX - M10 X 1.50	25
?	MM0471	LOCKWASHER - M10	2
?	SG3290	SWITCH, PRESSURE	1
?	EL4104	CABLE (ENGINE TO BATTERY DISCONNECT SWITCH BOX)	1
?	MM0469	LOCKWASHER - M6	18
?	MM0460	FLAT WASHER - M8	18
?	MM0176	NUT, HEX - M6 X 1	18
?	WB3097	CLAMP, CUSHIONED - 1/2"	11
?	TF6925	CLAMP, VINYL - 3/4" I.D.	12
?	TC1565	CLAMP, VINYL - 15/16" I.D.	6
?	MM0648	STUD, WELD - M10 X 1.50 X 25	22
?	MM0461	FLAT WASHER - M10	22
?	VH5017	TIE, CABLE	30
?	TR9441	CLAMP, VINYL - 1 1/4" I.D.	12
?	EJ7758	ROD, THREADED	1
?	WB0653	FITTING, ELBOW - 45 DEG	1
?	WB0369	FITTING, ELBOW - 45 DEG	1
?		NOTE: NS = NOT SHOWN	-1
?	VH2583	TERMINAL, RING	12
?	VH2586	TERMINAL, RING	1
?	PC1641	NOTE: (1) INCLUDED IN PC1641 RESERVE SYSTEM KIT.	-1
?		SEE FOLLOWING PAGE.	-1
