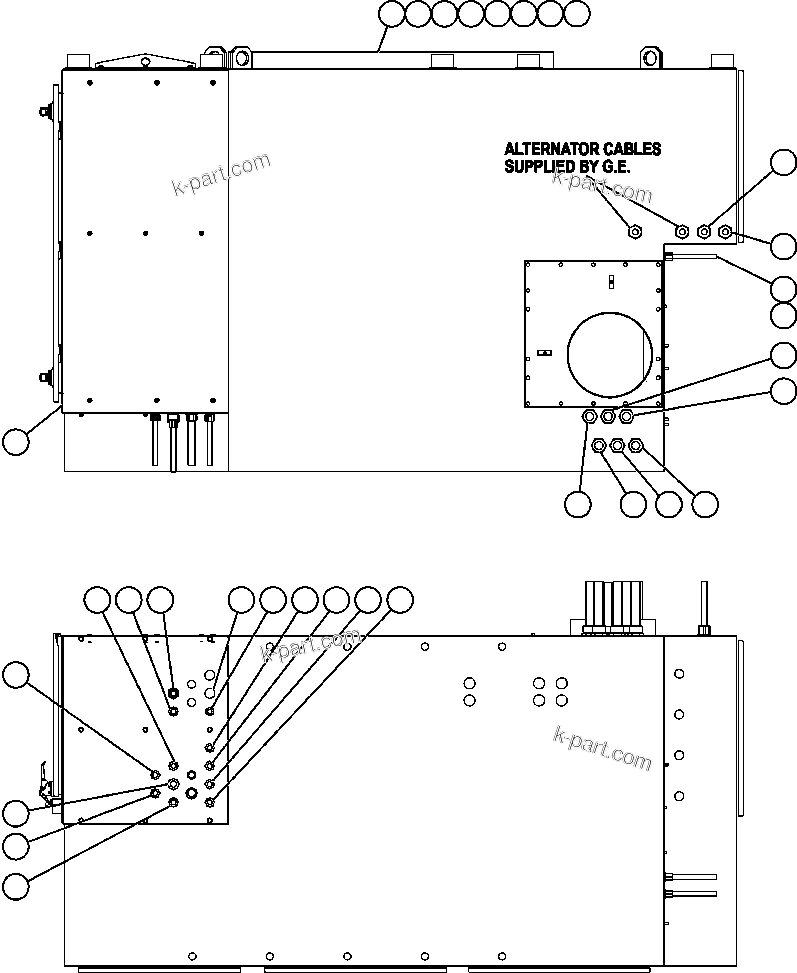

CONTROL CABINET WIRING (EXTERNAL) | AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PC0807	CABINET, CONTROL (SEE INDEX)	1	64234
?	EH7494	STRIP, SEAL	2
?	EH7495	STRIP, SEAL	2
?	EH7496	STRIP, SEAL	2
?	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	9
?	VC7836	FLAT WASHER - 1/2"	18
?	TR5445	LOCKWASHER - 1/2"	9
?	TR6643	NUT - 1/2" - 13NC	9
?	CH4902	CABLE - 74D	1
?	CH4901	CABLE - 71J	1
?	CH4314	CABLE, BATTERY - BLACK	1
?	CH4436	CABLE, BATTERY - RED	1
?	CH3914	CABLE - 7M1C	1
?	CH3913	CABLE - 7M1B	1
?	CH3912	CABLE - 7M1A	1
?	CH3915	CABLE - 7M2A	1
?	CH3916	CABLE - 7M2B	1
?	CH3917	CABLE - 7M2C	1
?	EK2192	CABINET, AUXILARY CONTROL (SEE INDEX)	1	60692
?	EJ9231	HARNESS, RIGHT FRAME RAIL	1
?	EH9351	HARNESS, LEFT FRAME RAIL	1
?	CH4515	CABLE, BATTERY - BLACK	1
?	CH4621	CABLE, BATTERY - RED	1
?	EK8932	HARNESS, SPEED/SUSPENSION	1
?	EJ9250	HARNESS, RIGHT DECK LIGHT	1
?	EK8931	HARNESS, CAB/AUXILARY BOX	1
?	EK2200	HARNESS, CAB/AUXILARY BOX - OVERHEAD	1
?	EK2198	HARNESS, CAB/AUXILARY BOX - GE	1
?		(NOT USED THIS APPLICATION)	-1
?	EK2199	HARNESS, CAB/AUXILARY BOX - DASH	1
?	EK3482	HARNESS, FLUID COMP/CC JUNCTION	1
?	EK2369	HARNESS, LEFT DECK LIGHT	1
?		NOTE: NS = NOT SHOWN	-1
?	EB3432	SLEEVE, SHRINK	12
?	TA7147	TERMINAL, RING	6
?	TA9770	TERMINAL, RING	6
?	VH2903	TERMINAL, RING	2
?	VH2904	TERMINAL, RING	2
?	WA5680	CORD GRIP	12
?	WB2971	CORD GRIP	4
?	VM5588	LOCKNUT, CONDULET - 3/4"	1
?	VZ1369	LOCKNUT, CONDULET - 1"	1
