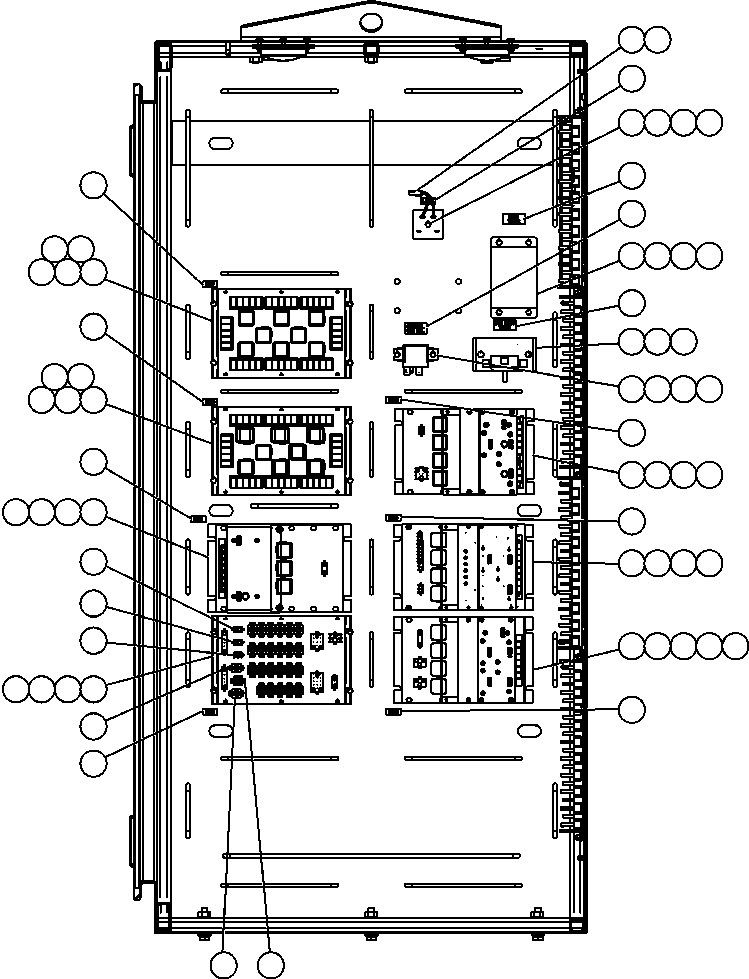

AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

32 33 34 4 6 35 36 1 31 2 29 28 3 4 5 6 6 5 4 7 30 9 10 11 29 28 4 5 6 8 6 5 4 12 27 4 5 6 13 26 6 5 4 14 25 4 5 6 15 24 23 4 5 6 16 37 19 6 5 4 17 22 18 20 21

#	Part Number	Partname	Quantity	Reference
1	WB2281	NAME PLATE - LUBE TIMER	1
2	WB2289	NAME PLATE - CONTROL POWER RELAY	1
3	PC0337	TIMER - 24 VOLT	1
4	MM0459	FLAT WASHER - M6	33
5	MM0379	LOCKWASHER - M5 (EXTERNAL TOOTH)	32
6	MM0373	NUT - M5 X .8	33
7	WB2282	NAME PLATE - BAR PRESSURE TRANSDUCER	1
8	PB7276	RELAY - 50 AMP	1
9	PB9744	TRANSDUCER, PRESSURE	1
10	MM0207	LOCKWASHER - M6 (INTERNAL TOOTH)	2
11	MM0176	NUT - M6 X 1.00	2
12	EC8821	NAME PLATE - RB3	1
13	EK3803	BOARD, RELAY - RB3 (SEE FIG 55612)	1	55612
14	EC8822	NAME PLATE - RB4	1
15	EK3806	BOARD, RELAY - RB4 (SEE FIG 55612)	1	55612
16	EK3811	BOARD, RELAY - RB5 (SEE FIG 55612)	1	55612
17	EC8823	NAME PLATE - RB5	1
18	EC8825	NAME PLATE - DB1	1
19	EK4993	BOARD, DIODE - DB1 (SEE FIG 55613)	1	55613
20	EG0664	RESISTOR - 270 OHM	1
21	SM3124	DIODE	1
22	EG8333	RESISTOR - 20 OHM	1
23	EH7284	RESISTOR/CAPACITOR	1
24	EH7285	RESISTOR	1
25	EH7286	RESISTOR	1
26	EK3808	BOARD, RELAY - RB1 (SEE FIG 55612)	1	55612
27	EC8819	NAME PLATE - RB1	1
28	EK4991	BOARD, RELAY - RB6/RB7 (SEE FIG 55613)	2	55613
29	SM3189	RELAY	16
30	EC8824	NAME PLATE - RB6	1
31	WB2280	NAME PLATE - RB7	1
32	EG2362	RESISTOR	1
33	EG2363	HOUSING	1
34	WB2819	NAME PLATE - LLDT	1
35	PB9972	TIMER	1
36	MM0469	LOCKWASHER - M6	1
37	EJ8332	HARNESS, L/R DECK HEAD LIGHTING	1
