CAB ASSEMBLY - 1 (EL0059) | AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

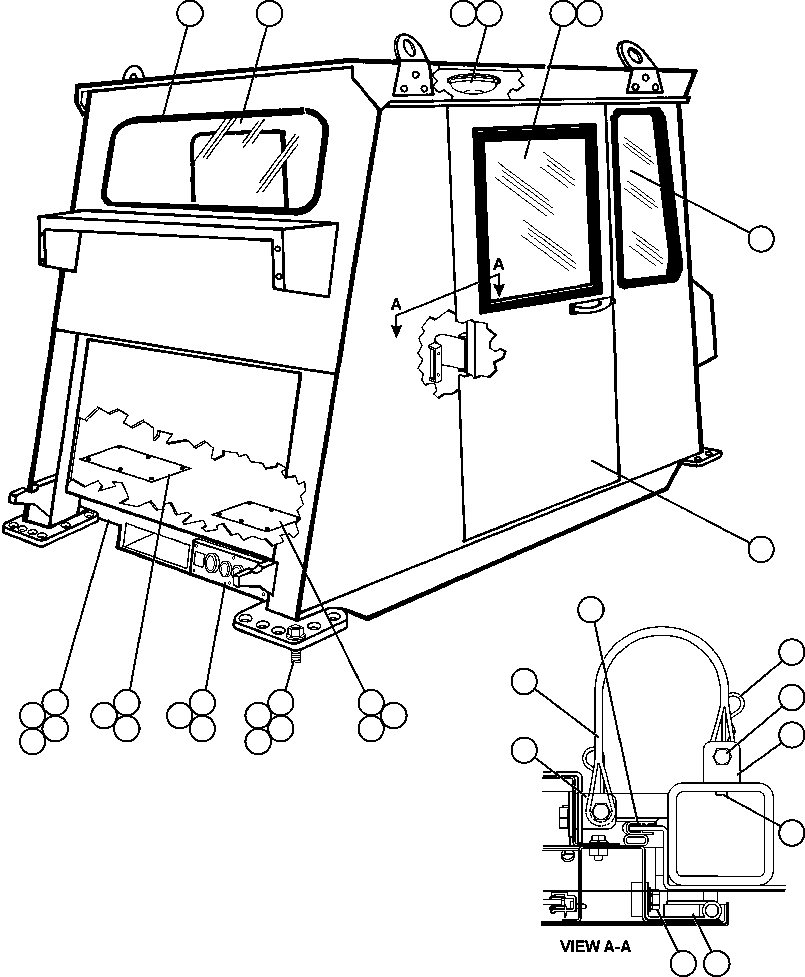

2 1 4 3 7 8 5 6 24 23 20 22 16 25 9 27 12 25 15 11 29 14 17 26 10 28 13 21 26 30 21 18 18 19

#	Part Number	Partname	Quantity	Reference
1	SM1094	GLASS, REAR	1
2	SM2045	CHANNEL, RUBBER	1
3	VE5837	LIGHT, DOME	1
3	VE8635	LENS, PLASTIC	1
3	VE8636	SWITCH	1
4	VZ1912	BULB	1
5	SM2879	GLASS, FRONT - R.H.	1
6	SM5949	DOOR ASSEMBLY - R.H. (SEE FIG 60554)	1	60554
7	PC0841	WINDOW ASSEMBLY	1
8	SM2265	GLASS	1
9	EJ7350	PLATE, CONNECTOR (SEE FIG 60686)	1	60686
10	MM0027	CAPSCREW - M6 X 1.00 X 25	8
11	MM0469	LOCKWASHER - M6	8
12	SM4419	PLATE, ACCESS - R.H. FLOOR	1
13	MM0595	CAPSCREW - M8 X 1.25 X 30	4
14	MM0470	LOCKWASHER - M8	4
15	SM2189	PLATE, ACCESS - L.H. FLOOR	1
16	SM0991	PLATE, FRONT ACCESS - BRAKE AND STEERING PIPING	1
17	SM0992	PLATE, REAR ACCESS - BRAKE AND STEERING PIPING	1
18	31154R1	CAPSCREW - M8 X 12	14
19	SM2402	SEAL, DOOR	1
20	SM2167	STRAP, DOOR CHECK	2
21	SM2165	BRACKET, DOOR STRAP	2
22	SM2168	CAPSCREW, DRILLED	4
23	SM2322	CLIP, HAIRPIN	4
24	SM2582	SEAL, INNER DOOR	2
25	MM0471	LOCKWASHER - M10	20
26	MM0606	CAPSCREW - M10 X 1.50 X 30	20
27	MM0074	CAPSCREW - M24 X 3.00 X 70	32
28	01643-32460	FLAT WASHER - M24 (HARDENED)	32
29	EL1949	SHIM, FRONT - 1 MM	-1
30	EL1950	SHIM, REAR - 1 MM	-1
NS\|33		NOTE: NS = NOT SHOWN	-1
NS\|34	SM2391	PLATE, COVER	1
NS\|35	MM0606	CAPSCREW - M10 X 1.50 X 30	5
NS\|36	MM0471	LOCKWASHER - M10	5
