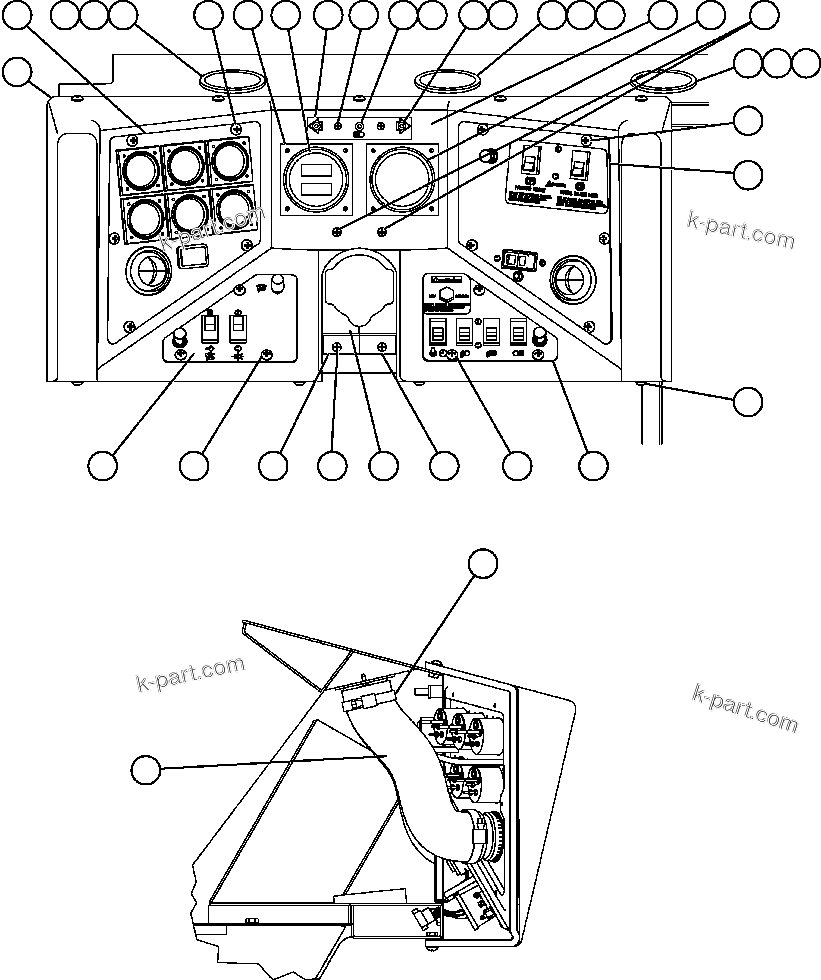

INSTRUMENT PANEL ASSEMBLY | AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	SM1082	PANEL, INSTRUMENT	1
?	EJ9550	DASH MODULE, UPPER L.H. (SEE FIG 60760) (1)	1	60760
?	PB8320	ADAPTER	8
?	PB8319	LOUVER	8
?	SM2406	SCREW, SELF-TAPPING - #6 - 32NC X 3/8"	16
?	PB6402	KIT, BEZEL OVERLAY	2
?	PC1175	SPEEDOMETER/DISPLAY	1
?	TY8743	PANEL, BLANK INSERT	1
?	WA4605	SCREW, PHILLIPS - #10 - 24NC X 1/2"	2
?	TW3834	INDICATOR, HIGH BEAM	1
?	VZ5080	BULB	3
?	TW5472	INDICATOR, TURN	2
?	WA6639	LEXAN OVERLAY, TURN SIGNAL	1
?	PB6984	TACHOMETER, DIGITAL	1
?	PB8658	SCREW, PANEL - M6 X 1.00	2
?	EJ9547	DASH MODULE, UPPER R.H. (SEE FIG 60758) (1)	1	60758
?	EJ9549	DASH MODULE, LOWER R.H. (SEE FIG 60759) (1)	1	60759
?	SM1088	PLATE, R.H. RETAINER	1
?	TX7829	SEAL, STEERING COLUMN	1
?	SM0926	SCREW, PANEL - M6 X 1.00	18
?	SM1086	PLATE, L.H. RETAINER	1
?	EL2784	DASH MODULE, LOWER L.H. (SEE FIG 60761) (1)	1	60761
?	SM2783	HOSE, AIR	2
?	CC6103	CLAMP	4
?	SM5367	SCREW, PANEL - M6 X 1.00 X 20	9
?		NOTE: (1) NOT SERVICED AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1
