AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PC1375	SWITCH, PUSH - PULL	1
?	WB3428	PLATE, STARTER DISCONNECT	1
?	MM0341	MACHINE SCREW - M4 X 0.7 X 10	14
?	MM0378	LOCKWASHER - M4	12
?	WB3429	PLATE, PROPEL DISCONNECT	1
?	PC2527	LEVER, LOCKOUT	1
?	EC1725	SWITCH	2
?	SG3408	NUT - #10 - 24NC	3
?	DC3101	LOCKWASHER - #10	3
?	VC5344	FLAT WASHER - #10	3
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	4
?	TR4436	FLAT WASHER - 3/8"	8
?	TC1231	LOCKWASHER - 3/8"	4
?	TC1233	NUT - 3/8" - 16NC	4
?	EH7492	BUS BAR	2
?	DF3500	LOCKNUT - 1/2" - 13NC	4
?	VF5369	JAM NUT - 1/2" - 13NC	4
?	EM6489	BUS BAR	2
?	EM6493	HARNESS, ISOLATION BOX	1
?	PC2528	SWITCH	1
?	TR1306	CAPSCREW - 1/4" - 20NC X 1"	8
?	MM0594	CAPSCREW - M8 X 1.25 X 25	4
?	MM0470	LOCKWASHER - M8	4
?	MM0460	FLAT WASHER - M8	4
?	EK9945	PLATE, BENT	2
?	WB3427	PLATE, MASTER DISCONNECT	1
?	WB3432	DECAL, PUSH BUTTON	1
?	TD1549	NUT - 1/4" - 20NC	8
?	DC3584	LOCKWASHER - 1/4"	8
?	VN9773	FLAT WASHER - 1/4"	8

Komatsu AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES parts catalog PDF

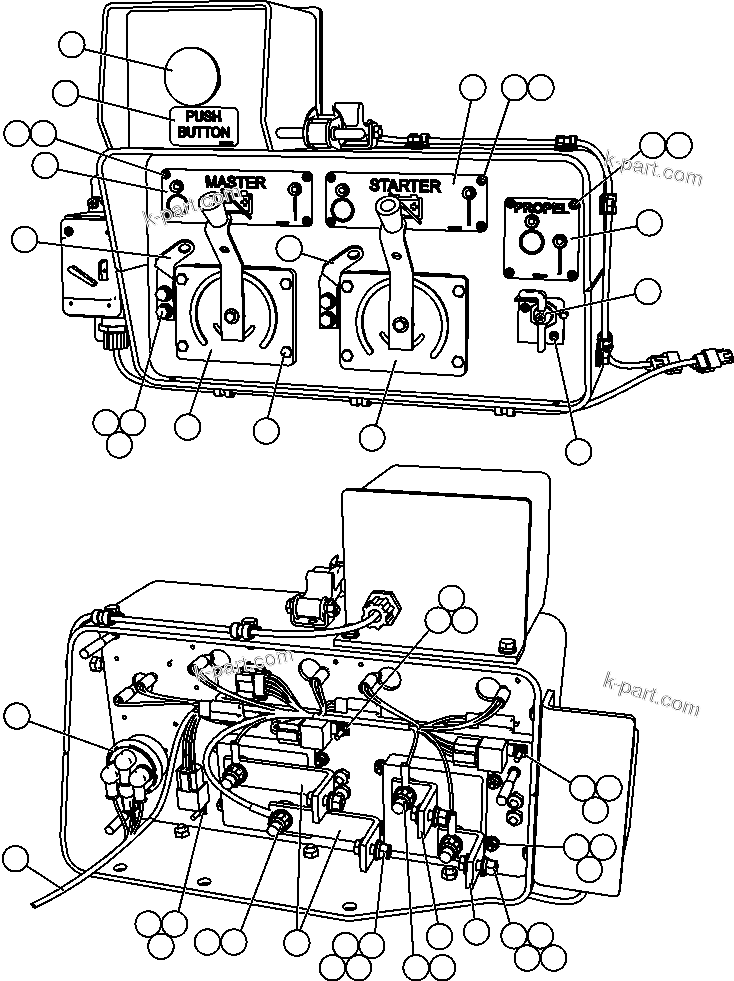

ISOLATION BOX 2/2 (EM6484) (42413) in AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES. Diagram image and parts list.
