AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	WB3298	NAME PLATE - GROUND LEVEL POWER RELAY	1
?	MM0352	MACHINE SCREW - M5 X .8 X 25	24
?	MM0373	NUT - M5 X 0.8	24
?	MM0459	FLAT WASHER - M6	30
?	MM0379	LOCKWASHER - M5	30
?	EH7285	RESISTOR	1
?	EH7284	RESISTOR/CAPACITOR	1
?	EH3010	NAME PLATE - PVM	1
?	PB7276	RELAY - 24V, 50 AMP	4
?	EK7545	HARNESS, AUXILIARY BOX/ENGINE INTERFACE	1
?	PC0606	ENGINE ECM MODULE	1
?	WB2835	NAME PLATE - KEY SWITCH POWER RELAY	1
?	EM8007	HARNESS, AUXILIARY CONTROL CABINET INTERNAL	1
?	EF6927	RESISTOR (22,100 OHM)	1
?	TS0299	RESISTOR (2 KOHM, 2W)	1
?	EK0744	DIODE, 40 AMP	2
?	EK7515	BRACKET, INSULATED	1
?	TR6643	NUT - 1/2" - 13NC	2
?	TR5445	LOCKWASHER - 1/2"	2
?	MM0176	NUT - M6 X 1.00	6
?	MM0469	LOCKWASHER - M6	6
?	EK7516	BUS BAR	1
?	MM0025	CAPSCREW - M6 X 1.00 X 20	6
?	EC8825	NAME PLATE - DB1	1
?	EC8824	NAME PLATE - RB6	1
?	WB2280	NAME PLATE - RB7	1
?	WB3237	NAME PLATE - RB9	1
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	1
?	EK4993	DIODE BOARD ASSEMBLY - DB1 (SEE FIG 55613)	1	55613
?	EK4991	RELAY BOARD ASSEMBLY - RB6 (SEE FIG 55613)	4	55613
?	PC2667	TIMER, AUTO LUBE	1
?	7861-92-5330	SENSOR, ANGLE	1
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	3
?	TR9008	JAM NUT - 3/8" - 16NC	3
?	TC1231	LOCKWASHER - 3/8"	4
?	TR4436	FLAT WASHER - 3/8"	4
?	WB2733	NAME PLATE - RB8	1
?	EL7628	NAME PLATE - INCLINOMETER	1
?	WB2836	NAME PLATE - 12V POWER RELAY	1
?	WB2289	NAME PLATE - CONTROL POWER RELAY	1
?	WB2281	NAME PLATE - LUBE TIMER	1
?	EG8333	RESISTOR - 20 OHM	1
?	SM3124	DIODE	1
?	EG0664	RESISTOR - 270 OHM	1
?	EH7286	RESISTOR	1
?	TC1233	NUT - 3/8" - 16NC	1
?	EL7629	NAME PLATE - GB32	1
?	ED0913	ROD, THREADED - 1/4"	4
?	TD1549	NUT - 1/4" - 20NC	4
?	DC3584	LOCKWASHER - 1/4"	8
?	TR1307	FLAT WASHER - 1/4"	8
?	MM0019	CAPSCREW - M6 X 1.00 X 16	4

Komatsu AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES parts catalog PDF

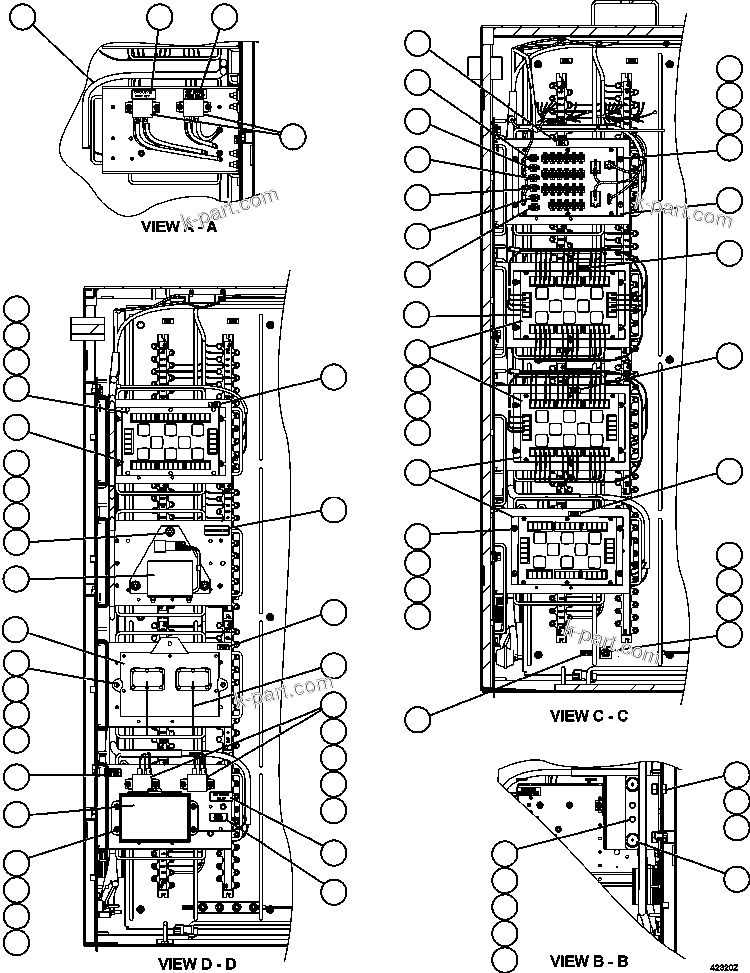

AUXILIARY CONTROL CABINET COMPONENTS - LH WALL 2/2 (42320) in AFE57-CB 830E-1AC S/N A30340 - A30343 FELIX RESOURCES. Diagram image and parts list.
