AFE57-AT 830E-1AC S/N A30182, A30186-A30187, A30191-A30193 CARDINAL RIVER / NORTH AMERICAN CONSTRUCTION

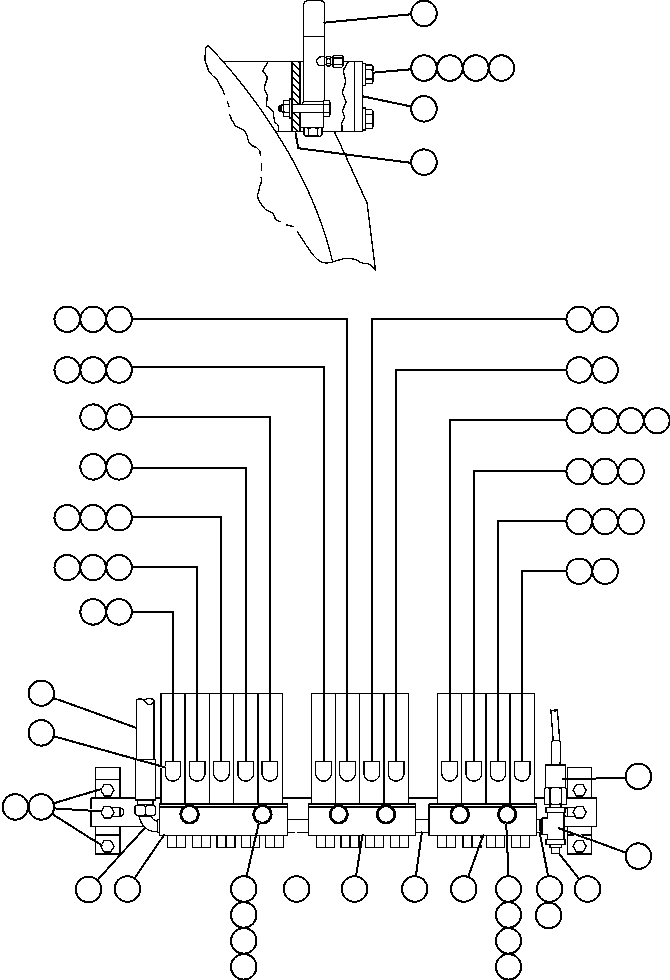

3 9 10 11 12 8 7 36 35 32 33 34 36 35 32 30 31 34 33 26 27 28 29 31 30 23 24 25 25 24 23 20 21 22 22 21 20 18 19 19 18 17 16 15 40 39 13 2 4 14 1 14 1 4 37 42 38 5 5 41 6 6 40 40

#	Part Number	Partname	Quantity
1	VW7989	INJECTOR (4 PIECE) (1)	2
1	XA2520	NIPPLE AND CAP ASSEMBLY	8
2	TA4411	INJECTOR (5 PIECE) (1)	1
2	XA2520	NIPPLE AND CAP ASSEMBLY	5
3	VW7990	CAP, PROTECTIVE	13
4	MM0611	CAPSCREW - M10 X 1.50 X 60	6
5	MM0461	FLAT WASHER - M10	6
6	MM0178	NUT - M10 X 1.50	6
7	EJ4053	MOUNT, INJECTORS	1
8	EG0583	PLATE, COVER	1
9	TA1232	SPACER	2
10	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
11	C1624	CAPSCREW - 1/2" - 13NC X 4"	2
12	C1540	LOCKWASHER - 1/2"	6
13	R2508	FITTING, TEE	1
14	TB8803	NIPPLE	2
15	PC1654	SWITCH, PRESSURE	1
16	WB0252	FITTING, ELBOW - 90 DEG	13
17	HA0478	HOSE, GREASE SUPPLY (SEE REF. NO. 1 ON PRECEDING PAGE)	1
18	HA1413	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
19	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF REAR SUSPENSIONS)	2
19	C1231	COUPLING (AT BOTTOM OF REAR SUSPENSIONS)	2
19	DC5608	NIPPLE (AT BOTTOM OF REAR SUSPENSIONS)	2
20	HA1517	HOSE (TO TOP OF HOIST CYLINDERS)	2
21	WB0454	FITTING, STRAIGHT ADAPTER (AT TOP OF HOIST CYLINDERS)	2
22	DC5608	NIPPLE (TO TOP OF HOIST CYLINDERS)	2
23	HA0994	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
24	C1231	COUPLING (AT BOTTOM OF HOIST CYLINDERS)	2
25	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
26	HA8283	HOSE (TO DRIVE AXLE PIVOT PIN)	1
27	WB0454	FITTING, STRAIGHT ADAPTER (AT DRIVE AXLE PIVOT PIN)	1
28	C1231	COUPLING (AT DRIVE AXLE PIVOT PIN)	1
29	WB0252	FITTING, ELBOW - 90 DEG (AT DRIVE AXLE PIVOT PIN)	1
30	HA1413	HOSE (TO ANTI-SWAY BARS)	2
31	WB0281	FITTING, ELBOW - 45 DEG (AT ANTI-SWAY BARS)	2
32	VD4661	HOSE (TO BODY PIVOTS)	2
33	WB0454	FITTING, STRAIGHT ADAPTER (AT TOP OF REAR SUSPENSIONS)	2
33	DC5608	NIPPLE (AT TOP OF REAR SUSPENSIONS)	2
34	HA1416	HOSE (TO TOP OF SUSPENSIONS)	2
35	HC1580	BUSHING (AT BODY PIVOT PINS)	2
36	WB0252	FITTING, ELBOW - 90 DEG (AT BODY PIVOT PINS)	2
37	R0086	BUSHING, PIPE	1
38	WB0262	FITTING, ELBOW - 90 DEG	1
39	MM0606	CAPSCREW - M10 X 1.50 X 30	6
40	MM0471	LOCKWASHER - M10	12
41	R2510	NIPPLE	1
42	C5769	PLUG, PIPE - 1/4"	1
NS\|48		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1

Komatsu AFE57-AT 830E-1AC S/N A30182, A30186-A30187, A30191-A30193 CARDINAL RIVER / NORTH AMERICAN CONSTRUCTION parts catalog PDF

AUTOMATIC LUBRICATION SYSTEM ( 3/3) (42192) in AFE57-AT 830E-1AC S/N A30182, A30186-A30187, A30191-A30193 CARDINAL RIVER / NORTH AMERICAN CONSTRUCTION. Diagram image and parts list.
