AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	WB0537	FITTING, ELBOW - 45 DEG	4
?	EL8892	TUBE	1
?	C1608	CAPSCREW - 7/16" - 14NC X 1"	3
?	C5775	LOCKWASHER - 7/16"	3
?	PB1255	FLAT WASHER - 7/16"	3
?	TF8077	CLAMP, SPLIT FLANGE	6
?	VG9097	O-RING	3
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	20
?	C0312	LOCKWASHER - 3/8"	20
?	EL8891	TUBE	1
?	PB6908	AMPLIFIER, FLOW (SEE INDEX)	1	41657
?	EL9874	TUBE	1
?	H9914	CAPSCREW - 5/16" - 18NC X 5"	6
?	WA4709	CLAMP, HYDRA-ZORB - 1 1/4"	1
?	WA4708	CLAMP, HYDRA-ZORB - 1"	1
?	EL9872	TUBE	1
?	EJ7766	BRACKET, BASE	2
?	PC1118	BASE, RING	2
?	MM0071	CAPSCREW - M16 X 2.00 X 45	8
?	MM0464	FLAT WASHER - M16	32
?	MM0696	LOCKNUT - M16 X 2.00	16
?	MM0086	CAPSCREW - M16 X 2.00 X 60	8
?	EC3036	CLAMP, HALF	4
?	C1547	FLAT WASHER - 3/8"	8
?	PC1811	BLADDER ACCUMULATOR - 12.5 GAL (SEE INDEX)	2	60678
?	WB0574	FITTING, STRAIGHT ADAPTER	1
?	TF3237	CLAMP, SPLIT FLANGE	2
?	VG9096	O-RING	1
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	4
?	PC0235	MANIFOLD, BLEEDDOWN (SEE INDEX)	1	41392
?	EG3874	CLAMP	2
?	HA8301	HOSE	1
?	HA6765	HOSE	1

Komatsu AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL parts catalog PDF

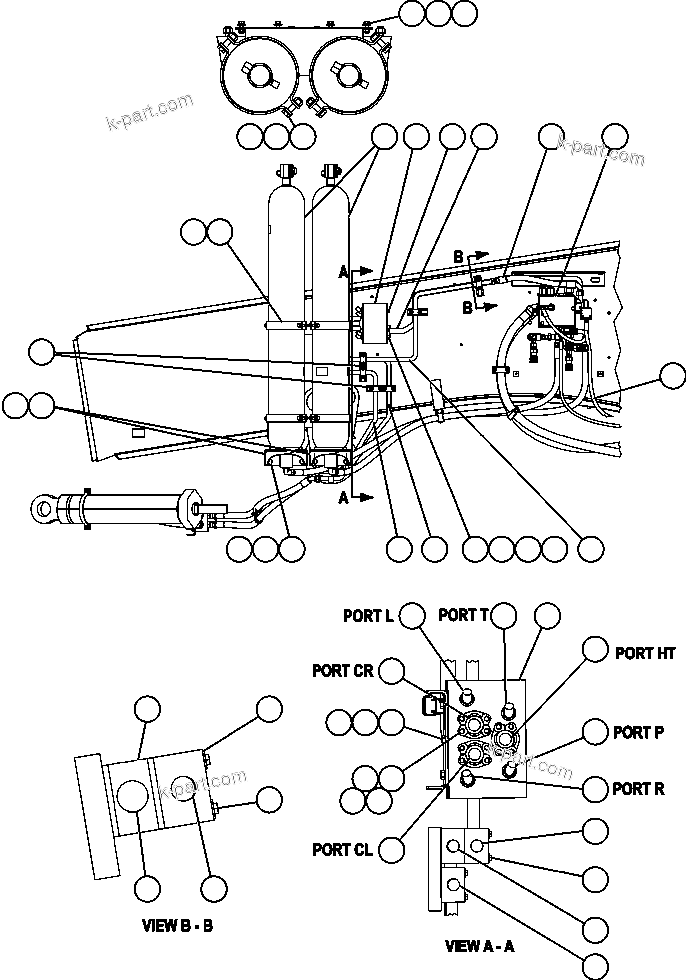

STEERING PIPING - 1 (42065) in AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL. Diagram image and parts list.
