AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE9591	SPRING	2
?	VE9586	SEAL (1)	1
?	VE9581	RING, PISTON (1)	1
?	XA0203	SLEEVE (1)	1
?	VE9580	RING, BACKUP (1)	2
?	VE9583	O-RING (1)	1
?	VE9585	O-RING (1)	1
?	VE9579	PIN	1
?	VE9582	RING, BACKUP (1)	1
?	VE9553	BARREL, CYLINDER (3)	1
?	VE9577	PISTON	1
?		BALL (3)/(4)	1
?	VE9554	PISTON SHOE ASSEMBLY (3)	9
?	VE9574	RING, RETAINER	4
?	VE9575	WASHER	2
?	VE9573	PIN	2
?	VE7572	LINK	1
?	VE9584	PIN	1
?	VE9564	PIN, DOWEL	2
?	VE9559	SADDLE	1
?	VE9539	SEAL, O-RING (2)	1
?	VE9533	PIN, ROLL	1
?	BF2617	PIN, ROLL	4
?	BF2616	BEARING	2
?	BF3176	SWASH BLOCK (W/ PIN)	1
?	VE9531	BEARING, CYLINDER	1
?		RETAINER (3)/(4)	1
?	VE9556	SPRING (3)	9
?	XA1990	NOTE: (1) INCLUDED IN XA1990 CONTROL PISTON KIT.	-1
?	BF1369	(2) INCLUDED IN BF1369 HOUSING KIT.	-1
?		(3) INCLUDED IN VE9552 ROTARY SUB-ASSEMBLY.	-1
?		(4) NOT SERVICED SEPARATELY.	-1

Komatsu AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL parts catalog PDF

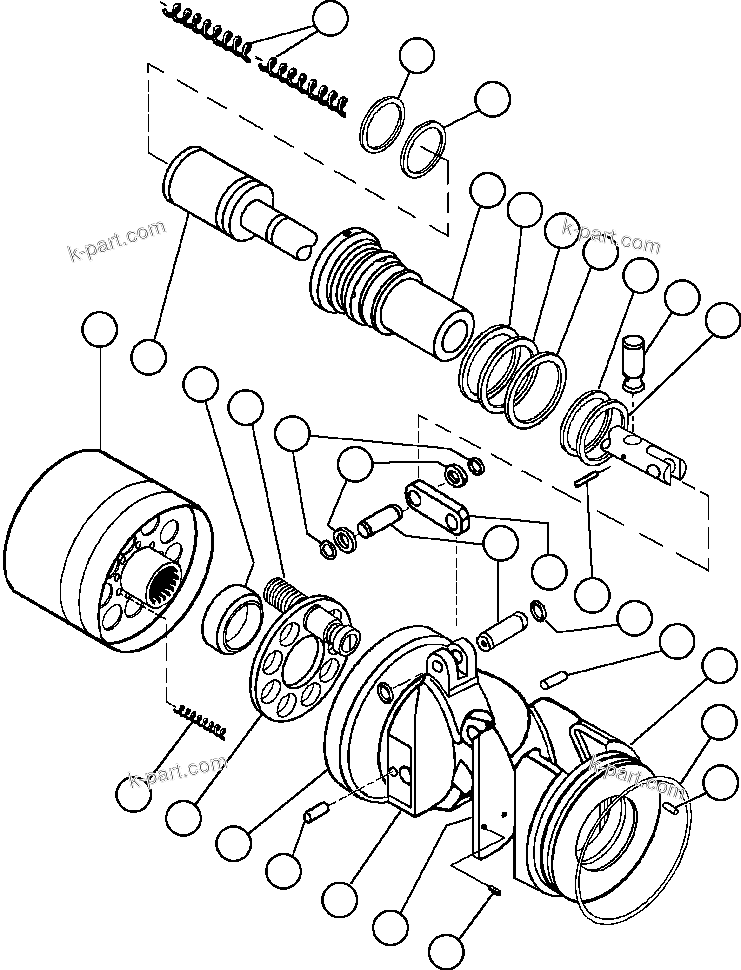

STEERING PUMP ROTATING GROUP (PC1141) (40732) in AFE57-AA 830E-AC S/N A30106 - A30108 ELK VALLEY COAL. Diagram image and parts list.
