AFE57-CV 830E-1AC S/N A30461 - A30463 & A30470 - A30472 BARRICK BALD MOUNTAIN

24 23 4 19 18 27 29 28 15 26 2 14 13 1 20 3 21 3 22 1 11 5 7 30 25 6 9 8 12 10 16 15 17

#	Part Number	Partname	Quantity	Reference
1	31127R1	CAPSCREW - M6 X 1.00 X 12	12
2	SM0926	SCREW - M6 X 1.00	3
3	MM0469	LOCKWASHER - M6	3
4	SM2405	SEAL, WINDOW (INSIDE)	1
5	SM2548	SEAL, DOOR	1
6	EL2730	FRAME, DOOR - LH	1
7	TV6025	CAPSCREW - 1/4" - 20NC X 1 1/2" (STRIKER)	1
8	VN2882	JAM NUT - 1/4" - 20NC	1
9	KD0252	MACHINE SCREW	4
10	SD4235	LOCKWASHER - 1/4" (EXTERNAL TOOTH)	4
11	EL2746	INNER PANEL ASSEMBLY, LH (SEE INDEX)	1	55947
12	TG9225	LOCKNUT - 3/8" - 16NC	1
13	MM0357	MACHINE SCREW - M6 X 1.00 X 12	1
14	PC2166	WINDOW ASSEMBLY	1
14	EL2724	GLASS	1
14	BF5190	RUN, GLASS - TOP	1
14	BF5191	RUN, GLASS - SIDE	2
15	BF5189	BOTTOM FRAME ASSEMBLY	1
16	BF5194	SEAL, OUTSIDE - RUBBER FLOCK	1
17	BF2744	COVER, SCREW	1
18	SM2406	SCREW, SELF-TAPPING - #6 - 32NC X 3/8"	22
19	2048889R1	TRIM, BULK	-1
20	PC1828	HANDLE, PUSH BUTTON	1
21	31126R1	SCREW, MACHINE - M6 X 20	2
22	31006R1	SCREW, MACHINE - M6 X 16	1
23	SM2544	HINGE, DOOR	1
24	31154R1	CAPSCREW - M8 X 1.25 X 12	10
25	SM2297	LATCH DOOR ASSEMBLY - LH	1
26	SM2263	LEVER, DOOR LATCH	1
27	SM2264	KNOB, DOOR LATCH	2
28	SM2354	SCREW - #10 - 24NC	1
29	SM2355	LOCKNUT - #10 - 24NC	1
30	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	1
NS\|34		NOTE: NS = NOT SHOWN	-1
NS\|35	SM2256	KEY, DOOR (1)	1
NS\|36		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE57-CV 830E-1AC S/N A30461 - A30463 & A30470 - A30472 BARRICK BALD MOUNTAIN parts catalog PDF

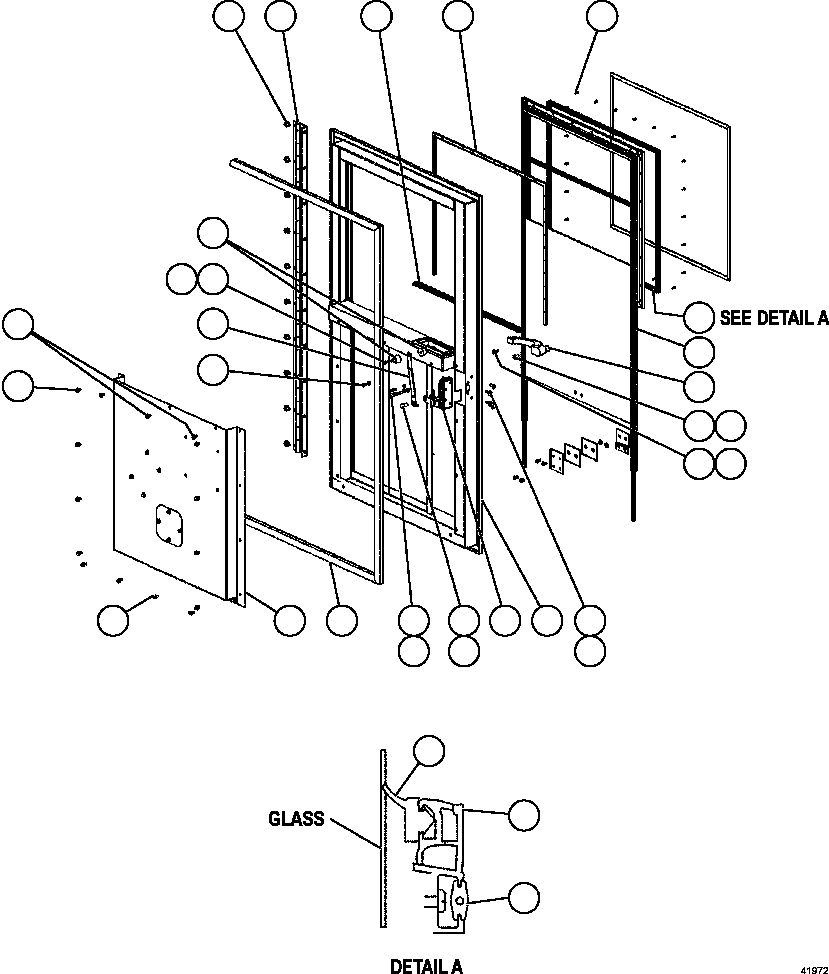

DOOR - LH (EM0048) (41972) in AFE57-CV 830E-1AC S/N A30461 - A30463 & A30470 - A30472 BARRICK BALD MOUNTAIN. Diagram image and parts list.
