AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	CH5435	CABLE (RED)	1
?	PC0247	CAP, TERMINAL (RED)	4
?	PC0246	CAP, TERMINAL (BLACK)	4
?	CH3808	CABLE (RED)	2
?	CH5720	CABLE (BLACK)	1
?	CH5436	CABLE (RED)	1
?	CH5721	CABLE (BLACK)	1
?	VZ0639	BATTERY	4
?	VP5374	PLUG, BUTTON	1
?	08038-00035	CAP, TERMINAL	5
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	5
?	TR4436	FLAT WASHER - 3/8"	10
?	TC1231	LOCKWASHER - 3/8"	5
?	TC1233	NUT - 3/8" - 16NC	5
?	PC0291	INSULATOR, CENTER POST	1
?	VC1387	CAPSCREW - 1/2" - 13NC X 1"	2
?	TR5445	LOCKWASHER - 1/2"	2
?	TR6008	FLAT WASHER - 1/2"	2
?	EM7151	BUS BAR	1
?	WA2859	GROMMET, RUBBER	2
?	VZ1369	LOCKNUT, CONDULET	4
?	EM7152	BUS BAR	1
?	VZ2686	INSULATOR, STAND OFF	1

Komatsu AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE parts catalog PDF

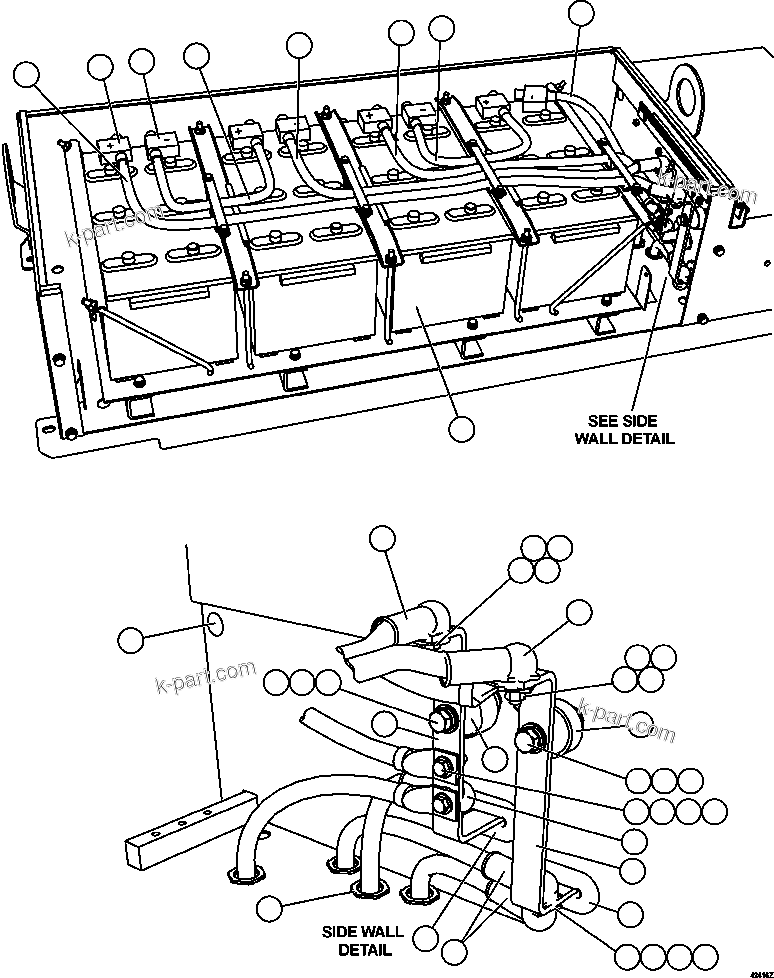

BATTERY BOX ( 3/5) (42416) in AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE. Diagram image and parts list.
