AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	AK7552	HOUSING ASSEMBLY, UNIVERSAL (1)/(2)/(3)/(4)	1
?	AK7575	BULB, LIGHT - 24V/65W (1)/(2)/(4)	1
?	AK1284	BULB, LIGHT - 24V/100W (3)	1
?	AK7554	SPRING, BULB RETAINER (1)/(2)/(3)/(4)	1
?	AK7534	LENS/REFLECTOR - FLOOD - CLEAR (WITHOUT BULB) (1)	1
?	AK3337	LENS/REFLECTOR - FLOOD - CLEAR (WITHOUT BULB) (2)/(3)	1
?	AK7535	LENS/REFLECTOR - SERVICE - CLEAR (W/O BULB) (4)	1
?	AK7556	GASKET (MULTIPAK 10)	1
?	AK7559	BEZEL	1
?	AK7561	SCREW	3
?	AK7560	KIT, HARDWARE	1
?		NOTE: (1) INCLUDED IN AK7503 FLOOD LIGHT ASSM.	-1
?		(2) INCLUDED IN AK7519 FLOOD (BACKUP) LIGHT ASSM.	-1
?		(3) INCLUDED IN AK7513 FLOOD (BACKUP) LIGHT ASSM.	-1
?		(4) INCLUDED IN AK7504 SERVICE (WORK) LIGHT ASSM.	-1
?		(ALL PARTS ARE COMMON, EXCEPT WHERE INDICATED.)	-1

Komatsu AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE parts catalog PDF

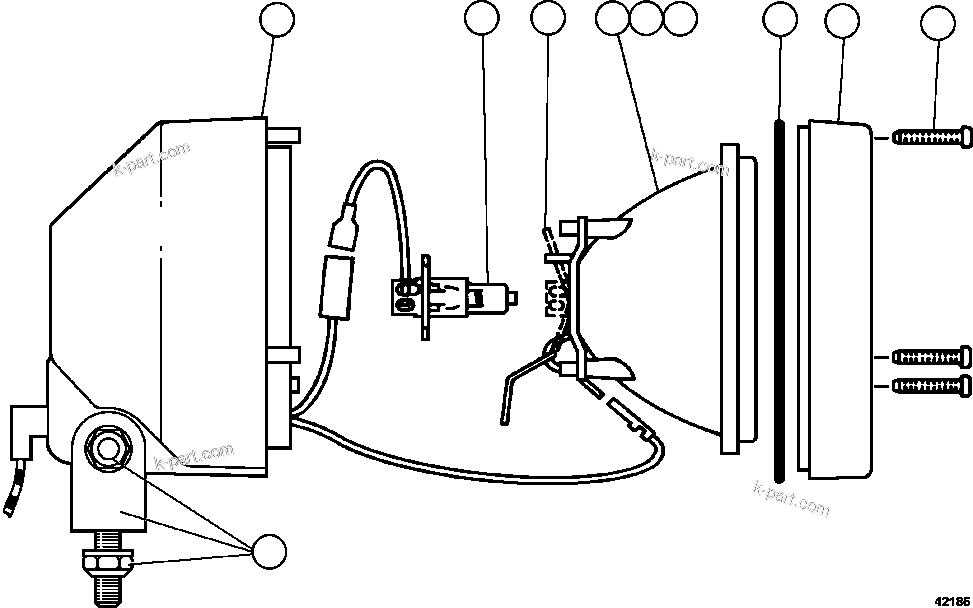

LIGHT ASSEMBLY (SUPER HALOGEN) 2/2 (42185) in AFE57-CX 830E-1AC S/N A30505 - A30506 HIBBING TACONITE. Diagram image and parts list.
