AFE57-HT 830E-1AC S/N A40966, A40987 & A40990 - A40992 SEVERSTAL

32 27 26 24 28 4 37 36 15 5 1 3 2 17 22 23 31 30 6 7 19 20 16 25 29 21 18 35 8 9 34 33 14 10 12 13 13 11 11

#	Part Number	Partname	Quantity	Reference
1	58E-54-10121	INNER PANEL ASSEMBLY, LH (SEE INDEX)	1	61751
2	SM0926	SCREW - M6 X 1.00	3
3	WB3559	CAPSCREW - M6 X 1.00 X 12	12
4	SM2548	SEAL, DOOR	1
5	EL2730	FRAME, DOOR - LH	1
6	SM2544	HINGE, DOOR	1
7	WB3560	CAPSCREW - M8 X 1.25 X 12	10
8	EL5788	CHANNEL, WINDOW LIFT	1
9	31006R1	MACHINE SCREW - M6 X 16	4
10	SM2832	BRACKET, WINDOW LIFT	1
11	SM2261	GASKET	2
12	MM0462	FLAT WASHER - M12	2
13	EM7654	BUSHING, NYLON	4
14	EL5721	BRACKET, OUTER	1
15	SM2297	LATCH DOOR ASSEMBLY - LH	1
16	SM2263	LEVER, DOOR LATCH	1
17	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	1
18	TG9225	LOCKNUT - 3/8" - 16NC	1
19	SM2264	KNOB, DOOR LATCH	2
20	SM2354	SCREW - #10 - 24NC	1
21	SM2355	LOCKNUT - #10 - 24NC	1
22	KD0252	MACHINE SCREW - 1/4" - 20NC X 3/4"	4
23	SD4235	LOCKWASHER - 1/4" (EXTERNAL TOOTH)	4
24	PC1828	HANDLE, PUSH BUTTON	1
25	MM0176	NUT - M6 X 1.00	1
26	MM0584	CAPSCREW - M6 X 1.00 X 30	1
27	XB0815	PLATE	1
28	WB3550	SCREW, MACHINE - M6 X 20	3
29	SM2406	SCREW, SELF-TAPPING - #6 - 32NC X 3/8"	22
30	SM2405	SEAL, WINDOW (INSIDE)	1
31	2048889R1	TRIM, BULK	-1
32	58E-54-10100	WINDOW ASSEMBLY	1
33	58E-98-10530	FILLER	1
34	58E-98-10500	GLASS, CHANNEL	2
35	EL2724	GLASS	1
36	58E-98-10510	COVER, SCREW	1
37	58E-98-10520	SEAL, OUTSIDE - RUBBER FLOCK	1
NS\|38		NOTE: NS = NOT SHOWN	-1
NS\|39	SM2256	KEY, DOOR	1

Komatsu AFE57-HT 830E-1AC S/N A40966, A40987 & A40990 - A40992 SEVERSTAL parts catalog PDF

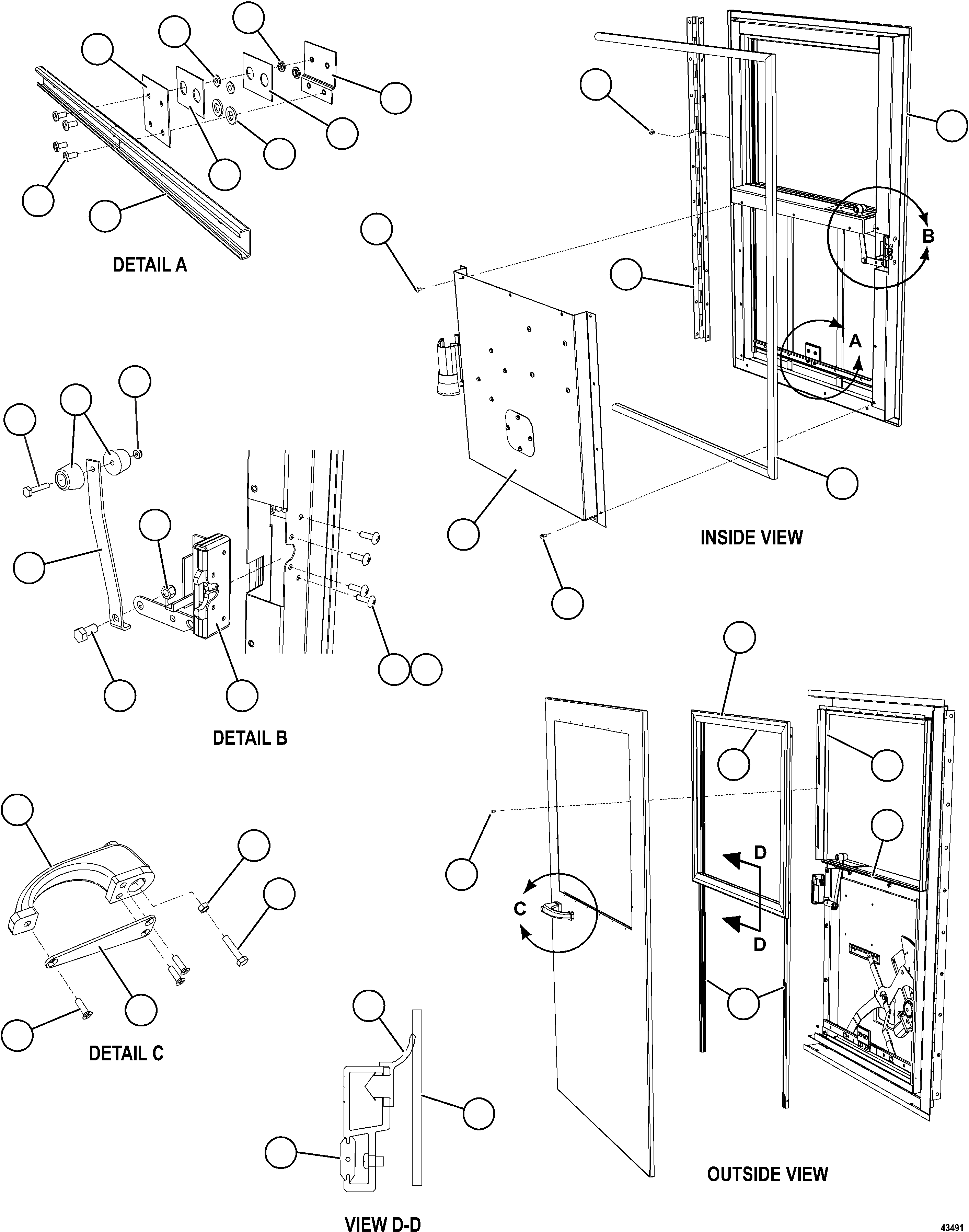

DOOR - LH 58E-54-10081 (43491) in AFE57-HT 830E-1AC S/N A40966, A40987 & A40990 - A40992 SEVERSTAL. Diagram image and parts list.
