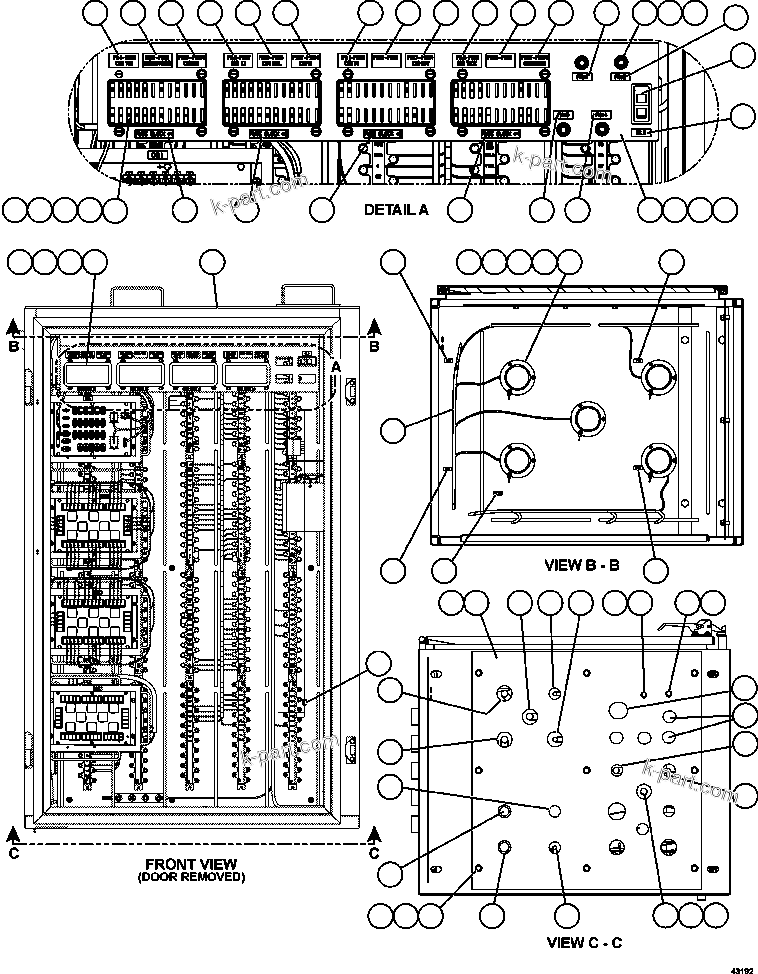

AUXILIARY CONTROL CABINET COMPONENTS - FRONT VIEW | AFE57-FW 830E-1AC S/N A30761 WABUSH

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE57-FW 830E-1AC S/N A30761 WABUSH

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EL0307	CABINET	1
?	EK5332	FILTER, NOISE (PLM III)	1
?	PC1345	FUSE BLOCK W/ COVER	4
?	DC3101	LOCKWASHER - #10	16
?	VC5344	FLAT WASHER - #10	16
?	PC2399	FUSE - 1 AMP	1
?	08041-00500	FUSE - 5 AMP	9
?	08041-01000	FUSE - 10 AMP	19
?	08041-01500	FUSE - 15 AMP	15
?	08041-02000	FUSE - 20 AMP	9
?	WB2941	NAME PLATE - FUSE BLOCK #1	1
?	WB2942	NAME PLATE - FUSE BLOCK #2	1
?	EK2512	NAME PLATE - FUSE BLOCK #3	1
?	EK2513	NAME PLATE - FUSE BLOCK #4	1
?	EM8281	BRACKET, MOUNTING - CIRCUIT BREAKER	1
?	TD1549	NUT - 1/4" - 20NC	4
?	DC3584	LOCKWASHER - 1/4"	4
?	TR1307	FLAT WASHER - 1/4"	4
?	PC0254	SWITCH, ROCKER (LOCKED)	1
?	WB2200	NAME PLATE - DLS	1
?	EK2075	NAME PLATE - FS1 - FS12 CIR 712	1
?	WB3504	NAME PLATE - FS13 - FS16 CIR 11B1	1
?	EK2502	NAME PLATE - FS17 - FS24 CIR 11S	1
?	EK2503	NAME PLATE - FS1 - FS12 CIR 11	1
?	EK2501	NAME PLATE - FS13 - FS16	2
?	EL7626	NAME PLATE - FS17 - FS24 CIR 11B1	1
?	EK2505	NAME PLATE - FS1 - FS12 CIR 71	1
?	MM0459	FLAT WASHER - M6	4
?	EK2509	NAME PLATE - FS17 - FS24 CIR 12V	1
?	EK2510	NAME PLATE - FS1 - FS12 CIR 71CK	1
?	EK2511	NAME PLATE - FS17 - FS24 CIR 15VD1	1
?	EM8242	HARNESS, AUXILIARY CONTROL CABINET INTERNAL	1
?	58B-06-00250	RESISTOR (22,100 OHM)	1
?	58B-06-00120	RESISTOR (2 KOHM, 2W)	1
?	PC2399	FUSE - 1 AMP	1
?	VS0035	LIGHT, DOME	5
?	VZ1912	BULB	5
?	TM9090	INSULATOR	5
?	SF9896	KNIFE, DISCONNECT - 14-16 AWG	5
?	TF6248	FLAT WASHER - #8	15
?	VM9910	LOCKWASHER - #8	15
?	TV2179	NUT - #8 - 32NC	60
?	EC7462	NAME PLATE - DL1	1
?	EC7458	NAME PLATE - DL2	1
?	EC7459	NAME PLATE - DL3	1
?	EC7460	NAME PLATE - DL4	1
?	EC7457	NAME PLATE - DL5	1
?	XB9269	PLATE, BOTTOM	1
?	EL0316	GASKET	1
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	9
?	TC1231	LOCKWASHER - 3/8"	9
?	TR4436	FLAT WASHER - 3/8"	9
?	PC1701	FITTING, BULKHEAD COAX	2
?	PC1962	HARNESS, ORBCOMM (COAX)	1
?	CH4525	CABLE, BLACK	1
?	CH4626	CABLE, RED	1
?	XB0587	HARNESS, WHEEL SPEED	1
?	EM8248	HARNESS, CAB/AUX CABINET	1
?	XB2157	HARNESS, CAB/AUX CABINET DIAGNOSTIC	1
?	EM8246	HARNESS, AUX CABINET/CAB OVERHEAD	1
?	EM7819	HARNESS, COMP/CC JNC P240	1
?	XB8889	HARNESS, CAB/AUX CABINET DIAGNOSTIC - GE	1
?	XB2163	HARNESS, ENGINE	1
?	58B-06-00130	RESISTOR (1 K OHM, 2W)	1
?	58B-06-00120	RESISTOR (2 K OHM, 2W)	1
?	EM2964	HARNESS, AUXILIARY BOX - ENGINE	1
?	SD5390	MACHINE SCREW - #10 - 32NF X 1"	1
?	VM5587	LOCKNUT, CONDULET	1
?	WB3313	NAME PLATE - FS13 - FS16, CIR II GL	1
?	WA0724	PLUG - 2"	1
?	TV3555	PLUG, BUTTON - 1 3/8"	4
?	WB3468	NAME PLATE, FUSE PANEL 1	1
?	WB3469	NAME PLATE, FUSE PANEL 2	1
?	WB3478	NAME PLATE, FUSE PANEL 4	1
?	WB3477	NAME PLATE, FUSE PANEL 3	1
?	MM0373	NUT - M5 X 0.8	4
?	MM0379	LOCKWASHER - M5	4
?	VM5736	GRIP, CORD	1
?	VG4399	BUSHING, CONDULET	1
?	HE2264	PLUG, HOLE - 1"	1
?	PC3137	CABLE, MODEM	1
?		NOTE: NS = NOT SHOWN	-1
?	EM8241	LABEL, FUSE BLOCK (INSIDE CABINET DOOR)	1
?	XB6764	HARNESS, HIGH IDLE JUMPER	1
