AFE57-EX 830E-1AC S/N A30637 - A30638 HINDUSTAN ZINC

36 39 2 1 3 6 7 8 9 10 11 11 37 4 38 12 4 7 8 17 18 19 10 9 18 20 16 21 10 15 20 22 14 23 10 13 27 31 8 26 29 30 24 25 23 27 28 6 17 34 35 5 33 32 5

#	Part Number	Partname	Quantity	Reference
1	VE3805	TIE ROD	4
2	VE3807	WASHER, COMPRESSION	8
3	VE3804	LOCKNUT	8
4	VE3809	INLET SECTION ASSEMBLY	2
5	VJ2002	CAPSCREW	16
6	VJ1987	CAPSCREW	16
7	VJ0011	PLUG	2
8	VJ0435	O-RING (1)/(2)	2
9	VE3551	PLUG	2
10	VE3565	O-RING (1)/(2)	6
11	VE3563	CAP, FLANGE	2
12	VE3553	O-RING (1)/(2)	2
13	VE3559	FITTING	2
14	VE3564	TUBE	2
15	VE3561	FITTING	2
16	VE3803	CAPSCREW	4
17	VE3560	SLEEVE (1)	2
18	VE3554	RING, BACKUP (1)/(2)	4
19	VE3552	O-RING (1)/(2)	2
20	VE3550	RING, BACKUP (1)/(2)	4
21	VE3526	O-RING (1)/(2)	2
22	VE3558	POPPET, RESTRICTION (1)	2
23	VE3562	COVER	2
24	VE3982	SPRING	2
25	VJ1989	SLEEVE	2
26	VE3609	RELIEF VALVE ASSEMBLY (1)	2
26	VE3555	PLUG	2
26	VE3556	POPPET	2
27	VE3533	O-RING (1)/(2)	8
28	BF3046	HOUSING, INLET	2
29	VJ1988	POPPET	4
30	VJ1985	SPRING	4
31	VE3568	COVER, POPPET	2
32	VE3534	O-RING (1)/(2)	3
33	VE3528	O-RING (1)/(2)	6
34	VE3567	RELIEF VALVE ASSEMBLY (1)	2
35	VJ1990	SPRING	2
36	VE3557	SCREW, RESTRICTION	2
37	VE3810	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	50120
38	VE3806	PLATE, SPACER	1
39	VJ1987	CAPSCREW (INCLUDED WITH VE3810, REF. NO. 22)	16
NS\|42	BF3253	NOTE: (1) INCLUDED IN BF3253 MAJOR SERVICE KIT.	-1
NS\|43	BF3252	(2) INCLUDED IN BF3252 MINOR SERVICE KIT.	-1

Komatsu AFE57-EX 830E-1AC S/N A30637 - A30638 HINDUSTAN ZINC parts catalog PDF

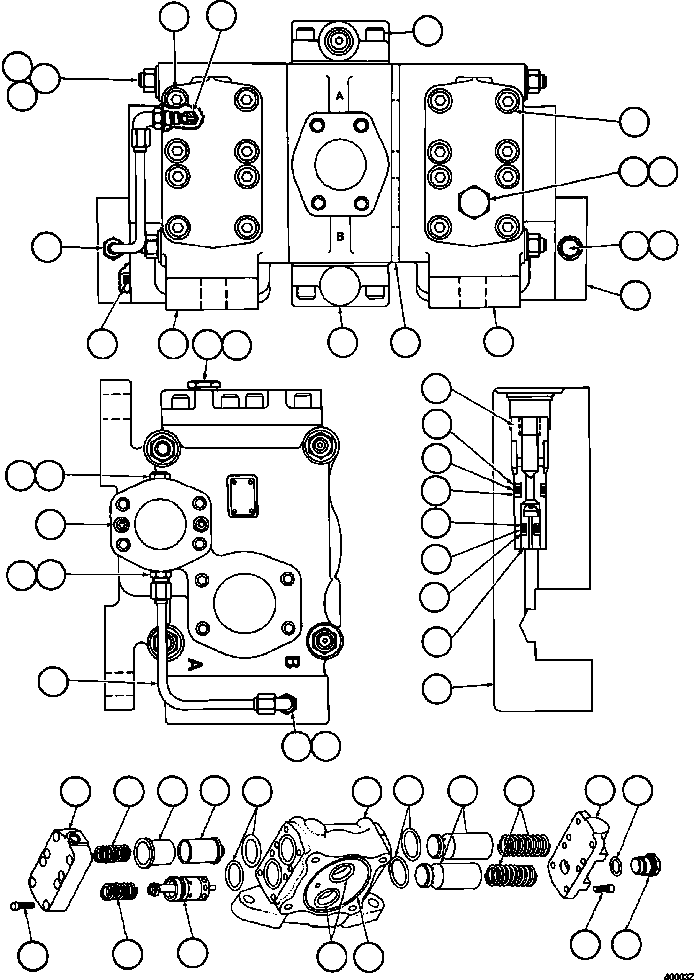

HOIST CONTROL VALVE ASSEMBLY PB6921 (40003) in AFE57-EX 830E-1AC S/N A30637 - A30638 HINDUSTAN ZINC. Diagram image and parts list.
