AFE57-EX 830E-1AC S/N A30637 - A30638 HINDUSTAN ZINC

12 10 11 12 11 7 6 4 5 5 4 9 8 13 30 14 3 4 5 2 6 7 25 1 29 27 26 28 24 23 22 21 19 20 18 16 15 17

#	Part Number	Partname	Quantity
1	VE9536	PLUG	1
2	VE9541	SEAL, O-RING (3)/(5)	1
3	VE9592	CAPSCREW	4
4	VE9610	PLUG, HOLLOW HEX (6)/(7)	11
5	BF2234	O-RING (1)/(6)/(7)	11
6	VE9607	PLUG (6)/(7)	4
7	VE9546	O-RING (1)/(4)/(6)/(7)	4
8	BF2226	VALVE, 4-WAY (6)/(7)/(9)	1
9	VE9606	SCREW (6)/(7)	4
10	VE9609	ORIFICE (6)/(7)	1
11	VE9608	PLUG, HOLLOW HEX (6)/(7)	4
12	VE9611	O-RING (1)/(6)/(7)	4
13	VE9603	BLOCK (6)/(7)	1
14	BF2227	VALVE, RELIEF (6)/(7)/(8)	1
15	VE9550	BEARING	1
16	VE9549	GASKET (2)	1
17	VE9548	PLATE, VALVE - RH	1
18	VE9551	O-RING (2)	1
19	VE9600	COVER, VALVE PLATE	1
20	VE9537	CAPSCREW	4
21	VE9601	CAPSCREW	4
22	XA0196	SEAL (5)	1
23	BF2188	SCREW (7)	4
24	VE9588	CAP	1
25	BF2185	O-RING (7)	2
26	VE9616	O-RING (2)/(4)	3
27	VE9617	O-RING (2)	1
28	VE9615	O-RING (2)	1
29	BF2239	MODULE, UNLOADER (7)/(10)	1
30	BF1731	ORIFICE (6)/(7)	1
NS\|31	VE9618	NOTE: (1) INCLUDED IN VE9618 GASKET/SEAL KIT.	-1
NS\|32	VE9614	(2) INCLUDED IN VE9614 PUMP GASKET/SEAL KIT.	-1
NS\|33	BF1369	(3) INCLUDED IN BF1369 HOUSING KIT.	-1
NS\|34	BF1368	(4) INCLUDED IN BF1368 VALVE PLATE KIT.	-1
NS\|35	BF3727	(5) INCLUDED IN BF3727 SEAL KIT.	-1
NS\|36		(6) INCLUDED IN BF3179 CONTROL ASSEMBLY.	-1
NS\|37		(7) INCLUDED IN BF2224 CONTROL ASSM/UNLOADER ASSM.	-1
NS\|38	VE9619	(8) SERVICE WITH VE9619 SEAL KIT.	-1
NS\|39	VE9620	(9) INCLUDED IN VE9620 SEAL KIT.	-1
NS\|40	XA5738	(10) INCLUDED IN XA5738 SEAL KIT.	-1

Komatsu AFE57-EX 830E-1AC S/N A30637 - A30638 HINDUSTAN ZINC parts catalog PDF

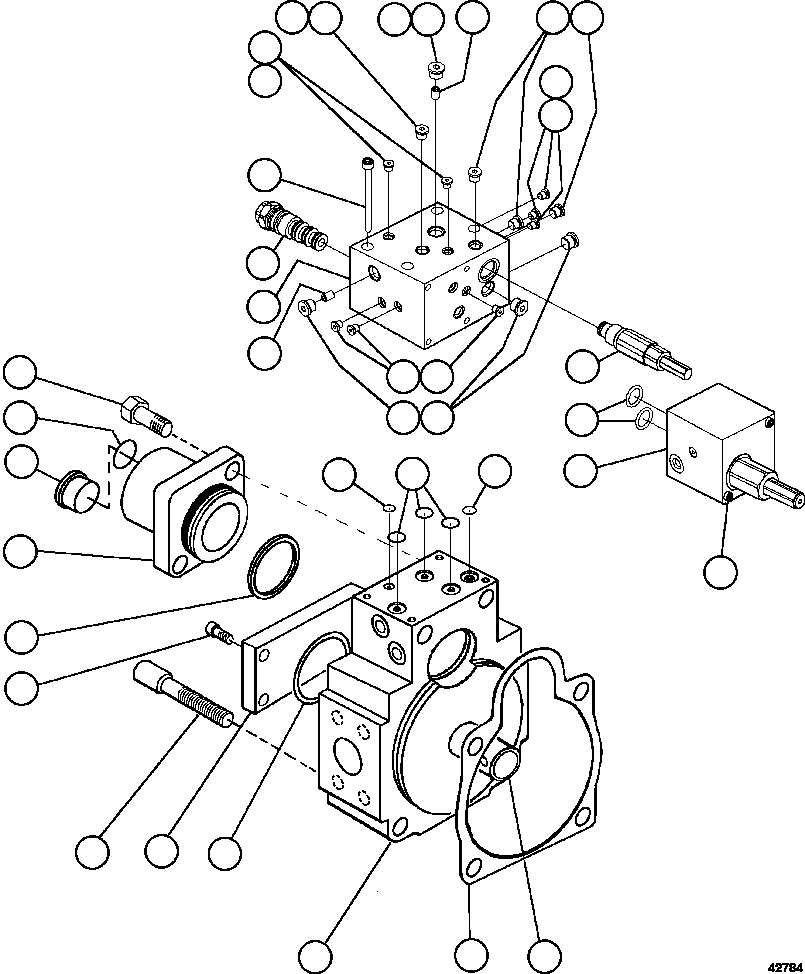

STEERING PUMP HOUSING (REAR) PC2827 (42784) in AFE57-EX 830E-1AC S/N A30637 - A30638 HINDUSTAN ZINC. Diagram image and parts list.
