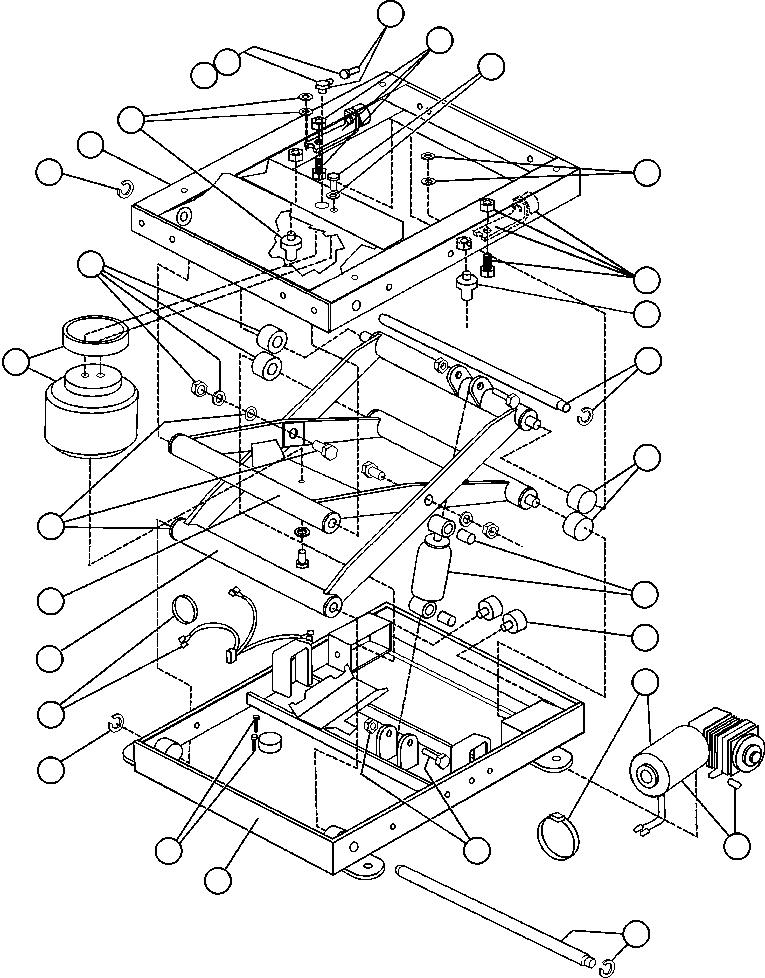

OPERATOR'S SEAT ASSEMBLY 6/6 (PC2324) | AFE59-BR 930E-4 S/N A30742 FORDING

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE59-BR 930E-4 S/N A30742 FORDING

4 11 3 4 7 2 1 6 2 2 11 2 6 4 2 2 5 10 2 9 7 7 6 3 5 7 8 6

#	Part Number	Partname	Quantity
0	XA4007	SEAT SUSPENSION ASSEMBLY	1
1		FRAME, UPPER (1)	1
2	XA2247	KIT, HARDWARE	1
2		ROLLER (1)	4
2		BOLT, SHOULDER (1)	2
2		WASHER, SPLITLOCK (1)	2
2		NUT, HEX (1)	2
2		BUSHING (1)	4
2		BUSHING (1)	2
2		BUMPER, UP (1)	2
2		BUMPER, DOWN (1)	2
2		WASHER, SPLITLOCK (1)	2
2		NUT, HEX (1)	2
3	XA4016	KIT, AIR COMPRESSOR	1
3		COMPRESSOR, AIR (1)/(2)	1
3	VE8744	ELBOW (2)	1
3	VE6664	CAP (2)	1
3	VE8874	CLAMP	4
4	VE8724	KIT, AIR SPRING	1
4		SPRING, AIR (1)	1
4	VE8744	ELBOW	1
4	VE6664	CAP	1
4	VE8875	CAPSCREW - M8 X 16 (5)	2
4		WASHER (1)	2
5	BF0694	KIT, SHOCK ABSORBER	1
5		ABSORBER, SHOCK (1)	1
5		BOLT (1)	2
5		NUT (1)	2
5		BUSHING (1)	2
6	BF0477	KIT, AXLE	1
6		SHAFT, LOWER (1)	1
6		AXLE, UPPER (1)	1
6	VE4582	RING, SNAP	4
7	BF0091	KIT, COMPRESSOR / RELAY	1
7		COMPRESSOR, AIR (1)/(3)	1
7	VE8744	ELBOW (3)	1
7	VE6664	CAP (3)	1
7		RELAY (1)	1
7		HARNESS (1)	1
7		CLAMP (1)	1
7		SCREW (1)	1
8		FRAME, LOWER (1)	1
9		SCISSOR, OUTER (1)	1
10		SCISSOR, INNER (1)	1
11	XA4017	KIT, BUMPER	1
11		BRACKET (1)	2
11		BUMPER, UP (1)	2
11	VE8875	CAPSCREW - M8 X 16 (4)	2
11		NUT, LOCK (1)	2
11		WASHER, SPLITLOCK (1)	2
NS\|51		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|52	BF0091	(2) ALSO INCLUDED IN BF0091 COMPRESSOR / RELAY KIT.	-1
NS\|53	XA4016	(3) ALSO INCLUDED IN XA4016 AIR COMPRESSOR KIT.	-1
NS\|54	VE8724	(4) ALSO INCLUDED IN VE8724 AIR SPRING KIT.	-1
NS\|55		(SEE PRECEDING PAGES FOR BALANCE OF PARTS.)	-1
