AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		SLEEVE, SEAL (1) (2)	1
?		CLUTCH COIL (1)	1
?		PULLEY & BERING (1) (3) (6) (8)	1
?		SEAL, RETAINER (1)/(2)	1
?		SEAL, BEARING (1)/(2)	1
?		CLUTCH DRIVE W/ KEY (1) (3) (5)	1
?		SHAFT LOCK NUT (1)/(3)/(5)/(6)	1
?		DUST COVER (1) (7)	1
?		MACHINE SCREW (1) (7)	3
?		HIGH PRESSURE RELIEF VALVE & O-RING (1) (4)	1
?		SEAL, BEARING (1)/(2)	1
?		O-RING (1) (2)	1
?		RETAINING RING - COIL (1)/(3)	1
?	PC2212	OIL, REFRIGERANT - 8 OZ.	2
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	XA3357	(2) INCLUDED IN XA3357 SEAL KIT.	-1
?	XA3363	(3) INCLUDED IN XA3363 CLUTCH & PULLEY KIT.	-1
?	XA3351	(4) INCLUDED IN XA3351 HIGH PRESSURE RELIEF VALVE	-1
?		& O-RING KIT.	-1
?	XA3360	(5) INCLUDED IN XA3360 CLUTCH DRIVER KIT.	-1
?	XA3376	(6) INCLUDED IN XA3376 PULLEY & BEARING KIT.	-1
?	XA3364	(7) INCLUDED IN XA3364 DUST COVER KIT.	-1
?	XA3357	(8) REPLACEMENT OF THIS COMPONENT REQUIRES	-1
?		PURCHASE OF XA3357 SEAL KIT.	-1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

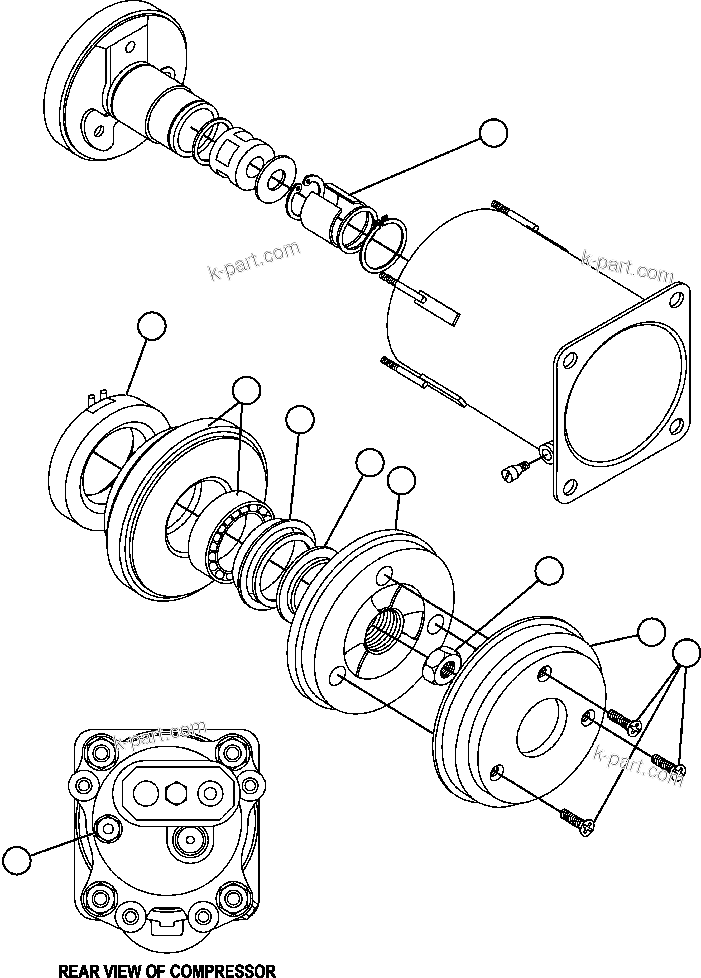

AIR CONDITIONING COMPRESSOR (PC1816) (55781) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
