AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE5127	BOX, PANEL	1
?	VE4921	CAPSCREW - #10 - 32NF X 1"	3
?	VS6662	FLAT WASHER - #10	-1
?	SF2755	NUT - #10 - 32NF	3
?	VE4601	LOCKWASHER - #10	9
?	VE5128	HEAT SINK	2
?	VE0036	DIODE	2
?	VP9525	PIN	4
?	VE0301	BAR, BUS	2
?	VE7202	WASHER - 1/4" (SPECIAL)	-1
?	VE4480	CAPSCREW - 1/4" - 20NC X 1"	12
?	DC3584	LOCKWASHER - 1/4"	-1
?	TD1549	NUT - 1/4" - 20NC	-1
?	VE0302	BAR, BUS	2
?	VE4382	RECEPTACLE	2
?	VE5098	SUPPORT	2
?	VE4383	SCREW - #4 - 40NC X 1/2"	4
?	VE5156	CAPSCREW - #10 - 32NF X 7/8"	4
?	VE6320	CAPSCREW - 1/4" - 20NC X 1 1/8"	10
?	VE0297	BAR, BUS	2
?	VE5136	ROLLPIN	2
?	GE1214	RECTIFIER	1
?	VE0299	BAR, BUS	2
?	GE1211	RECTIFIER	1
?	VJ9161	CAPSCREW - #10 - 32NF X 1/2"	6
?	VE7272	SEALANT	-1
?	BF0932	SENSOR, THERMISTOR	-1
?	VE5131	SCREW - 1/4" - 20NC X 1/2"	1
?	VE2604	BAR, BUS	1
?	VE6323	CLAMP, CABLE	2
?	GE1212	RECTIFIER	1
?	VE4917	CLAMP, CABLE	3
?	GE1213	RECTIFIER	1
?	VE3217	BAR, BUS	1
?	VE5129	BAR, BUS - W/ SCREW	1
?		(SEE FOLLOWING PAGE FOR VIEW A-A.)	-1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

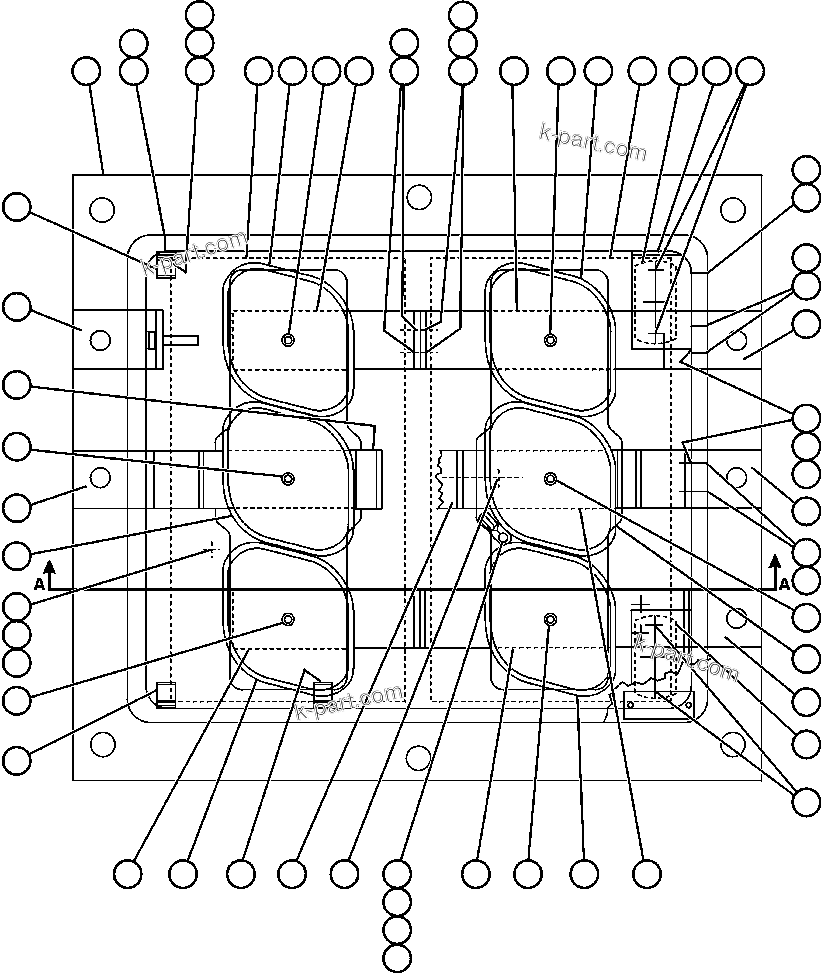

CONTACTOR ASSEMBLY - R.P. (GE0647) (64228) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
