AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	31127R1	CAPSCREW - M6 X 1.00 X 12	12
?	SM0926	SCREW, PANEL - M6 X 1.00	3
?	MM0469	LOCKWASHER - M6	3
?	SM2405	SEAL, WINDOW (INSIDE)	1
?	SM2548	SEAL, DOOR	1
?	EL2731	FRAME, DOOR - R.H.	1
?	TV6025	CAPSCREW - 1/4" - 20NC X 1 1/2" (STRIKER)	1
?	VN2882	JAM NUT - 1/4" - 20NC	1
?	KD0252	MACHINE SCREW	4
?	SD4235	LOCKWASHER - 1/4" (EXTERNAL TOOTH)	4
?	EL2747	INNER PANEL ASSEMBLY, R.H. (SEE INDEX)	1	42111
?	TG9225	LOCKNUT - 3/8" - 16NC	1
?	MM0357	MACHINE SCREW - M6 X 1.00 X 12	4
?	PC2661	WINDOW ASSEMBLY	1
?	EL2724	GLASS	1
?	BF5190	RUN, GLASS - TOP	1
?	BF5191	RUN, GLASS - SIDE	2
?	BF5189	BOTTOM FRAME ASSEMBLY	1
?	BF5194	SEAL, OUTSIDE - RUBBER FLOCK	1
?	BF2744	COVER, SCREW	1
?	SM2406	SCREW, SELF-TAPPING - #6 - 32NC X 3/8"	22
?	2048889R1	TRIM, BULK	-1
?	PC1828	HANDLE, PUSH BUTTON	1
?	31126R1	SCREW, MACHINE - M6 X 20	2
?	31006R1	SCREW, MACHINE - M6 X 16	1
?	SM2544	HINGE, DOOR	1
?	31154R1	CAPSCREW - M8 X 12	10
?	SM2274	LATCH DOOR ASSEMBLY - R.H.	1
?	SM2263	LEVER, DOOR LATCH	1
?	SM2264	KNOB, DOOR LATCH	2
?	SM2354	SCREW - #10 - 24NC	1
?	SM2355	LOCKNUT - #10 - 24NC	1
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

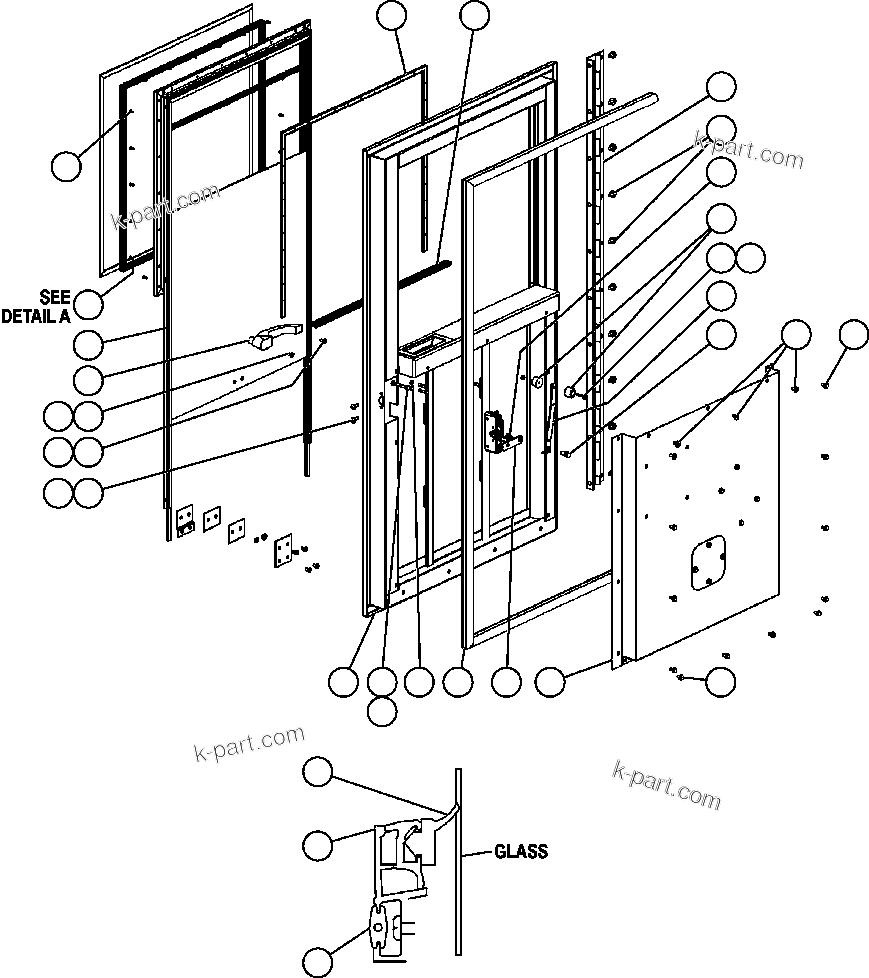

DOOR - R.H. (EM0049) (41974) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
