AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	BF1493	PEDAL (4)	1
?	VJ4023	RING, RETAINING (1)/(2)/(4)	3
?	VE3517	ROLLER (2)/(4)	1
?	BF1494	LEVER, TREADLE (4)	1
?	VE7636	HARNESS, WIRE (3)/(4)	1
?	VE7634	CLAMP, WIRE (4)	2
?	VE4213	SCREW, PAN HEAD (3)/(4)	2
?	VC9049	CAPSCREW - 5/16" - 18NC X 5/8" (6)	4
?	BF1495	COVER	1
?		PIN, TREADLE (1)/(4)/(5)	1
?	VE3504	BUSHING (1)/(4)	2
?	VE3510	BUSHING (1)/(4)	2
?		SENSOR (4)/(5)	1
?	VE7551	PIN (4)	1
?	SC4174	LOCKWASHER - 5/16" (6)	4
?		SPRING (4)/(5)	2
?	BF1492	SHAFT, SENSOR (4)	1
?	VE7557	BUSHING (4)	2
?	BF1355	PLATE, BASE	1
?	VE7638	ROLLPIN (2)/(4)	1
?	VE7556	WASHER, THRUST (OUTER) (4)	2
?	VE3522	MACHINE SCREW (4)	2
?	VE7549	NOTE: (1) INCLUDED IN VE7549 TREADLE PIN KIT.	-1
?	VE7561	(2) INCLUDED IN VE7561 ROLLER KIT.	-1
?	BF1497	(3) INCLUDED IN BF1497 SENSOR KIT.	-1
?	BF1498	(4) INCLUDED IN BF1498 UPPER SERVICE ASSM KIT.	-1
?		(5) NOT SERVICED SEPARATELY.	-1
?		(6) NOT INCLUDED IN ASSEMBLY.	-1

Komatsu AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY parts catalog PDF

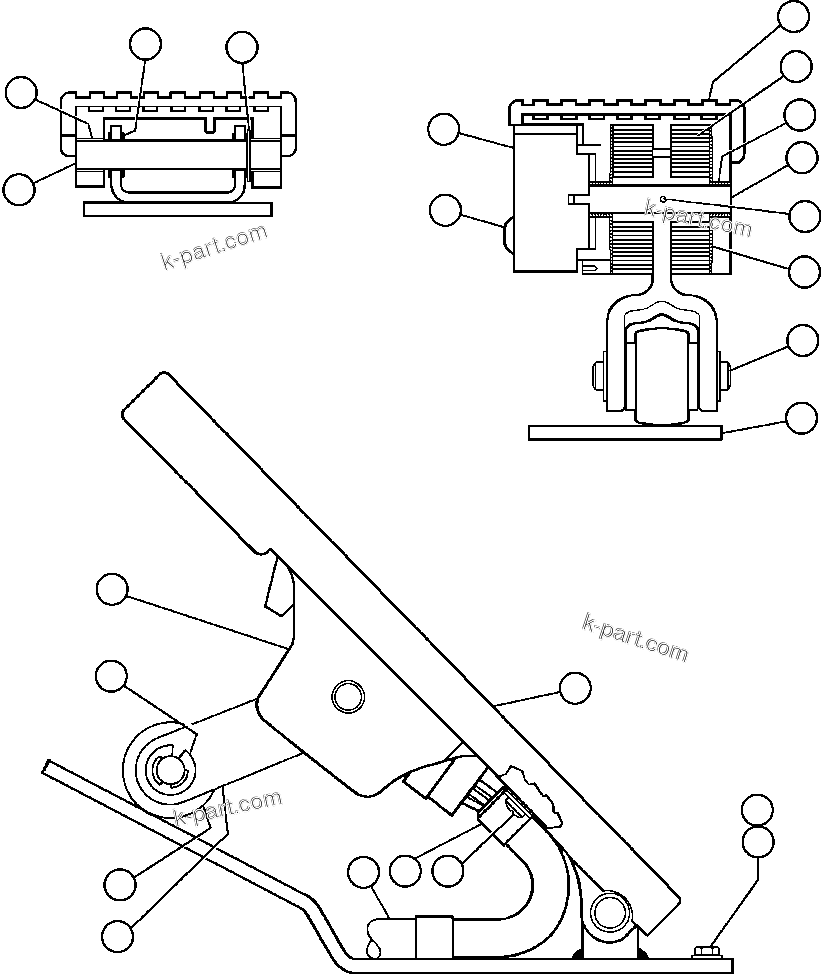

ELECTRONIC TREADLE (PB9506) (41060) in AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY. Diagram image and parts list.
