AFE57-X 830E-AC S/N A30101 HIBBING TACONITE

1 2 6 5 4 3 21 22 11 12 13 14 15 16 17 18 7 8 3 9 10 19 23 24 20 18 17 16 15 19 23 24 20

#	Part Number	Partname	Quantity
1	PC1043	MIRROR, CONVEX - R.H. (12" X 16" HEATED)	1
1	XA2648	HEATER - 24V	1
1	XA2647	BUSHING, RELIEF	1
1	XA2646	BACK ASSEMBLY	1
1	VE6350	CABLE, WIRE - 6 FT.	1
1	VE5447	TRIM, PINCHWELT	1
1	VE5446	CLIP, SPRING	1
1	VE5445	MIRROR, CONVEX GLASS	1
2	PB7490	ARM BOW ASSEMBLY - R.H.	1
3	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4" (1)	4
4	VE5451	WASHER, FIBER (1)	4
5	H5304	LOCKWASHER - 3/8" (1)	2
6	SD4572	JAM NUT - 3/8" - 16NC (1)	2
7	VE5449	BOW, ARM	1
8	VE5453	CLAMP (1)	2
9	VE5452	WASHER - 13/32" (1)	2
10	C1521	NUT - 3/8" - 16NC (1)	2
11	VE5454	ANGLE, MOUNTING (1)	4
12	WA0723	FLAT WASHER - 5/16"	8
13	VN9951	LOCKNUT - 5/16" - 18NC	8
14	C1598	CAPSCREW - 5/16" - 18NC X 1"	8
15	720462	CLAMP, VINYL - 5/16" I.D.	3
16	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	3
17	TC1231	LOCKWASHER - 3/8"	3
18	TC1233	NUT - 3/8" - 16NC	3
19	08192-12300	WEDGE, CONNECTOR RECEPTACLE	2
20	VP4693	GROMMET, RUBBER	2
21	EG8984	MOUNT, MIRROR	1
22	PC1254	MIRROR, FLAT - L.H. (12" X 40" HEATED)	1
22	XA2651	HEATER - 24V	1
22	XA2650	TRIM, PINCHWELT	1
22	XA2649	BACK ASSEMBLY	1
22	XA2647	BUSHING, RELIEF	1
22	BF4989	MIRROR, SILVERED GLASS	1
22	VE6350	CABLE, WIRE - 6 FT.	1
22	C5774	LOCKWASHER - 1/4"	4
22	VN9772	LOCKWASHER - 1/4"	2
22	XA2127	NUT - 1/4" - 20NC	2
22	XA2126	CAPSCREW - 1/4" - 20NC X 3/4"	2
22	XA2124	CHANNEL, RETAINING	1
23	08191-05330	PIN, CONNECTOR CONTACT	4
24	08192-12100	BODY, CONNECTOR RECEPTACLE	2
NS\|43		NOTE: NS = NOT SHOWN	-1
NS\|44	08041-01500	FUSE - 15 AMP	1
NS\|45	PC2238	SWITCH, ROCKER (UPPER R.H. DASH MODULE)	1
NS\|46	VE5450	NOTE: (1) INCLUDED IN VE5450 REPAIR KIT.	-1

Komatsu AFE57-X 830E-AC S/N A30101 HIBBING TACONITE parts catalog PDF

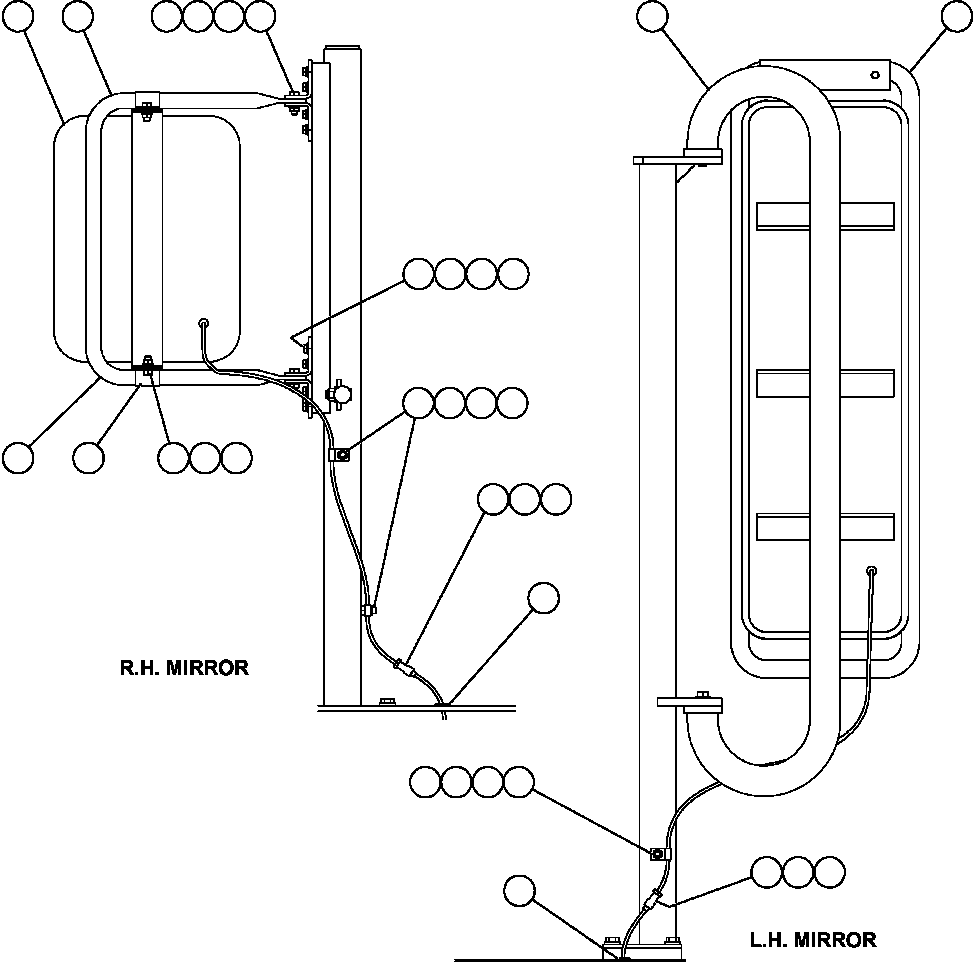

HEATED MIRRORS (42198) in AFE57-X 830E-AC S/N A30101 HIBBING TACONITE. Diagram image and parts list.
