AFE57-X 830E-AC S/N A30101 HIBBING TACONITE

1 2 3 28 4 59 5 29 31 6 34 30 7 33 32 5 35 3 33 11 2 1 12 39 8 9 36 13 10 37 38 45 15 58 14 40 46 16 47 41 48 18 17 42 49 43 51 50 44 52 19 53 54 20 55 21 22 24 57 56 26 23 25 60 27

#	Part Number	Partname	Quantity
1	BF5470	SCREW, FLAT HEAD	2
2	BF5471	COUNTERWEIGHT	2
3	BF5473	RING, RETAINER	2
4	BF5474	CRANKROD	1
5	BF5511	RING, RETAINER	2
6	BF5475	CRANK, ECCENTRIC	1
7	BF5476	BEARING, BALL	1
8	BF5477	PIN, OUTLET	1
9		O-RING (1)	1
10	BF5478	TUBE, PLUNGER	1
11	XA2790	SCREW, BUTTON HEAD	2
12	BF5480	BUSHING, WRIST PIN	2
13	BF5481	ANCHOR, WRIST PIN	1
14		WASHER, BACKUP (1)	1
15		SEAL, CUP (1)	1
16	XA2791	ROD, PLUNGER	1
17	BF5483	SPRING	1
18	LA0906	BALL, STEEL	1
19	XA2017	PLUNGER	1
20	XA2792	TUBE, RECIPROCATING	1
21		SEAL, CUP (1)	1
22		O-RING (1)	1
23	BF5486	CYLINDER	1
24	BF5487	CAGE, BALL	1
25	BF3823	BALL, STEEL	1
26		O-RING (1)	1
27	BF5488	SEAT, CHECK	1
28	BF5489	SCREW, SELF-TAPPING	6
29	BF5490	COVER, HOUSING	1
30		GASKET, COVER (1)	1
31	BF5491	GAUGE, PRESSURE	1
32	BF5492	SCREW, SOCKET HEAD	4
33	XA1987	SWITCH, OVERRIDE	1
33	BF5507	SEAL KIT	1
34	XA3020	KNOB, OVERRIDE	1
35	BF5494	VALVE, SOLENOID	1
36	PB9784	CONNECTOR	1
37	XA2018	MANIFOLD	1
38	PC1770	VALVE, PRESSURE REDUCING	1
38	BF5508	SEAL KIT	1
39	PC1769	VALVE, FLOW CONTROL	1
39	BF5509	SEAL KIT	1
40		O-RING (1)	2
41		GASKET (1)	1
42	BF5498	MOTOR, HYDRAULIC (INCLUDES REF. NOS. 40 AND 41)	1
43	XA2147	WASHER	2
44	BF5499	SCREW, SOCKET HEAD	2
45	BF5500	PLUG, PIPE	1
46	BF5501	HOUSING, PUMP	1
47		RING, BACKUP (1)	2
48		O-RING (1)	2
49		O-RING (1)	2
50	BF5502	NUT	2
51	BF5503	BEARING, BRONZE	1
52		O-RING (1)	1
53		WASHER, BACKUP (1)	1
54		O-RING (1)	1
55	XA2793	TUBE, HOUSING	1
56	BF5505	PLUG, SHOVEL	1
57	BF5506	RING, RETAINER	1
58	BF5510	FITTING, ORIFICE	1
59		GASKET (1)	6
60	XA2148	STRAINER, INLET	1
NS\|64	BF5513	NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN	-1
NS\|65		BF5513 SOFT GOODS KIT.	-1

Komatsu AFE57-X 830E-AC S/N A30101 HIBBING TACONITE parts catalog PDF

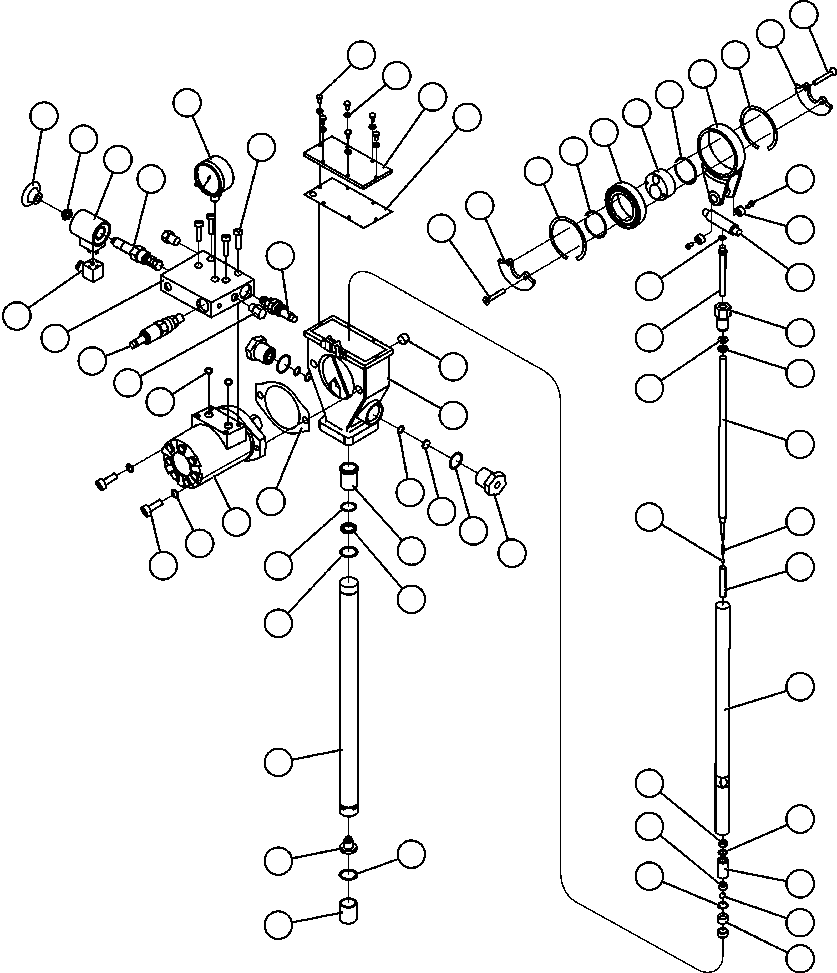

LUBE PUMP ASSEMBLY (XA2788) (41838) in AFE57-X 830E-AC S/N A30101 HIBBING TACONITE. Diagram image and parts list.
