AFE57-X 830E-AC S/N A30101 HIBBING TACONITE

24 21 19 25 18 26 20 30 27 31 28 29 13 17 12 16 22 33 11 9 32 15 14 10 8 34 7 6 5 26 4 25 35 1 3 52 2 53 37 36 54 43 49 44 50 55 57 58 51 56 59 61 62 60 63 38 64 65 42 45 46 47 66 41 48 23 73 40 69 72 71 67 39 70 68

#	Part Number	Partname	Quantity
1	GE1010	BRACKET, SUPPORT	1
2	GE1011	INTERLOCK, MECHANICAL	1
3	GE1012	LATCH SPRING, ARC CHUTE	1
4	GE1013	LEVER	1
5	GE1014	HOLD-ON IRON	1
6	GE1015	SCREW, SELF-TAPPING - #10	1
7	GE1016	FLAT WASHER - 5/16"	4
8	GE1017	LOCKWASHER - 5/16"	2
9	GE1018	CAPSCREW, SOCKET HEAD - 5/16" - 18NC X 1 1/2"	2
10	GE1019	TERMINAL, PIVOT	1
11	GE1020	SPRING, LEAF	1
12	GE1021	LOCKWASHER	2
13	GE1022	CAPSCREW, SOCKET HEAD - 5/16" - 18NC X 1 1/4"	2
14	GE1023	SPRING, WIPE	3
15	GE1024	SPRING, PIVOT	3
16	GE1025	CAP, PIVOT SPRING	3
17	VJ6523	CONTACT, STATIONARY - 1 PIECE	3
18	VJ3236	CONTACT, STATIONARY - 2 PIECE, LOWER	3
19	VJ3235	CONTACT, STATIONARY - 2 PIECE, UPPER	3
20	GE1026	LOCKWASHER - #10	3
21	VE7247	CAPSCREW, SOCKET HEAD - #10 - 32NF X 7/8"	3
22	GE0696	KIT, ARC CHUTE	1
23	GE1052	LOCKWASHER - 1/4"	1
24	C1520	NUT - 5/16" - 18NC	1
25	GE1028	LOCKWASHER - 5/16"	2
26	GE1029	PLATE, POLE	2
27	GE1022	CAPSCREW, SOCKET HEAD - 5/16" - 18NC X 1 1/4"	2
28	GE1017	LOCKWASHER - 5/16"	2
29	GE1030	KIT, BLOW OUT COIL	1
30	GE1031	CAPSCREW - 3/8" - 16NC X 1 1/4"	2
31	GE1032	FLAT WASHER - 3/8"	2
32	GE1033	CORE, MAGNET	1
33	GE1034	SHEET, INSULATING	1
34	GE1035	SPACER, INSULATING	2
35	GE1036	CAPSCREW - 5/16" - 18NC X 4 1/2"	1
36	GE1037	SCREW, FLAT HEAD - 3/8" - 16NC X 1"	1
37	GE1038	LOCKWASHER, COUNTERSUNK	1
38	GE1039	YOKE	1
39	GE1040	SCREW, SOCKET HEAD - 5/16" - 18NC X 1"	2
40	GE1017	LOCKWASHER - 5/16"	2
41	GE1041	TERMINAL, BOTTOM	1
42	GE1042	GUIDE, ARMATURE	1
43	GE1043	COIL	1
44	GE1044	CORE, MAGNET	1
45	GE1045	PLATE, POLE	1
46	VJ5672	LOCKWASHER, COUNTERSUNK - 1/4"	1
47	GE1046	SCREW - 1/4" - 20NC X 1/4"	1
48	GE1047	SETSCREW - 1/4" - 20NC X 1/4"	2
49	GE1048	PIN, SHOULDER	2
50	GE1049	ARMATURE ASSEMBLY	1
51	GE1050	OPEN STOP	1
52	GE1051	SCREW, SOCKET HEAD - 1/4" - 20NC X 1"	2
53	GE1052	LOCKWASHER - 1/4"	2
54	GE1053	CONTACT, MOVABLE	1
55	GE1054	SUPPORT, MOVABLE CONTACT	1
56	GE1055	MAGNET, HOLD-ON	1
57	GE1056	SPRING, CONTACT	2
58	GE1057	"X" WASHER	2
59	GE1058	BRACKET, SUPPORT	1
60	GE1059	SCREW - #10 - 32NF X 3/8"	2
61	GE1026	LOCKWASHER - #10	2
62	GE1060	SUPPORT, INTERLOCK	1
63	GE1061	SCREW - #10 - 32NF X 3/8" (SPECIAL)	2
64	GE1062	SPRING, RETURN	2
65	GE1063	SWITCH, INTERLOCK	1
66	GE1064	LEVER, OPENING	1
67	GE1065	LOCKWASHER - #10	1
68	GE1066	CAPSCREW - 1/4" - 20NC X 1"	1
69	GE1067	OPERATOR, INTERLOCK	1
70	GE1068	WASHER, BELLEVILLE	1
71	GE1051	SCREW, SOCKET HEAD - 1/4" - 20NC X 1"	2
72	GE1052	LOCKWASHER - 1/4"	2
73	GE1069	SCREW, SOCKET HEAD - 1/4" - 20NC X 1/2"	1

Komatsu AFE57-X 830E-AC S/N A30101 HIBBING TACONITE parts catalog PDF

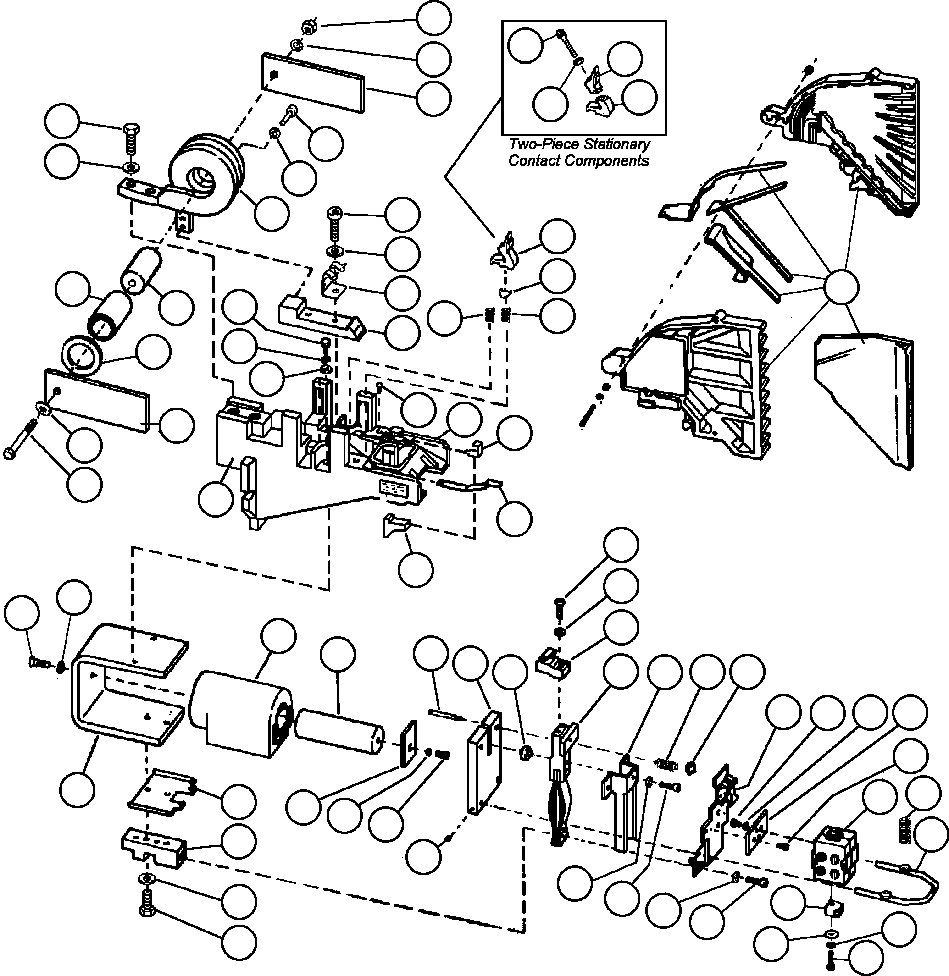

CONTACTOR ASSEMBLY - R.P. (GE0647) (64227) in AFE57-X 830E-AC S/N A30101 HIBBING TACONITE. Diagram image and parts list.
