AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA5867	ALTERNATOR, BATTERY CHARGING (1)	1
?	BF4993	BELT, ALTERNATOR DRIVE	1
?	58F-06-00760	CABLE, ALTERNATOR - RED	1
?	58F-06-00860	CABLE, ALTERNATOR - BLACK	1
?	XA4488	PUMP, PRELUBE (1)	1
?	58F-06-00671	HARNESS, ENGINE EXTERNAL	1
?	XA3660	MOTOR, CRANKING	2
?	PC0607	SENDER, COOLANT TEMPERATURE	1
?	WB1185	WASHER - M22	1
?	MM0471	LOCKWASHER - M10	20
?	MM0178	NUT - M10 X 1.50	20
?	MM0461	FLAT WASHER - M10	6
?	WB1304	CLAMP, CUSHIONED - 9/16"	21
?	MM0713	FLAT WASHER - M10 (HARDENED)	14
?	WB3093	CLAMP, CUSHIONED - 1"	5
?	EL1939	ROD, THREADED - M6 X 1.00 X 75	8
?	EJ3891	CLAMP ASSEMBLY	24
?	WB3098	CLAMP, CUSHIONED - 3/8"	20
?	MM0462	FLAT WASHER - M12	10
?	MM0459	FLAT WASHER - M6	14
?	MM0176	NUT - M6 X 1.00	12
?	EM3364	ROD, THREADED - M6 X 1.00 X 50	6
?	CH4325	CABLE, PRELUBE PUMP - BLACK	1
?	CH4452	CABLE, PRELUBE PUMP - RED	1
?	08038-02027	CAP, TERMINAL	4
?		SOLENOID, PRELUBE PUMP (1)	1
?	08038-00519	CAP, TERMINAL	2
?	58F-06-00570	CABLE ASSEMBLY, PRELUBE FUSE	1
?	PC2252	FUSE - 150 AMP	2
?	EK2371	SLEEVE, SHRINK	1
?	VN9698	JAM NUT - 5/16"	4
?	SC4174	LOCKWASHER - 5/16"	4
?	TR4731	CAPSCREW - 5/16" - 18NC X 1"	2
?	58F-06-00960	CABLE, PRE-LUBE	1
?	58E-06-01830	CABLE, PRE-LUBE	1
?	XB2143	SHEET, BENT	1
?	MM0025	CAPSCREW - M6 X 1.00 X 20	2
?	MM0469	LOCKWASHER - M6	2
?	MM0343	MACHINE SCREW - M4 X 0.7 X 16	4
?	MM0378	LOCKWASHER - M4 (EXTERNAL TOOTH)	4
?	MM0372	NUT - M4 X 0.7	4
?	HA3671	HOSE	1
?	TG3393	FITTING, ELBOW - 90 DEG	1
?	PC0122	ADAPTER	1
?	PC0119	SEAL, ADAPTER	1
?		FITTING, TEE (1)	1
?	58E-06-01781	HARNESS, PRELUBE	1
?	PC2834	DIODE - 4 AMP (D87)	1
?	EM1393	SPACER	1
?	WB1305	CLAMP, CUSHIONED - 1 1/2"	1
?		NOTE: (1) SUPPLIED WITH ENGINE.	-1

Komatsu AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON parts catalog PDF

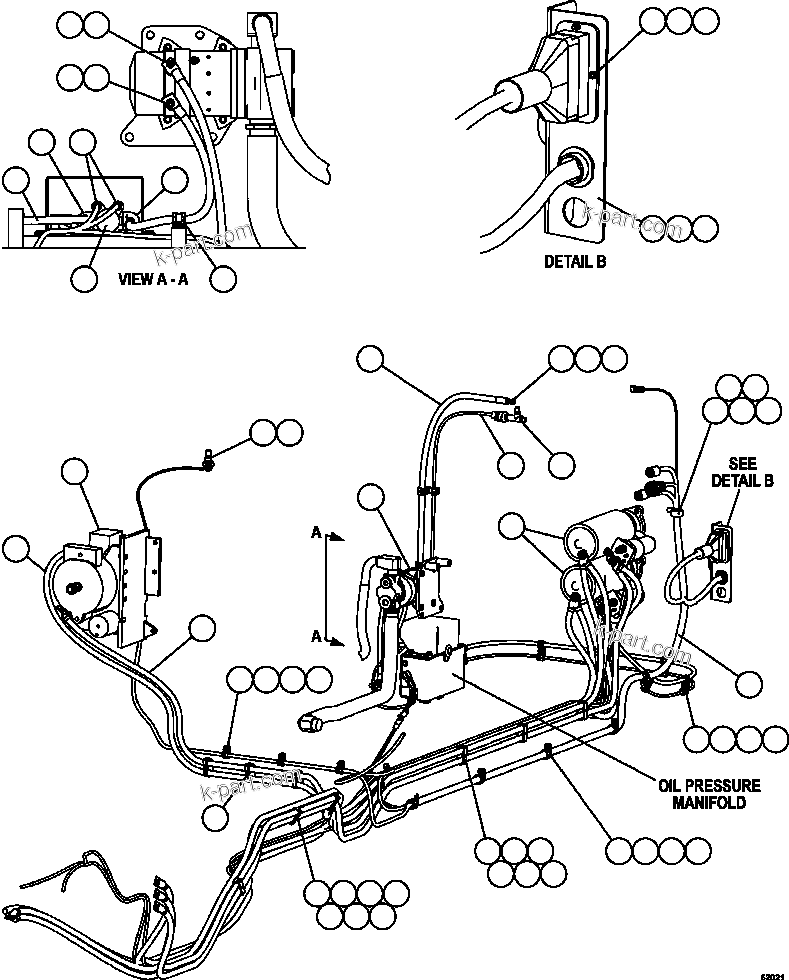

ENGINE WIRING (62021) in AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON. Diagram image and parts list.
