AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-06-10730	HARNESS, CAN RPC (CAN RPC/GE)	1
?	58E-06-00522	HARNESS, GE/AUX BOX INTERFACE	1
?	58B-06-00120	RESISTOR - 2 KOHM, 2W (R44)	1
?	WB1303	CLAMP, CUSHIONED - 3/4"	1
?	58E-06-10720	HARNESS, CAN J1939 (CAN/GE)	1
?	PC0616	RECEPTACLE, TEE	6
?	58E-06-10830	HARNESS, 1939 JUMPER (CAN J1939 JUMPER)	1
?	58E-06-00410	COVER, WIRE	3
?	58E-06-00390	DUCT, WIRE	3
?	58E-06-10360	SCREW, FLANGE	12
?	58E-06-10350	NUT, SPECIAL	12
?	58E-06-10540	RETAINER, WIRE DUCT - 2"	6
?	EJ9089	CONTROLLER, INTERFACE MODULE (UNPROGRAMMED)	1
?	58E-06-00503	HARNESS, AUXILIARY CONTROL CABINET INTERNAL	1
?	XC2513	BRACKET	1
?	MM0401	CAPSCREW - M8 X 1.25 X 90	8
?	MM0460	FLAT WASHER - M8	8
?	EJ3060	CONTROLLER, PAYLOAD METER III	1
?	58E-06-00550	HARNESS, CAN J1939 (PLM III/IM)	1
?	EK3934	NAME PLATE - PLM III	1
?	58E-06-00531	HARNESS, PLM III/AUXILIARY BOX	1
?	MM0176	NUT - M6 X 1.00	6
?	MM0469	LOCKWASHER - M6	6
?	MM0459	FLAT WASHER - M6	6
?	PC1110	CONVERTER, 24VDC TO 12VDC	1
?	WB3239	NAME PLATE - 12 VCN	1
?	SD5390	MACHINE SCREW - #10 - 32NF X 1"	2
?	VC5344	FLAT WASHER - #10	2
?	DC3101	LOCKWASHER - #10	2
?	PB8460	CIRCUIT BREAKER	1
?	ED4418	BRACKET	1
?	EC7460	NAME PLATE - DL4	1
?	WB3479	NAME PLATE - CB60	1
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	3
?	TR4436	FLAT WASHER - 3/8"	3
?	PC0618	PLUG, TERMINATING	2
?	7861-92-5330	SENSOR, ANGLE	1
?	XC2506	BRACKET	1
?	EL7628	NAME PLATE - INCLINOMETER	1
?	58E-06-10590	NAME PLATE - DATA PORTS	1
?	EC7457	NAME PLATE - DL5	1
?	EK2723	NAME PLATE - INTERFACE MODULE	1
?	58E-06-00540	HARNESS, CAN RPC (CAN RPC/CAN RPC)	1
?	WB4009	NAME PLATE - CAN J1939	2
?	WB4010	NAME PLATE - CAN RPC	2
?	58E-06-10820	HARNESS, 1939 JUMPER (CAN RPC JUMPER)	1
?	58E-06-00511	HARNESS, AUXILIARY CONTROL CABINET INTERNAL	1
?	58B-06-00290	VARISTOR (R18, R19, R30)	3
?	58B-06-00160	RESISTOR - 560 OHM, 3W (R15)	1
?	58B-06-00130	RESISTOR - 1 KOHM, 2W (R51)	1
?	58B-06-00120	RESISTOR - 2 KOHM, 2W (R3, R4, R5, R20, R23, R34)	7
?	XC2504	BRACKET, LIGHT	3
?	PC3010	LIGHT, DOME	3
?	WB3770	SCREW - #10 - 24NC X 3/4"	12
?	EC7461	NAME PLATE - DL6	1
?	MM0581	CAPSCREW - M6 X 1.00 X 16	6
?	SP8417	FLAT WASHER - 1/4"	6
?	58E-06-00192	PLATE	1
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	8
?	TC1231	LOCKWASHER - 3/8"	8
?	TR4436	FLAT WASHER - 3/8"	8
?	PB8256	SCREW LOCK, FEMALE	3
?	MM0470	LOCKWASHER - M8	8

Komatsu AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON parts catalog PDF

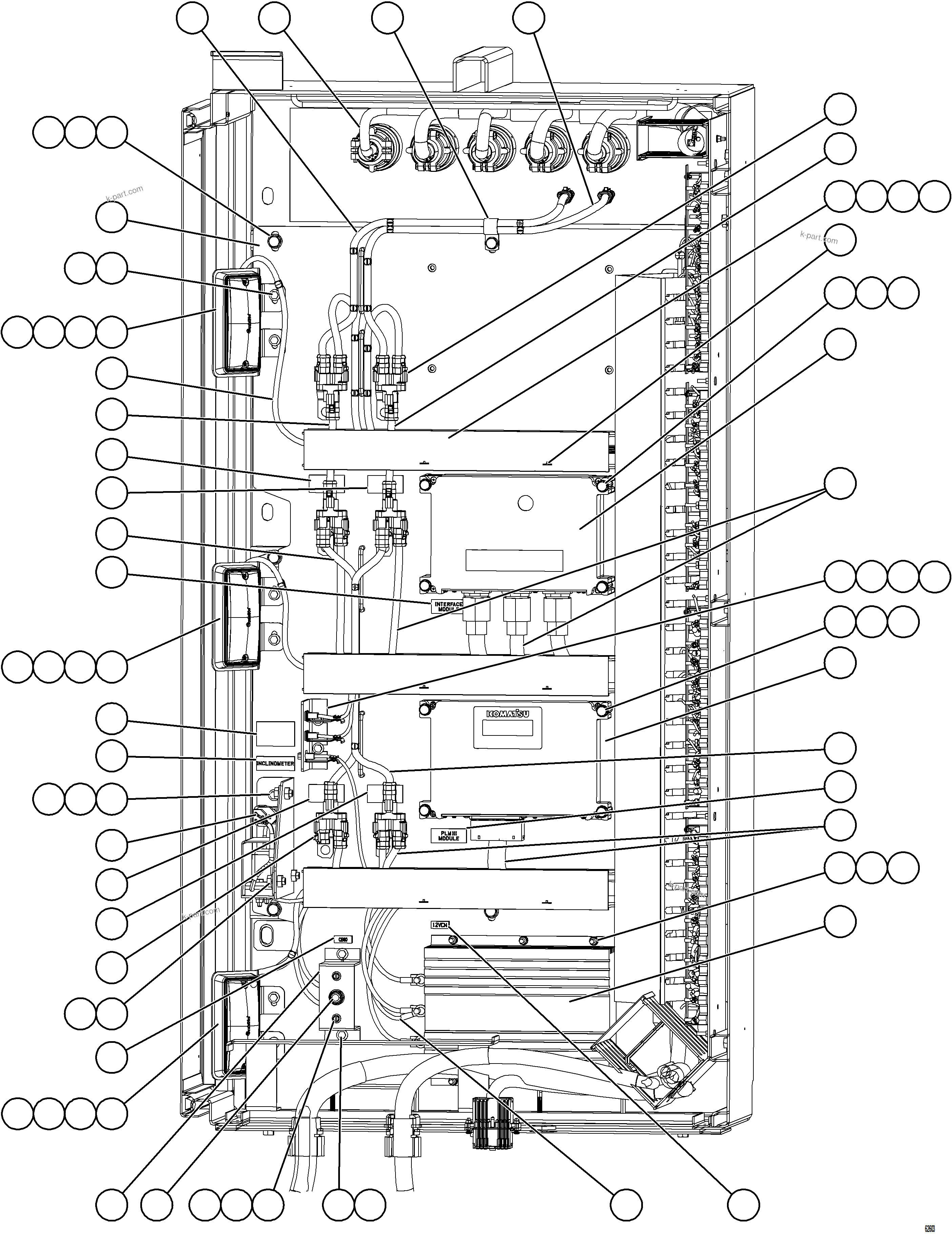

AUXILIARY CONTROL CABINET COMPONENTS - LH WALL (62603) in AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON. Diagram image and parts list.
