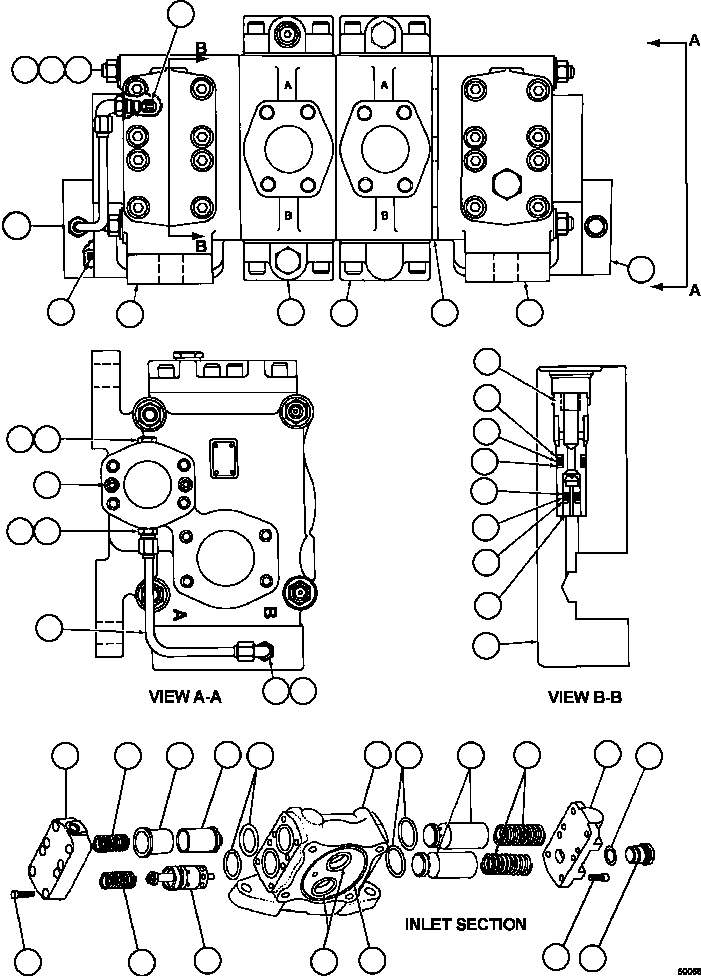

AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON

36 3 2 1 11 11 12 37 38 4 39 4 17 18 19 10 9 18 16 20 21 15 10 20 22 14 23 10 13 31 26 28 30 27 29 23 24 25 27 8 6 7 34 32 33 5 35

#	Part Number	Partname	Quantity	Reference
1	BF3045	TIE ROD	4
2	VE3807	WASHER, COMPRESSION	8
3	VE3804	LOCKNUT	8
4	BF3049	INLET SECTION ASSEMBLY	2
5	VJ2002	CAPSCREW	16
6	DF6928	CAPSCREW	48
7	VJ0011	PLUG	2
8	VJ0435	O-RING (2)/(3)	2
9	VE3551	PLUG	2
10	VE3565	O-RING (2)/(3)	6
11	VE3563	CAP, FLANGE	2
12	VE3553	O-RING (2)/(3)	2
13	VE3559	FITTING	2
14	VE3564	TUBE	2
15	VE3561	FITTING	2
16	VE3803	CAPSCREW	4
17	VE3560	SLEEVE (2)	2
18	VE3554	RING, BACKUP (2)/(3)	4
19	VE3552	O-RING (2)/(3)	2
20	1133800C1	RING, BACKUP (2)/(3)	4
21	VE3526	O-RING (2)/(3)	2
22	VE3558	POPPET, RESTRICTION (2)	2
23	VE3562	COVER	2
24	VE3569	SPRING	2
25	VJ1989	SLEEVE	2
26	VE3609	RELIEF VALVE ASSEMBLY (2)	2
26	VE3555	PLUG	2
26	VE3556	POPPET	2
27	VE3533	O-RING (2)/(3)	8
28	BF3046	HOUSING, INLET (1)	2
29	VJ1988	POPPET	4
30	VJ1985	SPRING	4
31	VE3568	COVER, POPPET	2
32	VE3534	O-RING (2)/(3)	4
33	VE3528	O-RING (2)/(3)	8
34	VE3567	RELIEF VALVE ASSEMBLY (2) (SEE INDEX)	2	61152
35	VJ1990	SPRING	2
36	VE3557	SCREW, RESTRICTION	2
37	VE3810	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	50120
38	VE3806	PLATE, SPACER	1
39	BF3050	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	60069
NS\|42		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|43	BF3047	(2) INCLUDED IN BF3047 MAJOR SERVICE KIT.	-1
NS\|44	BF3048	(3) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1

Komatsu AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON parts catalog PDF

HOIST CONTROL VALVE ASSEMBLY PB9839 (60068) in AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON. Diagram image and parts list.
