AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON

3 4 1 2 24 25 22 23 8 7 6 5 27 9 16 30 15 43 44 45 28 29 18 26 25 24 23 22 10 10 14 11 11 12 23 21 19 20 17 31 32 33 34 35 39 40 23 22 25 24 8 42 6 5 7 40 41 18 26 28 29 22 23 24 25 13 18 28 29 18 36 37 38 46 47

#	Part Number	Partname	Quantity
1	VN9210	CAPSCREW - 5/8" - 11NC X 7 1/2"	4
2	WA0361	FLAT WASHER - 5/8" (HARDENED)	4
3	VC1390	LOCKWASHER - 5/8"	4
4	C1525	NUT - 5/8" - 11NC	4
5	TR4090	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
6	TD0795	LOCKWASHER - 7/16"	8
7	TF3237	CLAMP, SPLIT FLANGE - 1 1/4"	4
8	VG9096	O-RING	2
9	HA7699	HOSE	1
10	WA4713	CLAMP, HYDRA ZORB - 2 1/4"	4
11	WB0551	FITTING, ELBOW - 45 DEG	2
12	WB0549	FITTING, ELBOW - 45 DEG	1
13	C1640	CAPSCREW - 5/8" - 11NC X 4 1/2"	4
14	WA4711	CLAMP, HYDRA ZORB - 1 3/4"	2
15	HA7700	HOSE	1
16	HA7698	HOSE	1
17	58F-09-00320	CAPSCREW - 1/2" - 13NC X 2 3/4"	8
18	C1541	LOCKWASHER - 5/8"	16
19	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	2
20	VG9095	O-RING	1
21	EJ7406	FLANGE, ADAPTER	1
22	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4"	16
23	TR5445	LOCKWASHER - 1/2"	24
24	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	8
25	WA0232	O-RING	4
26	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	8
27	PC0678	MANIFOLD, BRAKE COOLING/HOIST RETURN	1
28	VL9963	CLAMP, SPLIT FLANGE - 3"	6
29	WA0237	O-RING	3
30	PB6770	COUPLING, MALE QUICK DISCONNECT	4
31	HA7706	HOSE	1
32	HA7705	HOSE	1
33	HA7704	HOSE	1
34	HA7387	HOSE	1
35	HA7707	HOSE	1
36	H0539	CAPSCREW - 5/8" - 11NC X 5 1/2"	4
37	VN7716	CLAMP, SPLIT FLANGE - 4"	2
38	WA0245	O-RING	1
39	VM0322	PLUG, O-RING	1
40	VM0314	PLUG	3
41	VM0317	PLUG	2
42	656658C1	PLUG, FLANGE	1
43	PB6041	CAP, DUST	1
44	PC1941	COUPLING, DIAGNOSTIC	1
45	WB0117	FITTING, ELBOW - 45 DEG	1
46	PC0171	VALVE, SHUTOFF	1
47	PC0691	VALVE, SHUTOFF	1

Komatsu AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON parts catalog PDF

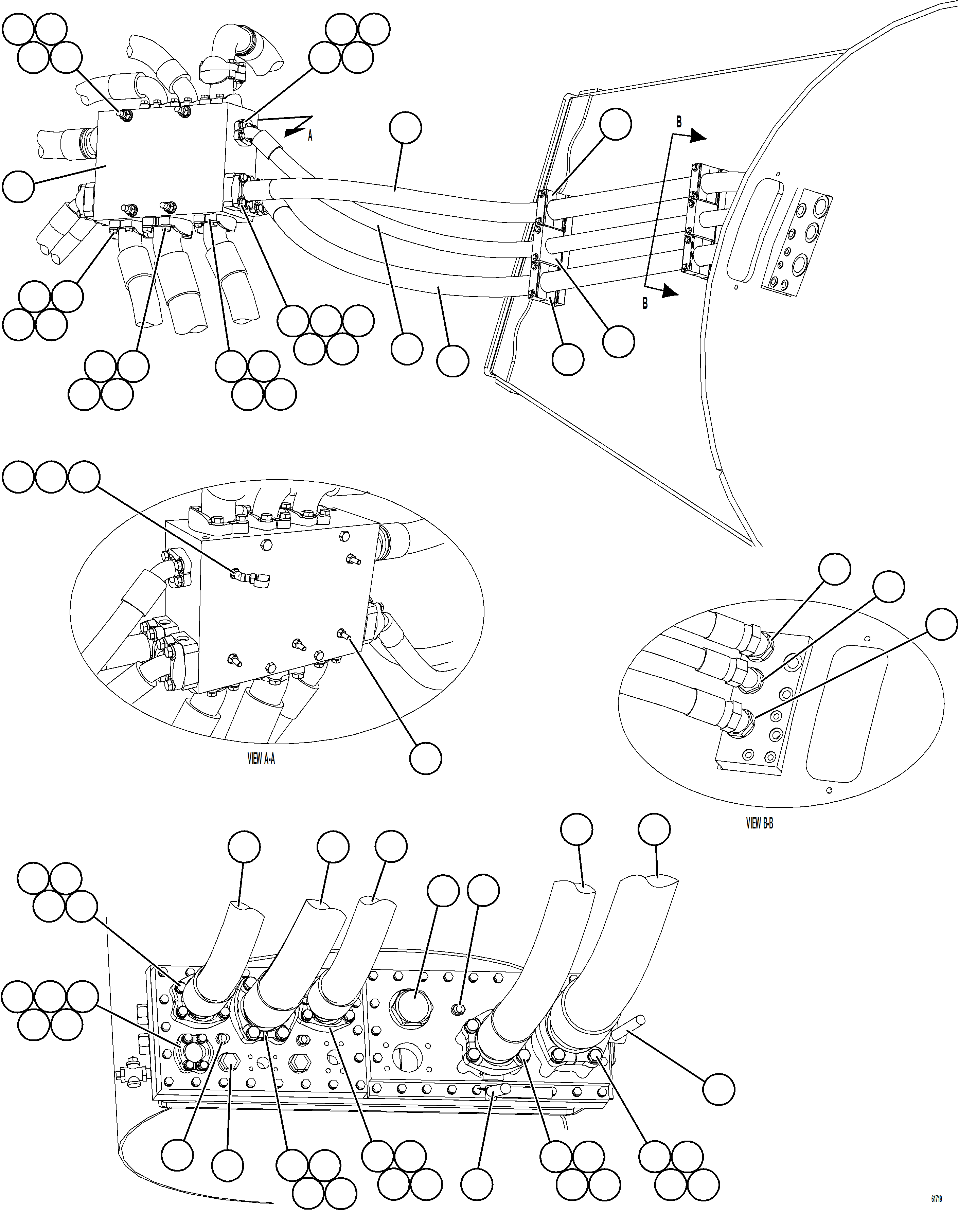

BRAKE COOLING PIPING 1/3 (61719) in AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON. Diagram image and parts list.
