AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		TANK, OIL RESERVE (1)	1
?	C1531	NUT - 1" - 8NC	4
?	C1544	LOCKWASHER - 1"	4
?	WB0267	FITTING, ELBOW - 90 DEG	1
?	58F-60-40240	HOSE	1
?	WB0293	FITTING, ELBOW - 45 DEG	1
?	58B-60-10010	HOSE	1
?	58E-61-00020	TUBE, WITHDRAWAL (FLANGED)	1
?	58F-60-10120	GASKET	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	2
?	MM0471	LOCKWASHER - M10	16
?	MM0461	FLAT WASHER - M10	16
?	WB0467	FITTING, STRAIGHT	1
?	PC1262	ADAPTER, STRAIGHT	1
?	WA4896	FITTING	1
?	MM0178	NUT - M10 X 1.50	5
?	WB1308	CLAMP, CUSHIONED - 1 1/16"	10
?	WB3857	CLAMP, CUSHIONED - 1 3/16"	11
?	EK9883	SPACER	1
?	EM1393	SPACER	1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	1
?	MM0604	CAPSCREW - M10 X 1.50 X 20	1
?	WB0376	FITTING, ELBOW - 90 DEG	1
?	XB1392	BRACKET	1
?	MM0618	CAPSCREW - M12 X 1.75 X 30	3
?	MM0714	FLAT WASHER - M12 (HARDENED)	7
?	MM0620	CAPSCREW - M12 X 1.75 X 40	2
?	MM0472	LOCKWASHER - M12	2
?	MM0179	NUT - M12 X 1.75	2
?	58E-09-00000	PLATE	1
?	08193-21012	CLIP	2
?	MM0605	CAPSCREW - M10 X 1.50 X 25	1
?	58E-61-00220	NOTE: (1) INCLUDED IN 58E-61-00220 RESERVE SYSTEM KIT.	-1

Komatsu AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON parts catalog PDF

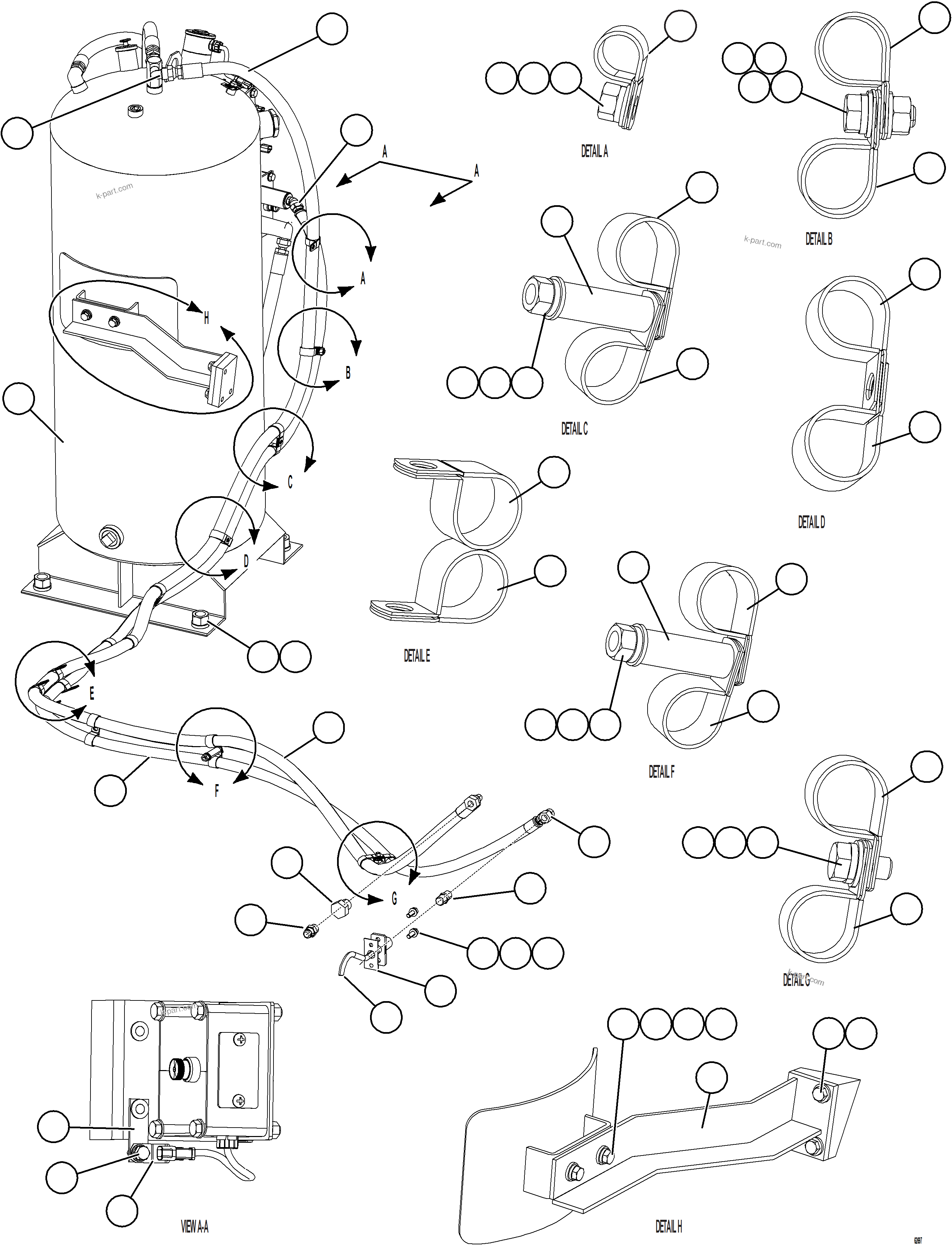

ENGINE OIL RESERVE SYSTEM 1/2 (62697) in AFE59-FW 930E-4 S/N A31849 & A31860 CERREJON. Diagram image and parts list.
