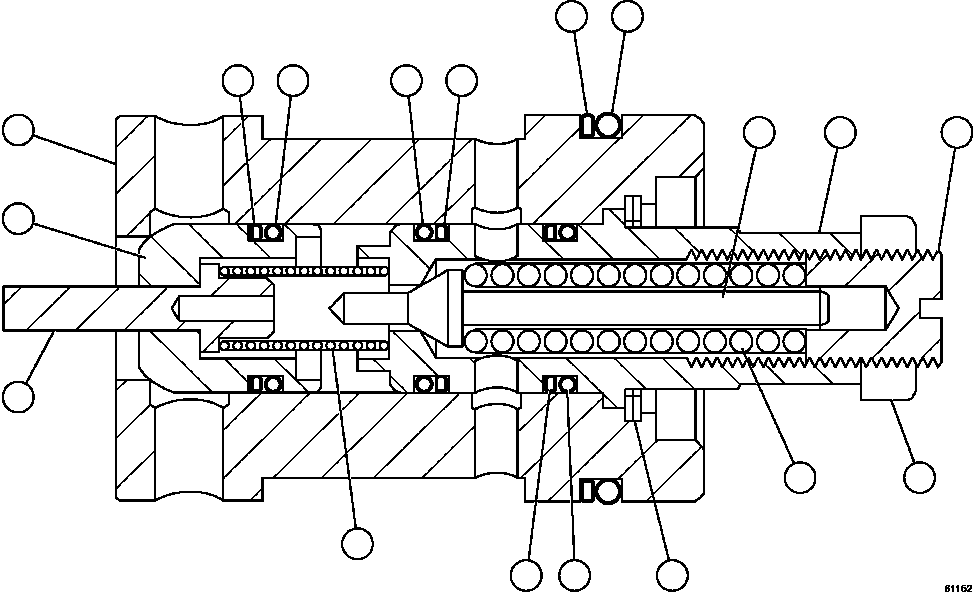

Komatsu parts book diagram for AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG: RELIEF VALVE ASSEMBLY VE3567

13 14 5 6 6 5 1 12 11 10 2 3 8 9 4 5 6 7

	#	Part Number	Partname	Quantity	Options	Reference
	1	XA3749	POPPET	1
	2	VJ2008	RELIEF VALVE	1
	3	VJ2020	PISTON	1
	4	VE3610	SPRING (2)	1
	5	VJ2016	BACKUP RING (1)/(2)	3
	6	VJ2011	O-RING (1)/(2)	3
	7	VJ2022	SNAP RING	1
	8	VJ2015	SPRING (2)	1
	9	VJ2017	NUT	1
	10	XA3750	SCREW, ADJUSTING	1
	11	VJ2018	PLUG	1
	12	VJ2014	POPPET	1
	13	VJ2010	BACKUP RING (1)/(2)	1
	14	VJ2012	O-RING (1)/(2)	1
	NS\|15	XA3747	NOTE: (1) INCLUDED IN XA3747 SEAL KIT.	-1
	NS\|16	XA3748	(2) INCLUDED IN XA3748 SEAL & SPRING KIT.	-1

Komatsu AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG parts catalog PDF

RELIEF VALVE ASSEMBLY VE3567 (61152) in AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG. Diagram image and parts list.
