AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG

22 1 2 5 5 4 6 6 3 7 7 21 8 24 9 9 10 10 23 5 11 9 16 9 11 20 14 12 7 5 16 14 15 14 19 13 18 17

#	Part Number	Partname	Quantity
1	VE3543	COVER, SPOOL	1
2	VE3535	BALL (1)/(2)	1
3	VE3536	POPPET (1)	1
4	VE3527	O-RING (1)/(2)	1
5	VE3548	SEAT, SPRING	4
6	VE3541	SPRING	2
7	VE3545	PLUG	3
8	VE3539	POPPET (1)	1
9	VE3546	END, SPOOL	4
10	VE3547	SPOOL	2
11	VE3542	SPRING	2
12	VE5472	POPPET	1
13	VE7619	HOUSING, SPOOL	1
14	VE3533	O-RING (1)/(2)	4
15	VE3603	POPPET (1)	1
16	VJ2946	O-RING (1)/(2)	2
17	VJ1983	PLUG	1
18	VE3549	O-RING (1)/(2)	1
19	VE3544	COVER, SPOOL	1
20	VE3538	POPPET (1)	1
21	VE3540	POPPET (1)	1
22	VJ1987	CAPSCREW	16
23	VE3528	O-RING (1)/(2)	2
24	VE3534	O-RING (1)/(2)	1
NS\|25	BF3047	NOTE: (1) INCLUDED IN BF3047 MAJOR SERVICE KIT.	-1
NS\|26	BF3048	(2) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1

Komatsu AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG parts catalog PDF

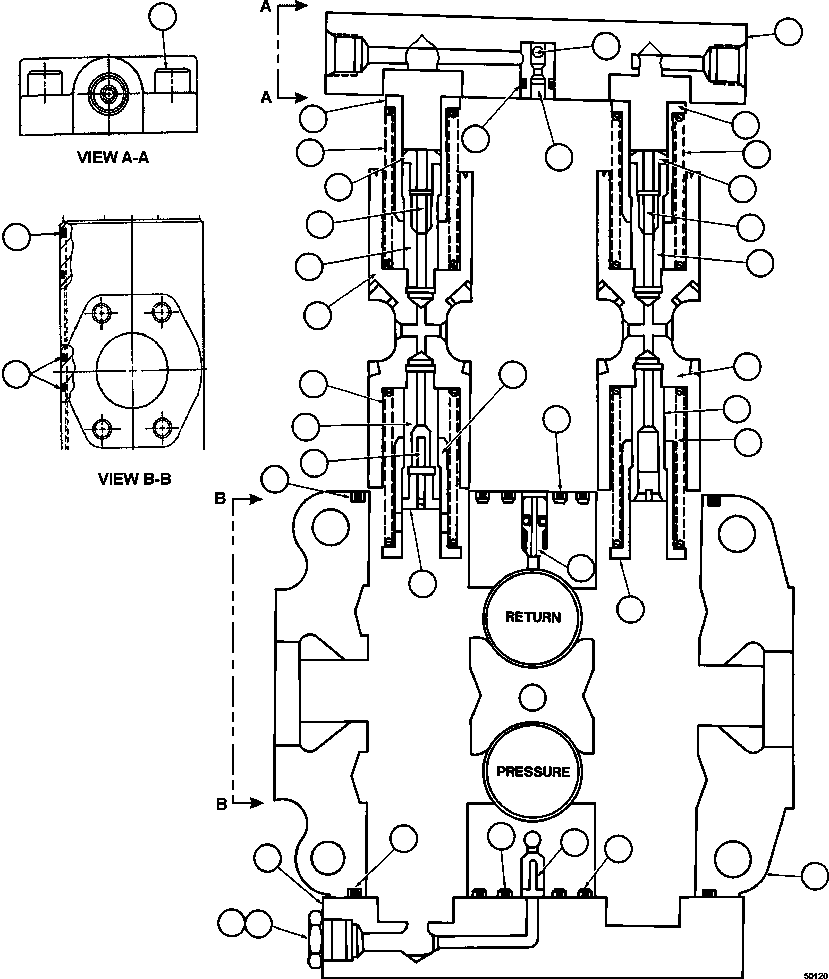

SPOOL SECTION ASSEMBLY VE3810 (50120) in AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG. Diagram image and parts list.
