AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VN9210	CAPSCREW - 5/8" - 11NC X 7 1/2"	4
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	4
?	VC1390	LOCKWASHER - 5/8"	4
?	C1525	NUT - 5/8" - 11NC	4
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
?	C5775	LOCKWASHER - 7/16"	8
?	TF3237	CLAMP, SPLIT FLANGE - 1 1/4"	4
?	VG9096	O-RING	2
?	HA7699	HOSE	1
?	WA4713	CLAMP, HYDRA ZORB - 2 1/4"	4
?	WB0551	FITTING, ELBOW - 45 DEG	2
?	WB0549	FITTING, ELBOW - 45 DEG	1
?	C1640	CAPSCREW - 5/8" - 11NC X 4 1/2"	4
?	WA4711	CLAMP, HYDRA ZORB - 1 3/4"	2
?	HA7700	HOSE	1
?	HA7698	HOSE	1
?	C1619	CAPSCREW - 1/2" - 13NC X 2 3/4"	8
?	C1541	LOCKWASHER - 5/8"	16
?	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	2
?	VG9095	O-RING	1
?	EJ7406	FLANGE, ADAPTER	1
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	16
?	C1540	LOCKWASHER - 1/2"	24
?	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	8
?	WA0232	O-RING	4
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	8
?	PC0678	MANIFOLD, BRAKE COOLING/HOIST RETURN	1
?	VL9963	CLAMP, SPLIT FLANGE - 3"	6
?	WA0237	O-RING	3
?	PB6770	COUPLING, MALE QUICK DISCONNECT	4
?	HA7706	HOSE	1
?	HA7705	HOSE	1
?	HA7704	HOSE	1
?	HA7387	HOSE	1
?	HA7707	HOSE	1
?	H0539	CAPSCREW - 5/8" - 11NC X 5 1/2"	4
?	VN7716	CLAMP, SPLIT FLANGE - 4"	2
?	WA0245	O-RING	1
?	VM0322	PLUG, O-RING	1
?	VM0314	PLUG	3
?	VM0317	PLUG	2
?	656658C1	PLUG, FLANGE	1
?	PB6041	CAP, DUST	1
?	PC1941	COUPLING, DIAGNOSTIC	1
?	WB0117	FITTING, 45 DEGREE ELBOW	1
?	PC0171	VALVE, SHUTOFF	1
?	PC0691	VALVE, SHUTOFF	1

Komatsu AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL parts catalog PDF

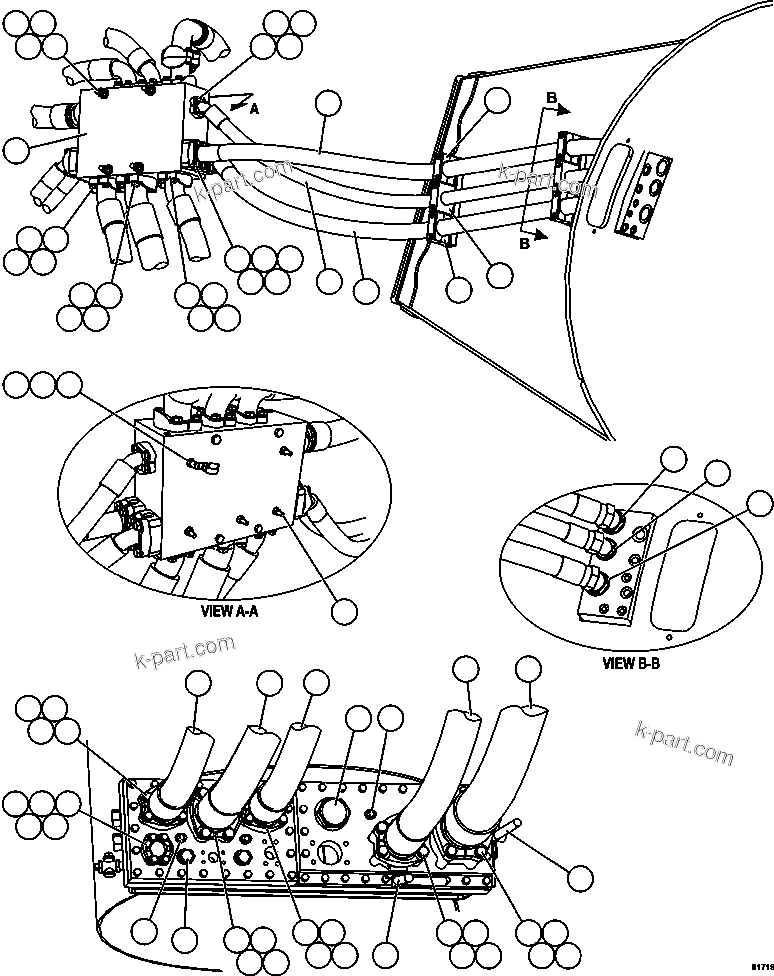

BRAKE COOLING PIPING 1/3 (61719) in AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL. Diagram image and parts list.
