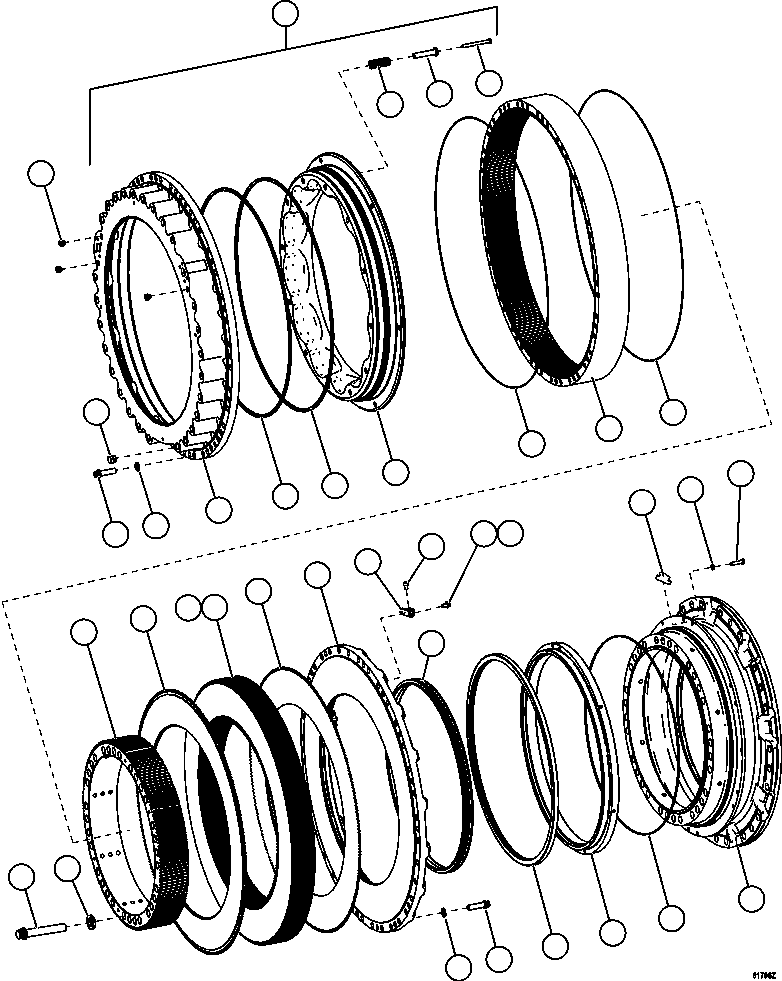

AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL

1 8 7 6 9 12 14 13 14 5 29 4 30 3 31 2 11 26 25 10 24 23 19 16 17 18 16 15 20 33 32 28 27 22 21 10 11

#	Part Number	Partname	Quantity
1	EJ6749	PISTON AND HOUSING ASSEMBLY	1
2	EJ6748	HOUSING, PISTON	1
3	PC1143	SEAL (1)/(2)	1
4	PC1144	SEAL (1)/(2)	1
5	EG4953	PISTON	1
6	PB8864	SPRING (1)/(2)	12
7	ED3327	GUIDE, SPRING (1)/(2)	12
8	VL1222	CAPSCREW - 1/2" - 13NC X 5"	12
9	VM0315	PLUG	3
10	WA1589	CAPSCREW - 7/8" - 9NC X 3" (12 PT)	102
11	WA5659	FLAT WASHER - SPECIAL (HARDENED)	102
12	VM0317	PLUG	1
13	ED3339	GEAR, RING	1
14	EH7197	SEAL, O-RING (1)/(2)	2
15	ED3343	GEAR, INNER	1
16	EM8367	DAMPER (1)	2
17	EM8366	DISC, FRICTION (1)	10
18	EM8365	DISC, SEPARATOR (1)	9
19	EL9170	PLATE, BACK	1
20	PC0651	SEAL ASSEMBLY (1)/(2)	1
20	BF4837	SEAL, TORIC	2
20	BF4116	RING, SEAL	2
20	BF4117	TOOL, INSTALLATION (3)	1
21	PC1431	SEAL, OIL (1)/(2)	1
22	EK5888	CARRIER, SEAL	1
23	EL9501	BRACKET, MOUNTING	6
24	D2930	CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 3/4" (4)	6
25	C1612	CAPSCREW - 1/2" - 13NC X 1"	12
26	WA0360	FLAT WASHER - 1/2" (HARDENED)	12
27	EH7195	SEAL, O-RING (1)	1
28	EH0857	ADAPTER, HUB	1
29	VN9065	CAPSCREW - 1/2" - 13NC X 2"	12
30	C1540	LOCKWASHER - 1/2"	12
31	ED3755	SHIM - .020	60
31	ED3756	SHIM - .010	6
32	WA5660	CAPSCREW - 1 1/4" - 12NF X 7 1/2" (12 PT)	32
33	TY2149	FLAT WASHER (HARDENED)	32
NS\|38	AK9172	NOTE: (1) INCLUDED IN AK9172 BRAKE REBUILD KIT.	-1
NS\|39	AK9483	(2) INCLUDED IN AK9483 BRAKE SEAL KIT.	-1
NS\|40		(3) NOT INCLUDED IN SEAL ASSEMBLY.	-1
NS\|41		(4) USED FOR ASSEMBLY AND STORAGE ONLY.	-1
NS\|42		REMOVE WHEN INSTALLED ON THE TRUCK.	-1
