AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT

1 2 28 3 4 31 5 29 34 6 30 7 32 5 3 33 11 2 1 12 35 8 9 13 10 37 38 40 15 36 14 45 39 16 47 41 48 18 17 42 49 43 51 46 44 52 19 53 54 20 55 21 22 24 57 56 26 23 25 50 27

#	Part Number	Partname	Quantity
1	BF5470	SCREW, FLAT HEAD	2
2	BF5471	WEIGHT, OUTER	2
3	BF5473	RING, RETAINING	2
4	BF5474	CRANKROD	1
5	BF5511	RING, RETAINING	2
6	BF5475	CRANK, ECCENTRIC	1
7	BF5476	BEARING, BALL	1
8	BF5477	PIN, OUTLET	1
9		O-RING (1)	1
10	BF5478	TUBE, PLUNGER	1
11	XA2790	SCREW, BUTTON HEAD	2
12	BF5480	BUSHING, WRIST PIN	2
13	BF5481	ANCHOR, WRIST PIN	1
14		WASHER, BACKUP (1)	1
15		SEAL, CUP (1)	1
16	XA2791	ROD, PLUNGER	1
17	BF5483	SPRING	1
18	LA0906	BALL, STEEL	1
19	XA2017	PLUNGER	1
20	XA2792	TUBE, RECIPRICATING	1
21		SEAL, CUP (1)	1
22		O-RING (1)	1
23	BF5486	CYLINDER	1
24	BF5487	CAGE, BALL	1
25	BF3823	BALL, STEEL	1
26		O-RING (1)	1
27	BF5488	SEAT, CHECK	1
28	BF5489	SCREW, SELF-TAPPING	6
29	BF5490	COVER, HOUSING	1
30		GASKET, COVER (1)	1
31		GASKET (1)	6
32	BF5492	SCREW, SOCKET HEAD	4
33	PC2436	SWITCH, OVERRIDE (2)	1
33	XA4127	SEAL KIT	1
34	C5769	PLUG, PIPE - 1/4"	1
35	PC1769	VALVE, FLOW CONTROL	1
35	BF5509	SEAL KIT	1
36	BF5510	FITTING, ORIFICE	1
37	XA2018	MANIFOLD	1
38	PC1770	VALVE, PRESSURE REDUCING	1
38	BF5508	SEAL KIT	1
39	BF5501	HOUSING, PUMP	1
40	BF5500	PLUG, PIPE	1
41		GASKET (1)	1
42	BF5498	MOTOR, HYDRAULIC (INCLUDES REF. NOS. 40 & 41)	1
43	XA2147	WASHER	2
44	BF5499	SCREW, SOCKET HEAD	2
45		O-RING (1)	2
46	BF5502	NUT	2
47		RING, BACKUP (1)	2
48		O-RING (1)	2
49		O-RING (1)	2
50	XA2148	STRAINER, INLET	1
51	BF5503	BEARING, BRONZE	1
52		O-RING (1)	1
53		WASHER, BACKUP (1)	1
54		O-RING (1)	1
55	XA2793	TUBE, HOUSING	1
56	BF5505	PLUG, SHOVEL	1
57	BF5506	RING, RETAINING	1
NS\|61	BF5513	NOTE: (1) NOT SERVICED SEPARATELY. INCLUDED IN	-1
NS\|62		BF5513 SOFT GOODS KIT.	-1
NS\|63		(2) SOLENOID NOT SERVICED SEPARATELY.	-1

Komatsu AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT parts catalog PDF

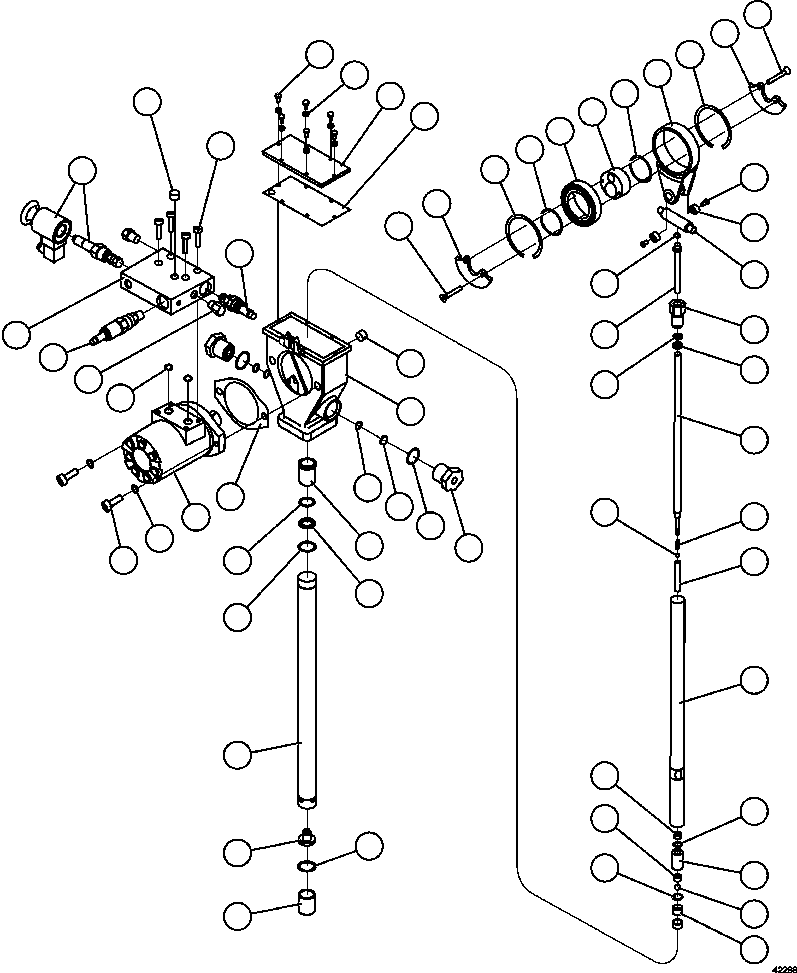

LUBE PUMP ASSEMBLY XA4126 (42288) in AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT. Diagram image and parts list.
