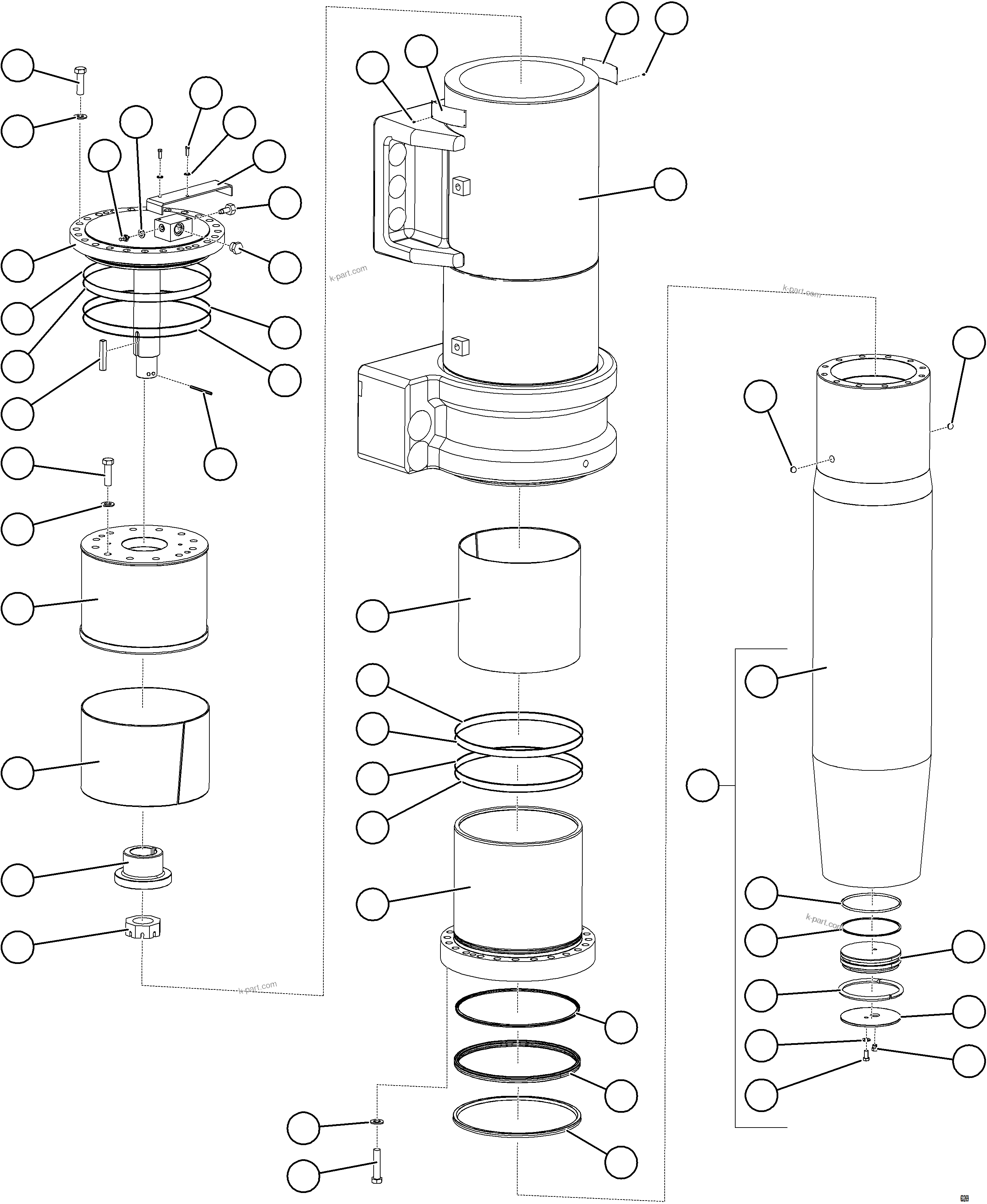

FRONT SUSPENSION ASSEMBLY 58F-50-00101 | AFE59-GN 930E-4 S/N A31993 CASSERONES

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE59-GN 930E-4 S/N A31993 CASSERONES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-50-40100	HOUSING	1
?	EH6541	CAP, SUSPENSION	1
?	WA0363	FLAT WASHER - 7/8" (HARDENED)	60
?	VN9105	CAPSCREW - 7/8" - 9NC X 3"	12
?	WA1282	RING, BACKUP (1)	4
?	WA5668	SEAL, O-RING (1)	4
?	58F-50-00210	RETAINER, UPPER BEARING	1
?	PC2413	BEARING, UPPER	1
?	EH6529	STOP, PISTON	1
?	VW4451	NUT	1
?	VC2629	LOCKPIN (1)	1
?	H2981	BALL, STEEL (1)	4
?	58F-50-00200	PISTON ASSEMBLY	1
?	58F-50-00300	PISTON	1
?	58B-50-00900	BOSS	4
?	EM3159	PLUG, PISTON	1
?	WA0443	SEAL, O-RING (1)	1
?	WA1443	RING, BACKUP (1)	1
?	EM1585	RING, RETAINER	3
?	EM1600	PLATE, RETAINER	1
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	1
?	VN9032	CAPSCREW - 1/2" - 13NC X 1"	1
?	VM0314	PLUG (1)	1
?	EJ2182	RETAINER, LOWER BEARING	1
?	PC2414	BEARING, LOWER	1
?	VN9141	CAPSCREW - 7/8" - 9NC X 4"	24
?	PB2194	CHARGING VALVE ASSEMBLY (1)/(2)	1
?	TR9993	CAP, VALVE	1
?	TD7179	CORE, VALVE	1
?	TF1144	O-RING, HOUSING	1
?	WA0052	O-RING, VALVE STEM	1
?	VD5076	GASKET, FLAT (1)/(2)	1
?	TY8879	PLUG, VENT (1)	1
?	TZ8637	PLUG	1
?		(NOT USED IN THIS APPLICATION)	1
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	2
?	DF3042	FLAT WASHER - 3/8"	2
?	PC0470	SEAL, BUFFER (1)	1
?	PC0469	SEAL, DOUBLE LIP (1)	1
?	PC0471	SEAL, WIPER (1)	1
?	WA2892	PLATE, DANGER	2
?	R1073	DRIVE SCREW - #6 X .187	8
?	EH6536	KEY	1
?	VN9161	CAPSCREW - 7/8" - 9NC X 4"	24
?		NOTE: NS = NOT SHOWN	-1
?	AK4063	SUSPENSION OIL MIXTURE (5 GAL)	6
?	AK4064	SUSPENSION OIL MIXTURE (55 GAL)	1
?	58F-FS-AK020	NOTE: (1) INCLUDED IN 58F-FS-AK020 FRONT SUSPENSION	-1
?		OVERHAUL KIT.	-1
?	RK1887	(2) INCLUDED IN RK1887 CHARGING VALVE KIT.	-1
